Oracle Database Appliance X6-2-HA User Manual

Remove Disk Midplane Module
178 Oracle Database Appliance Service Manual • June 2017
5.

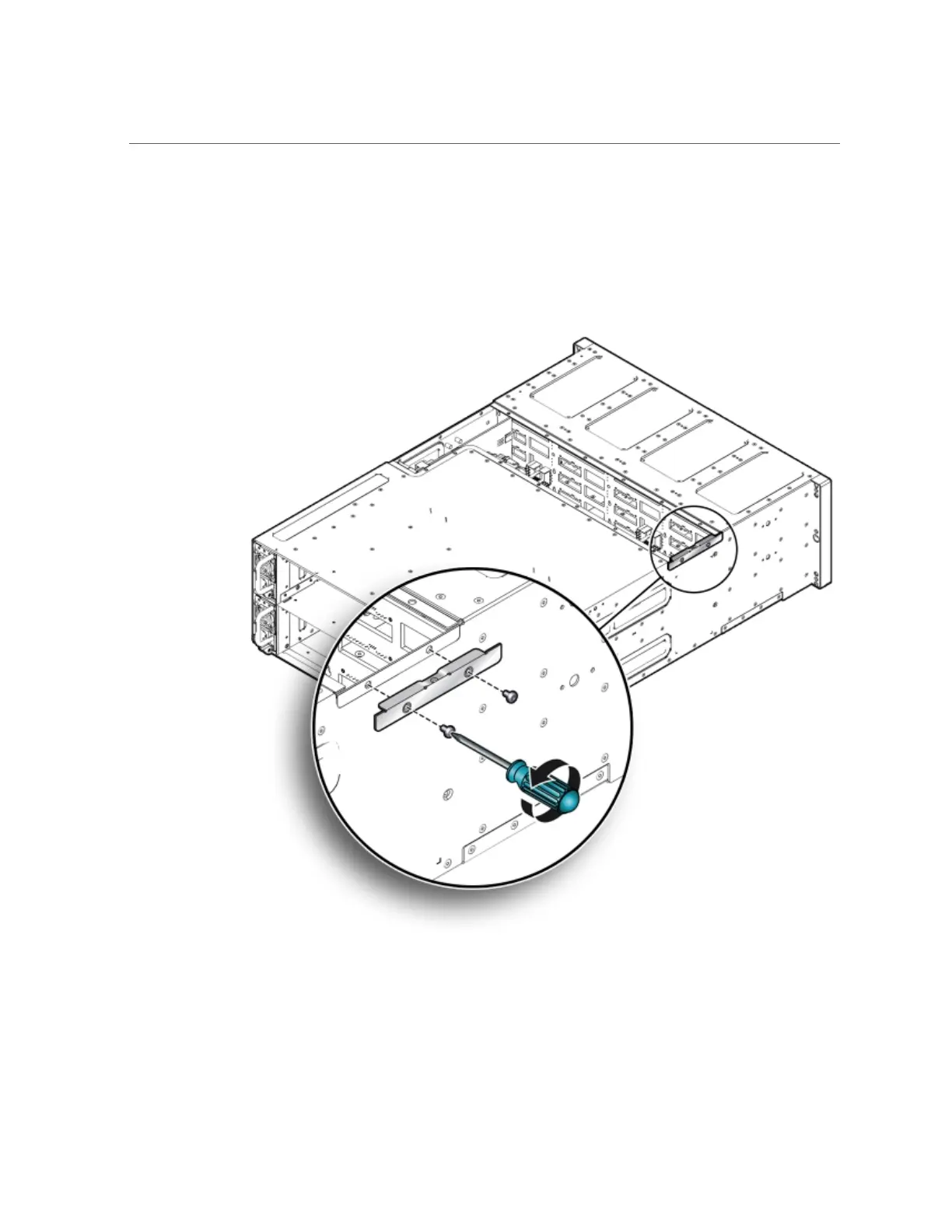

Loosen the two captive Phillips screws that secure the side-wall cover to the
chassis and remove the cover.
The side-wall cover is positioned under the middle section of the system top cover. Before you
can remove the side-wall cover, you must remove the middle section of the system top cover.
6.
Remove the power distribution board.
See “Remove Power Distribution Board” on page 172.
7.
Remove the disk midplane module.

Oracle Database Appliance X6-2-HA Specifications

General

Brand	Oracle
Model	Database Appliance X6-2-HA
Category	Storage
Language	English
