Install PCIe Card Cables for Primary HBA PCIe Card
194 Oracle Database Appliance Service Manual • June 2017

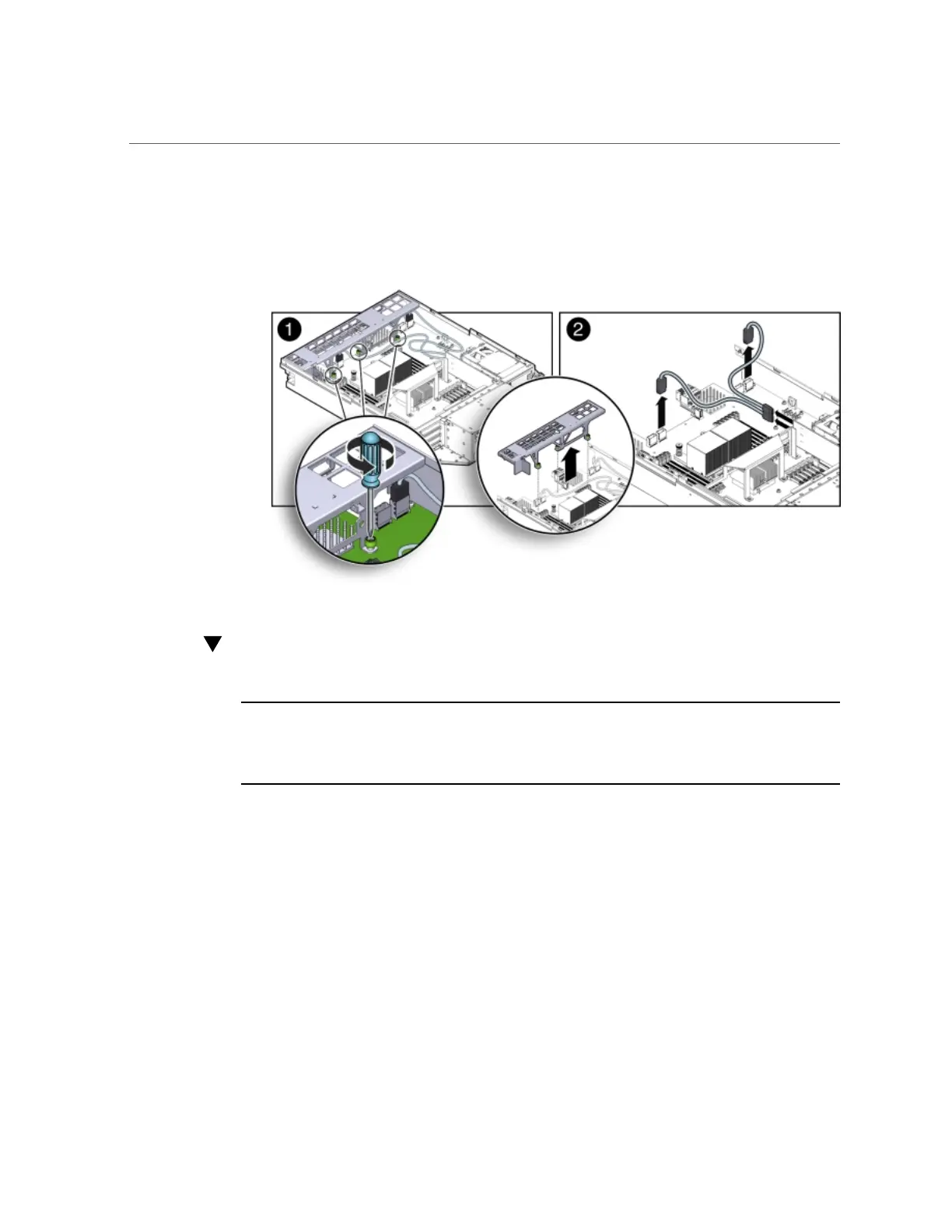

To remove each cable connector, push the connector inward, press down on the connector
to release it, and pull the connector out.
Install PCIe Card Cables for Primary HBA PCIe Card
Note - Information in this appendix does NOT apply to Oracle Database Appliance X3-
2, Oracle Database Appliance X4-2, Oracle Database Appliance X5-2 or Oracle Database
Appliance X6 series. Refer to the preceding chapters in this document for information on
servicing those systems.
This section describes installing PCIe card cables in Oracle Database Appliance Version 1.
1.
Reconnect the PCIe card cables.
a.
Reconnect the two PCIe card cables to the primary HBA PCIe card and the
connectors on the motherboard [2].
Notice that there are two sets of connectors on the motherboard. Be sure to connect the
cables to the connector on the right in each set (looking at the connectors from the rear of
the server node).
b.
Position the server node's front cover onto the server node and tighten
the three green, captive Phillips screws that secure the server node's front
cover to the motherboard [1].
