Install Boot Disk Backplane Cables
AppendixA • Servicing the Oracle Database Appliance Version 1 203

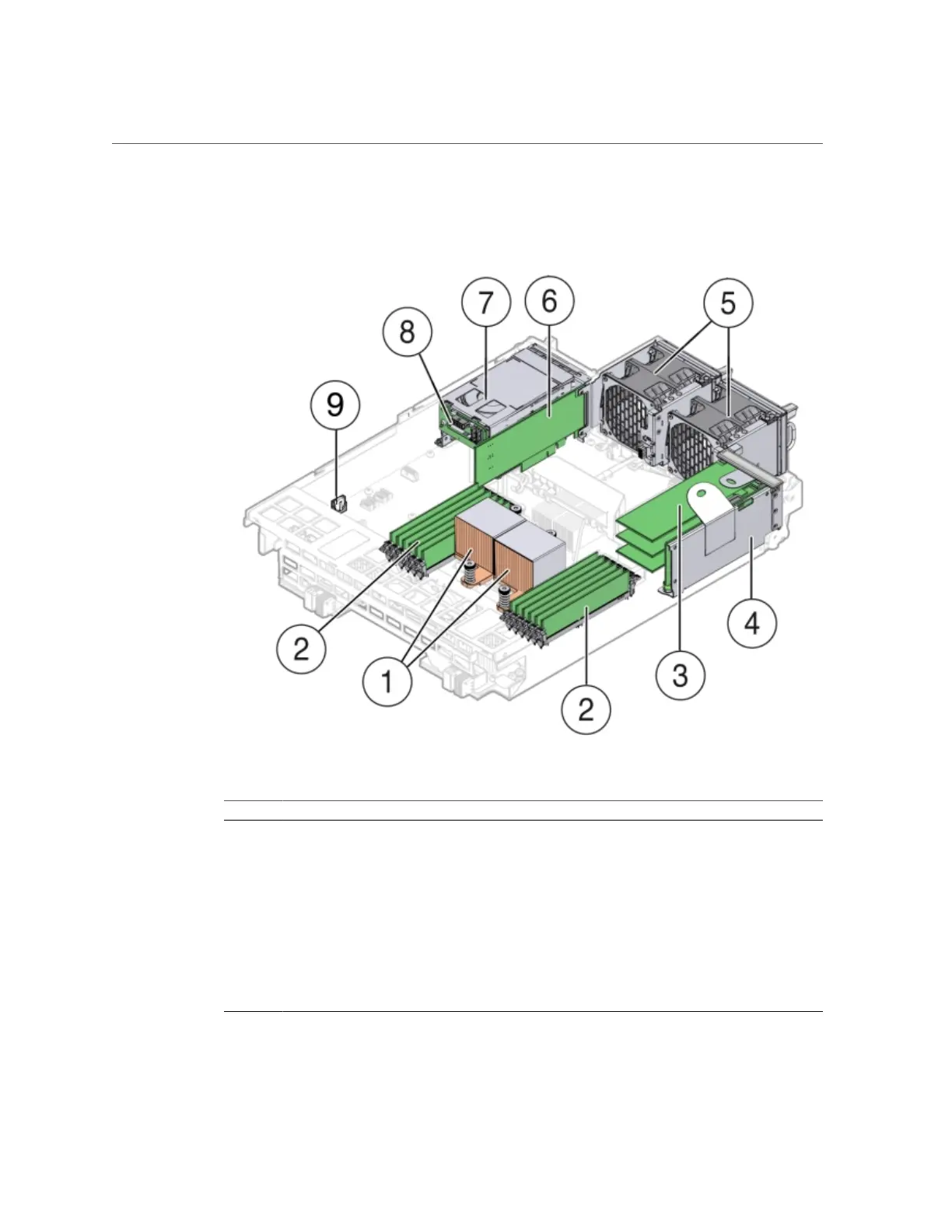

The following figure shows the components that must be removed from the server node.
Callout Description
1 CPUs and Heatsinks
2 Memory modules (DIMMs)
3 PCIe Cards mounted on the PCIe Riser
4 PCIe Riser
5 Fan Modules (2)
6 Internally Mounted PCIe Card
7 Boot Disk Drives (2)
8 Boot Disk Drive Backplane
9 Battery
