Oracle Database Appliance X6-2-HA Status Indicators
Chapter1 • Overview of System Status Indicators and LEDs 23

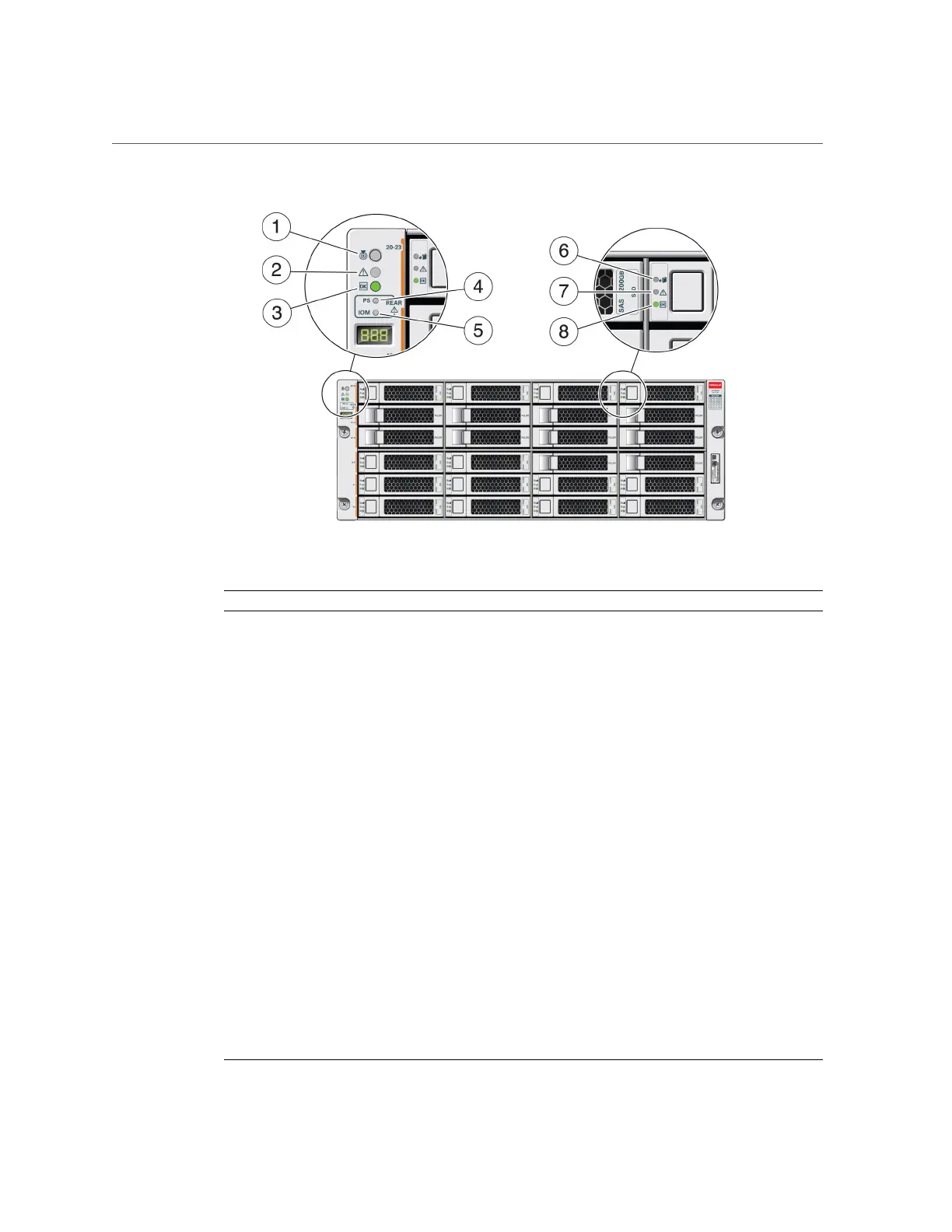

Callout Indicator/LED: Color State Meaning
1 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
2 Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the storage shelf.
3 OK: green ■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
4 Power Supply fault indicator:
amber
■ On – Indicates a fault with a power supply. View the LEDs at the
back of the storage shelf to determine which power supply has
the fault.
■ Off – Normal operation.
5 SAS I/O Module fault indicator:
amber
■ On – Indicates a fault with a SAS I/O module. View the LEDs at
the back of the storage shelf to determine which module has the
fault.
■ Off – Normal operation.
6 Ready-to-Remove: blue ■ On – The storage drive can be safely removed during a hot-plug
operation.
■ Off – The storage drive has not been prepared for removal.
7 Drive Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
8 Power/Activity: green ■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
