Oracle Database Appliance X6-2-HA User Manual

Oracle Database Appliance X6-2-HA Status Indicators
24 Oracle Database Appliance Service Manual • June 2017
Callout Indicator/LED: Color State Meaning
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Storage Shelf Back Panel Status Indicators

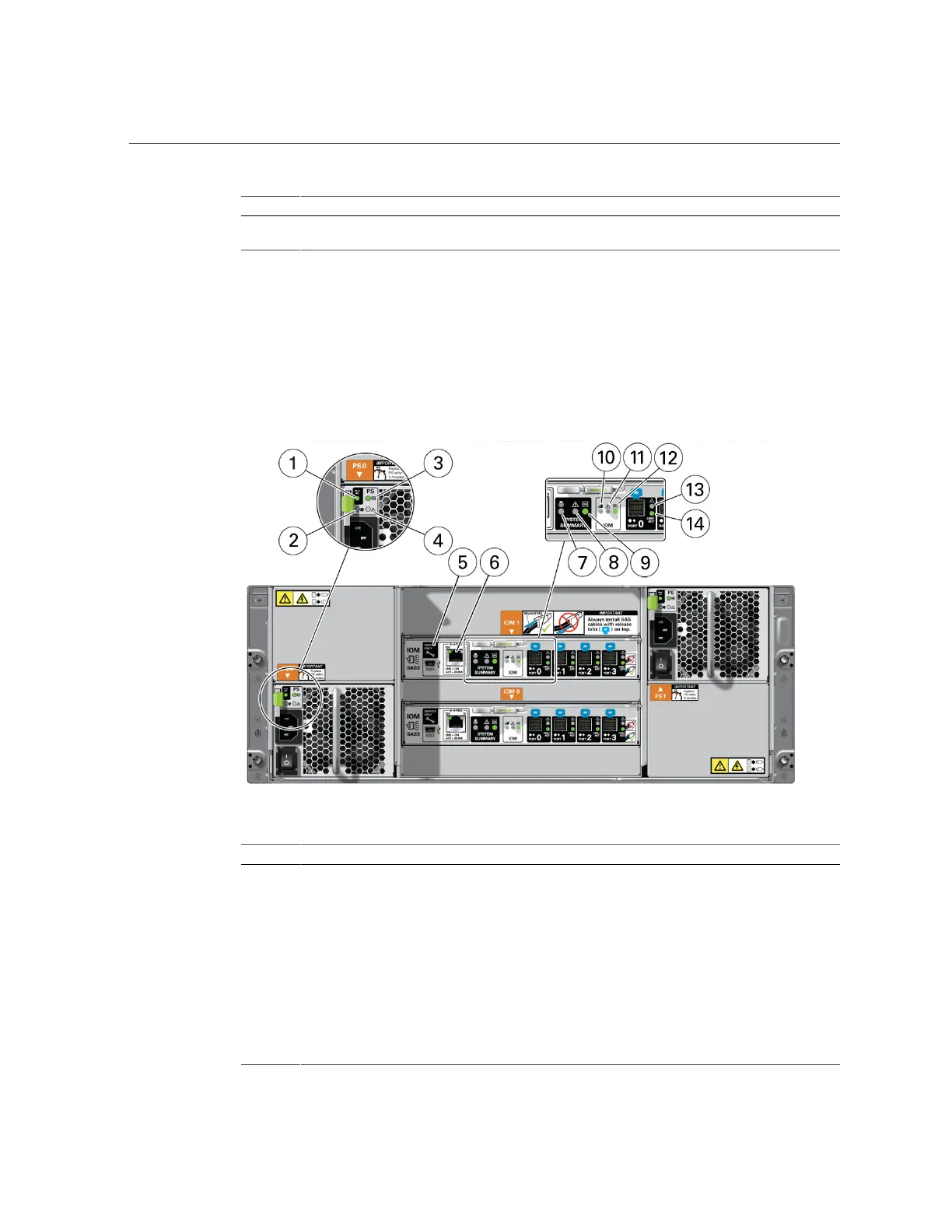

The following figure shows the controls and indicators on the Oracle Database Appliance X6-2-
HA storage shelf (DE3-24C) back panel and drives.
Callout Indicator/LED: Color State Meaning
1 AC power fault indicator: amber ■ On – Indicates an AC power fault.
■ Off – Normal operation.
2 Fan fail indicator: amber ■ On – The fan is faulty.
■ Off – Normal operation.
3 Power supply status indicator:
green
■ On – The power supply is operating normally.
■ Off – The power supply is unplugged or turned off.
4 DC power fail indicator: amber ■ On – The power supply is faulty.
■ Off – Normal operation.
5 Reserved This port is reserved for Oracle Service.
6 Network port (reserved) This port is reserved for Oracle Service.
