Replace the Internal SAS HBA Card
84 Oracle Database Appliance Service Manual • June 2017

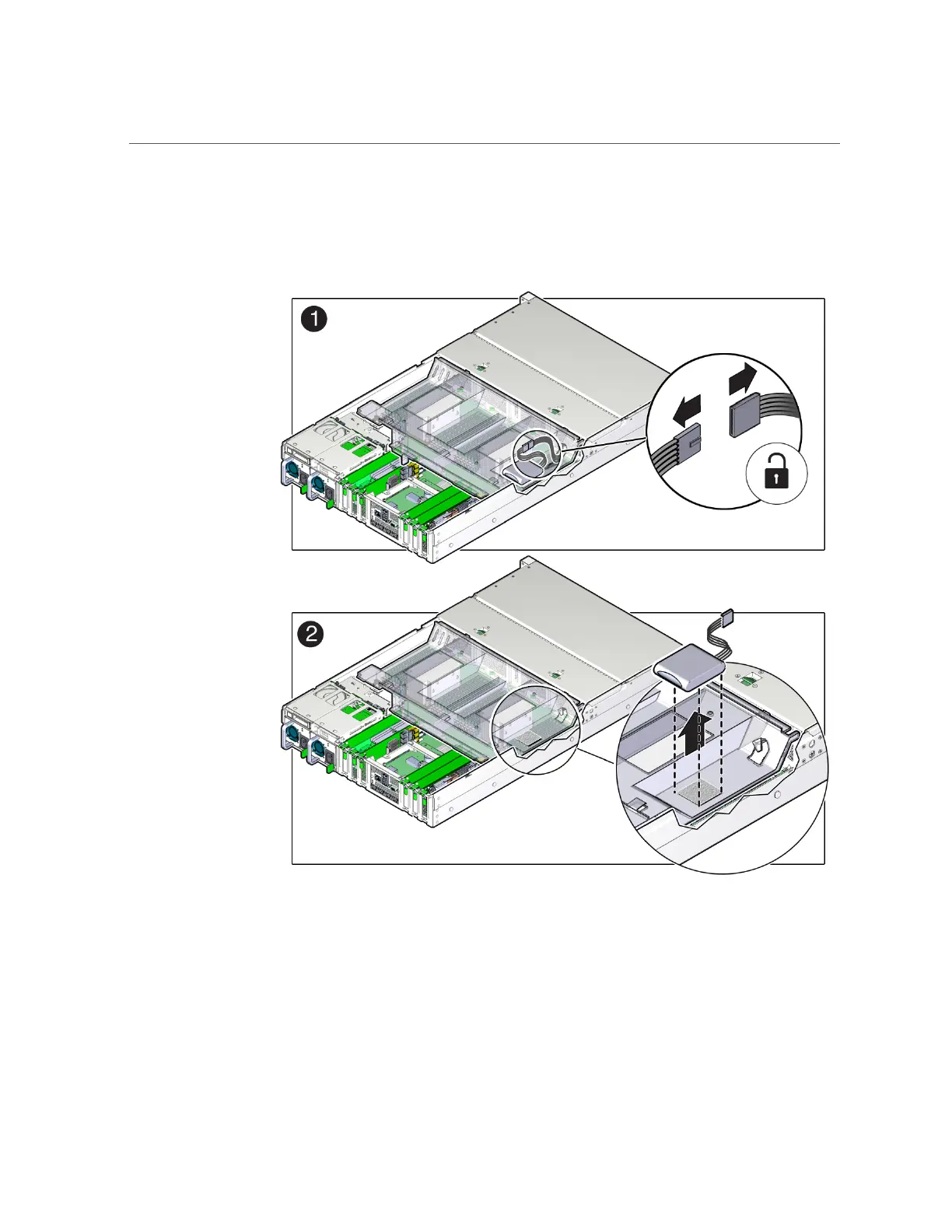

The HBA super capacitor is secured to the air baffle by a recloseable fastener, which
allows it to be easily removed and replaced.
b.
To separate the HBA super capacitor from the air baffle, place your finger
under the rear of the super capacitor and lift up [2].
3.
Swivel the air baffle into the upright position to allow access to the super
capacitor cable and the SAS HBA card.
