Attach Tool-less Slide-Rail Assemblies
2.

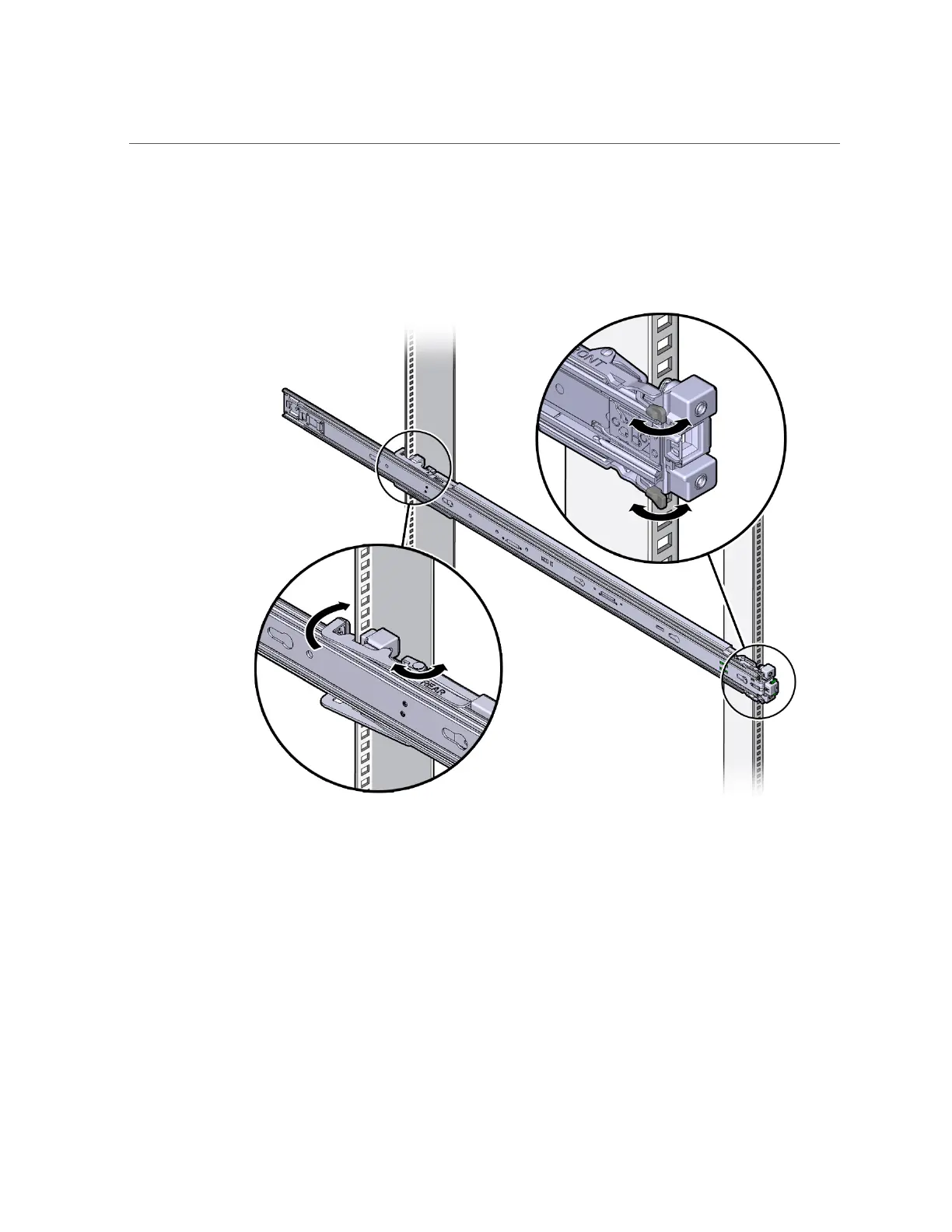

Starting with either the left or right side of the rack, align the rear of the slide-
rail assembly against the inside of the rear rack rail, and push until the assembly
locks into place with an audible click.
3.
Align the front of the slide-rail assembly against the outside of the front rack rail,
and push until the assembly locks into place with an audible click.
4.
Repeat Step 1 through Step 3 to attach the slide-rail assembly to the other side
of the rack.
Related Information
■
“Install Mounting Brackets Onto the Server” on page 30
36 SPARC S7-2 Server Installation Guide • July 2016
