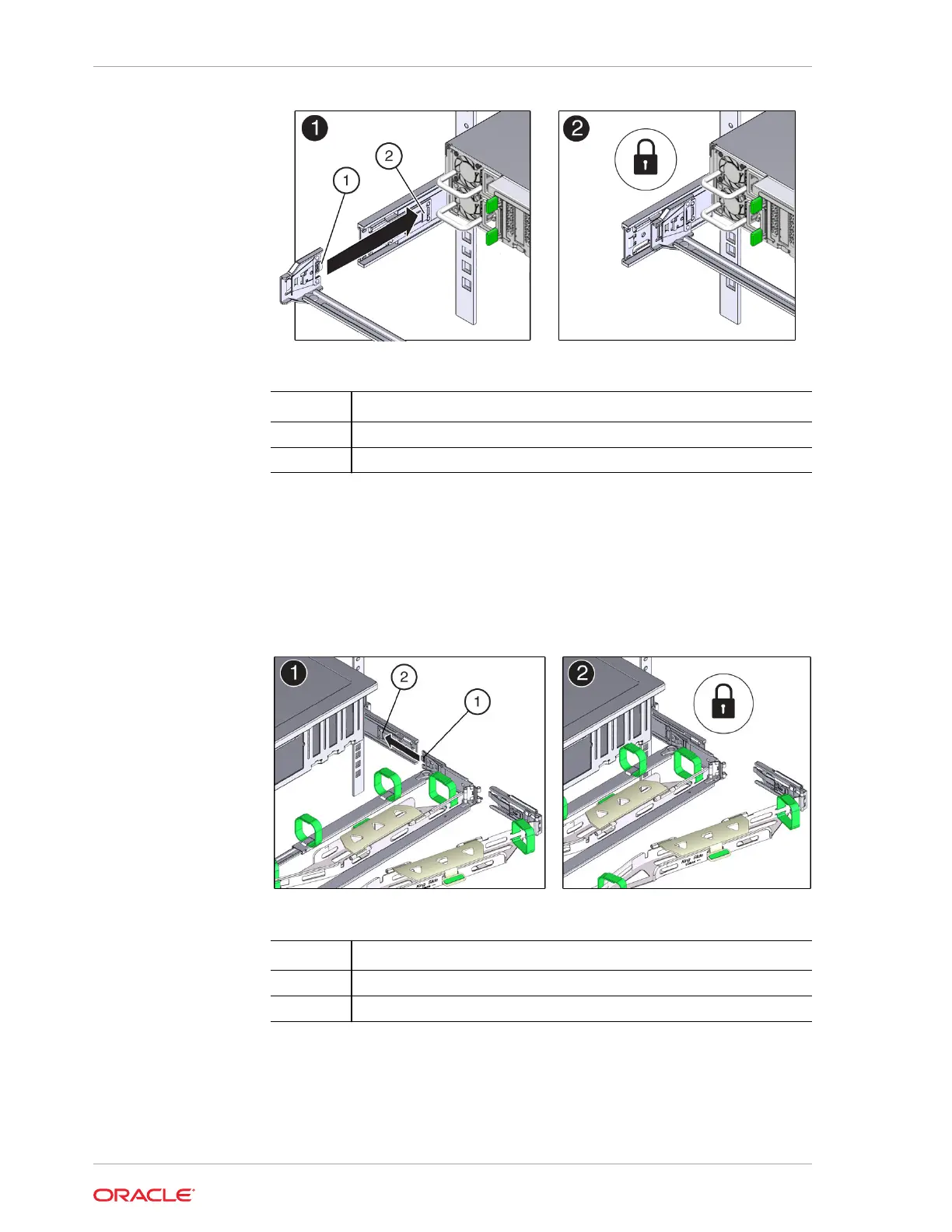

Callout Description

1 Connector A tab

2 Left slide-rail front slot

7. To install CMA connector B into the right slide-rail:

a. Insert CMA connector B into the front slot on the right slide-rail until it locks

into place with an audible click, frames [1] and [2].

The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).

b. Gently tug on the right side of the front slide bar to verify that connector B is

properly seated.

Callout Description

1 Connector B tab

2 Right slide-rail front slot

8. To install CMA connector C into the right slide-rail:

a. Align connector C with the slide-rail so that the locking spring (callout 1) is

positioned inside (controller side) of the right slide-rail, frame [1].

Chapter 5

Installing an Oracle ZFS Storage ZS7-2 Cable Management Arm

5-8
