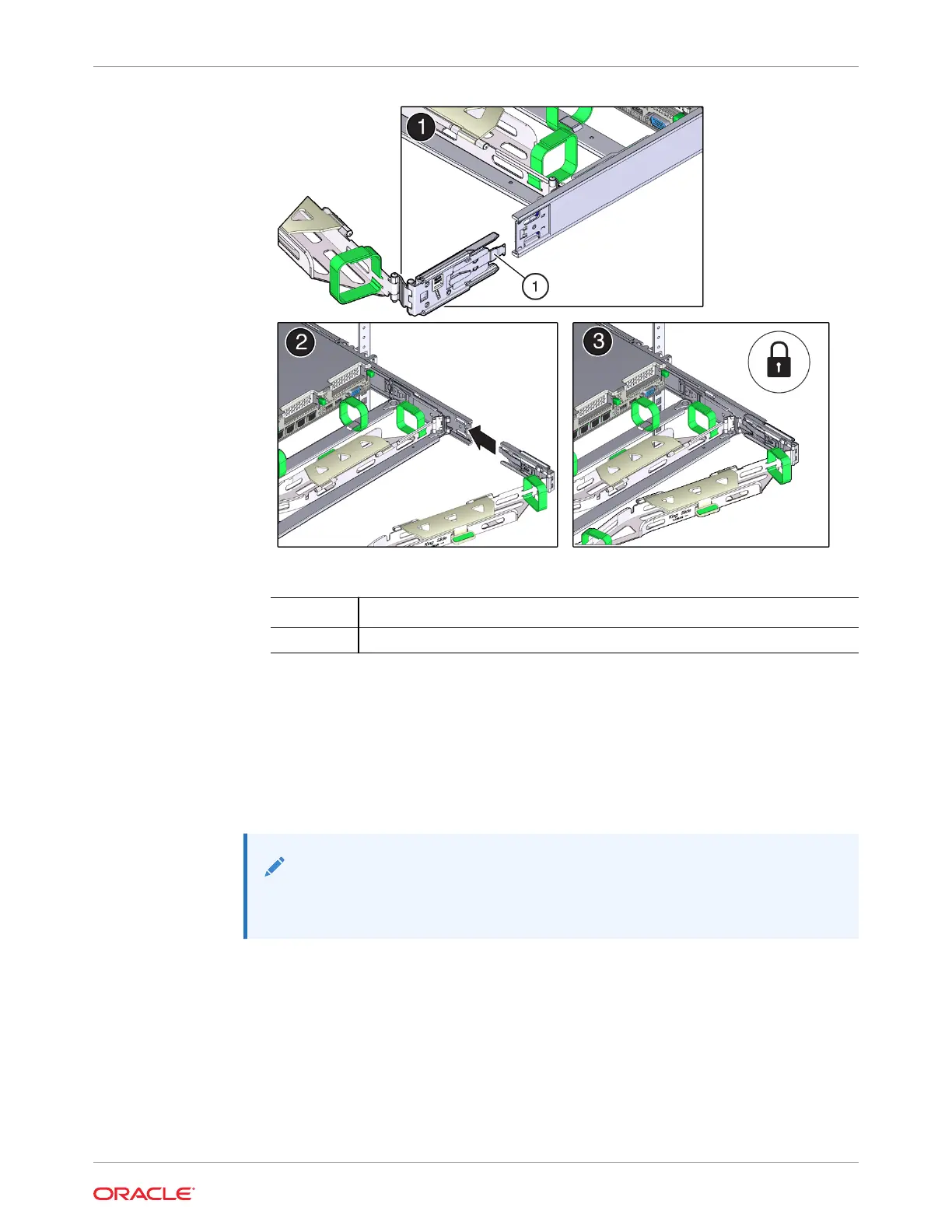

Callout Description

1 Connector C locking spring

b. Insert connector C into the right slide-rail until it locks into place with an audible click,

frames [2] and [3].

c. Gently tug on the right side of the CMA back slide bar to verify that connector C is

properly seated.

9. To prepare CMA connector D for installation, remove the tape that secures the slide-rail

latching bracket to connector D, and ensure that the latching bracket is properly aligned

with connector D, frames [1] and [2].

Note:

The CMA is shipped with the slide-rail latching bracket taped to connector D.

You must remove the tape before you install this connector.

Chapter 5

Installing an Oracle ZFS Storage ZS7-2 Cable Management Arm

5-9
