a. Orient the rail so that the stamped label (LEFT or RIGHT) is facing the inside
of the rack.

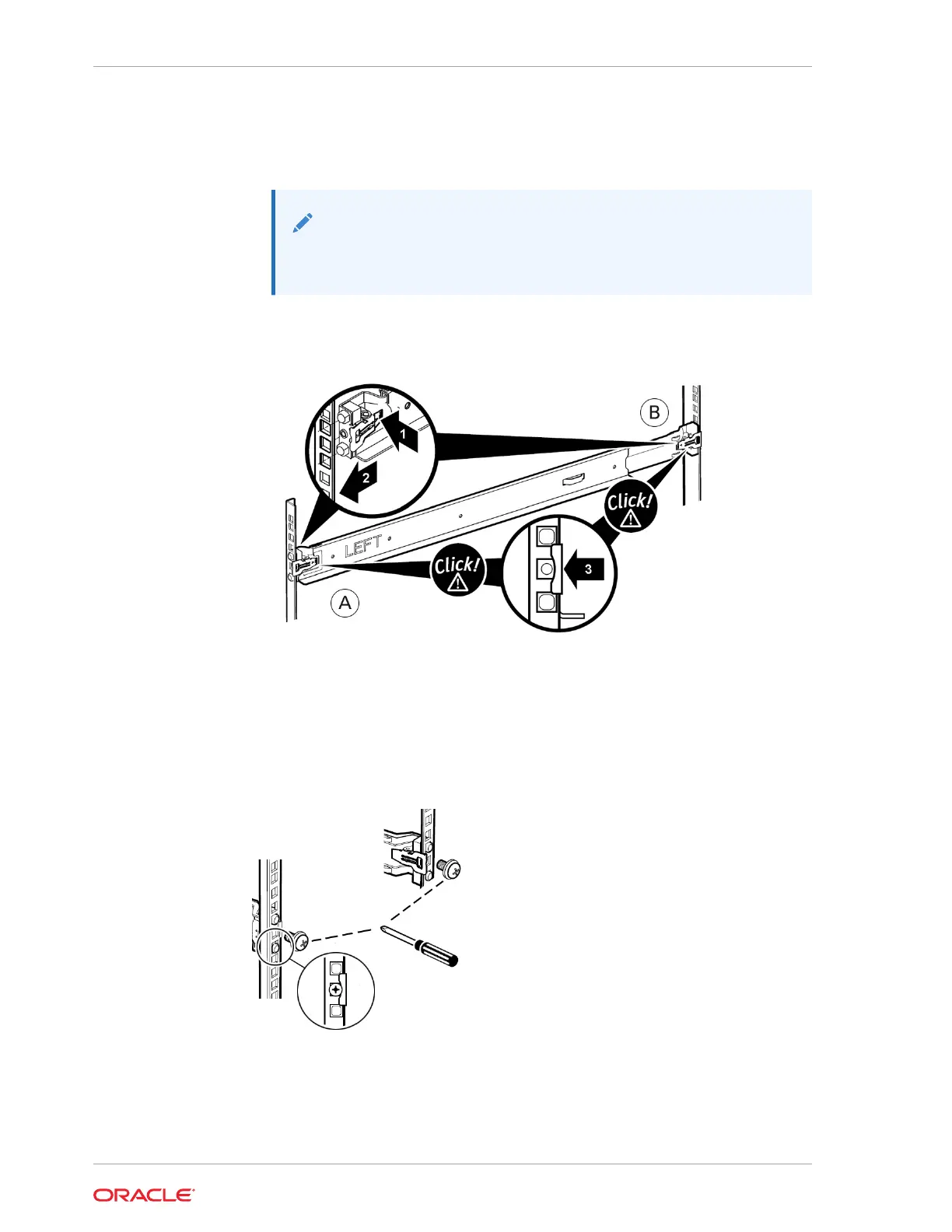

b. Adjust the rail length to fit the front and rear of the rack, [A] and [B].
Note:
Mark which rack rail holes you will be using to ensure the shelf rails
are installed evenly.
c. Press and hold open the clamp lever on each rail end [1], and insert both rail
ends into the appropriate rack holes [2].
d. Close the rail clamps over the rails by releasing the clamp lever [3].
You will hear an audible click as the clamps lock in place over the rack rails.
e. Repeat steps a through d for the second rail.
4. Install one screw through the rack and into the rear of each rail.
5. Install the front cage nuts.
Chapter 3
Installing an Oracle Storage Drive Enclosure DE3-24C Disk Shelf
3-6
