range Pi 用户手册 深圳市迅龙软件有限公司版权所有
www.orangepi.cn
6
www.xunlong.tv

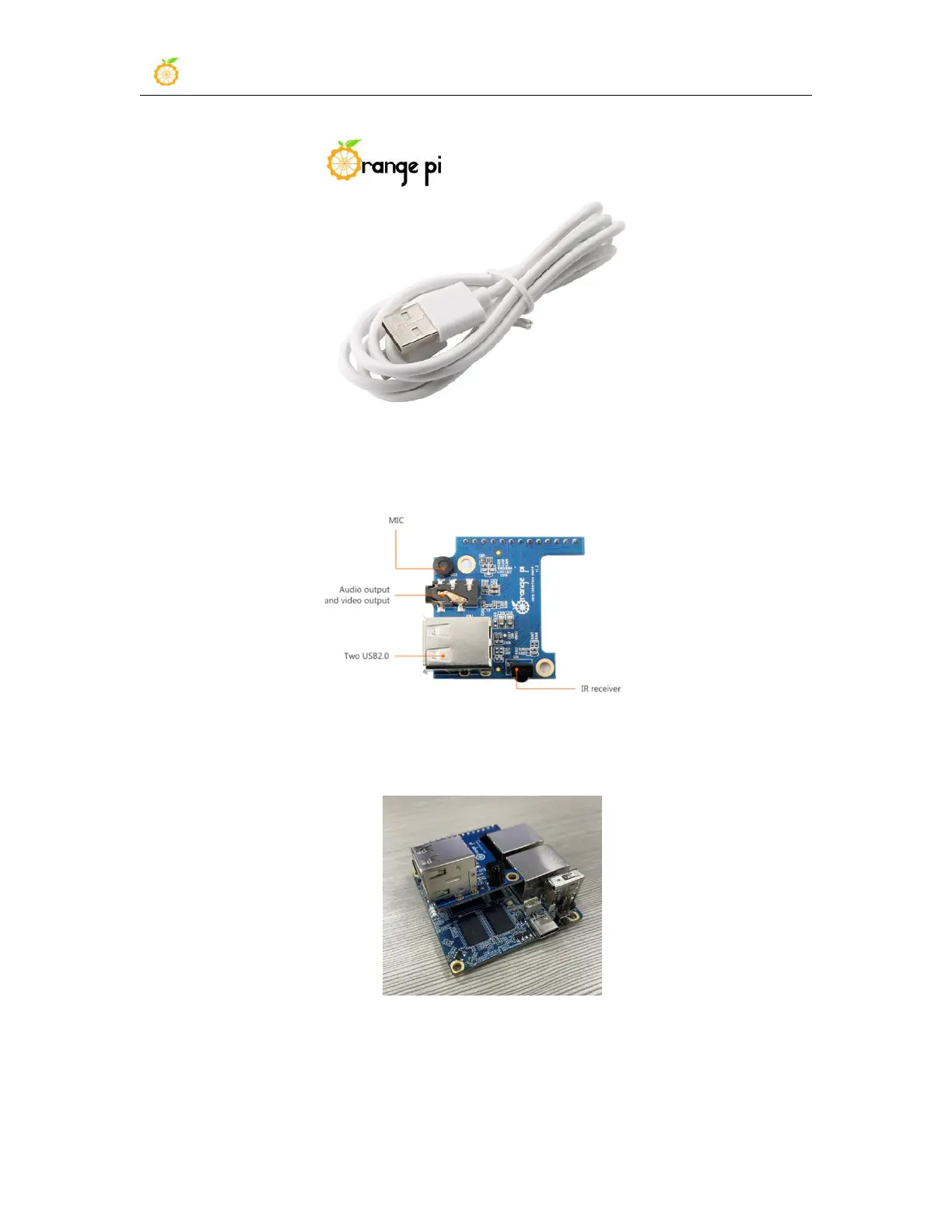

4) 13pin interface board
a. The actual interface board is shown below
b. The way to insert the interface board into the development board is as follows,
remember not to insert it backwards
c. The 13pin header on the Orange Pi R1 Plus development board can be connected
to the interface board to expand the functions that are not on the development
board. The functions included in the interface board are:
