microphone
not support
2
Analog audio and video
output interface
Connect TV through AV cable to output analog audio
and video signals (Android system only)
3
USB2.0 x 2
not support
4
IR receiving function
Android system can be controlled by IR remote control

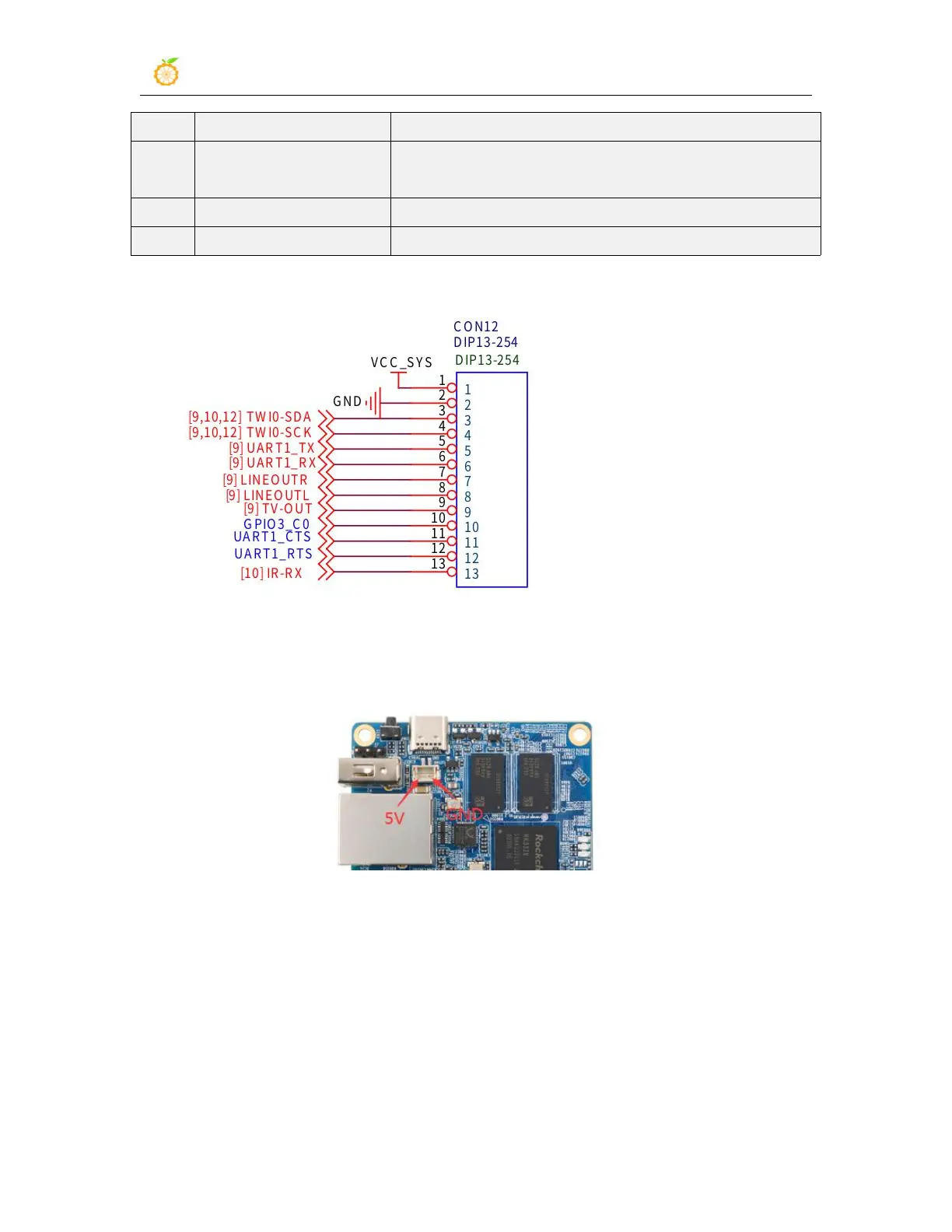

d.The schematic diagram of the 13pin header of Orange Pi R1 Plus is shown
below
5) CPU fan, used to dissipate heat to the CPU, the interface voltage is 5V, the
interface specification is 2pin, 1.5mm spacing
6) IR remote control, mainly used to control Android system
