WARNING:
The timer must be fixed to the support plate after assembling the
scissors arm (see paragraph 6.3.3).
6. Remove the plastic timer cover (10 - Figure 6-3) by loosening the two
sealing screws (12 - Figure 6-3) placed on the top.
To make the operation easier, disconnect all cables connecting the
timer and the plastic cover.
7. Fix the timer onto the support plate with the two screws (14 - Figure
6-3) taking care to thread the supply cable and the cables coming
from the scissors arm inside the hollow one (15 - Figure 6-3). Check
that the upper level is level using a bubble level.
10
8
15
12
9
9
14
14

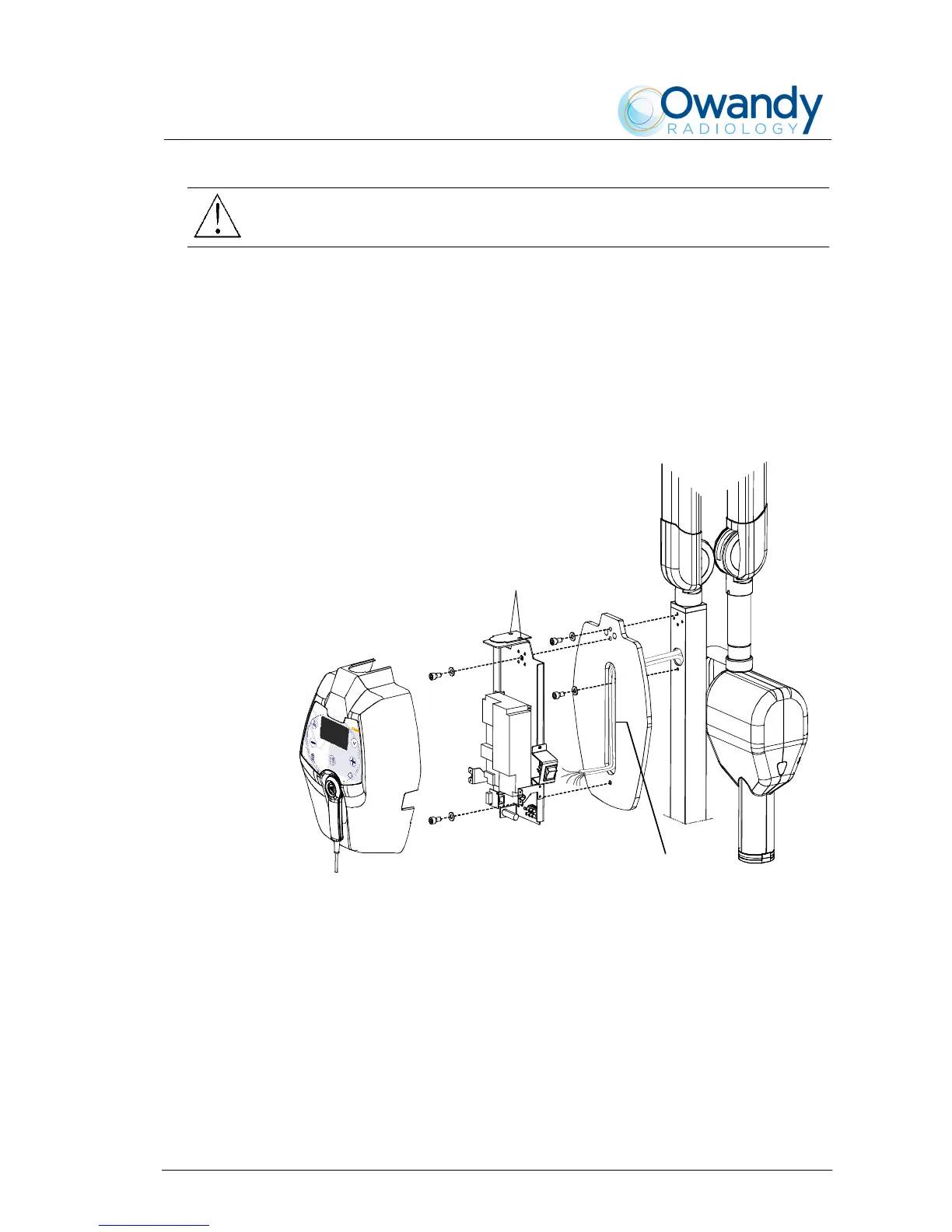

Figure 6-3
