6.3.3 Assembling the stand arms set
1. Loose the two screws (1 - Figure 6-13) to allow the positioning of the
scissors arm.
2. Assemble the scissors arm (there is no extension arm in this
configuration), being careful to insert the spacer (2 - Figure 6-13) into
the rotation pin. The spacer (code 6161305600) is included in the
mounting hardware packaging.
NOTE:
Be sure that the two pins are inserted into the spacer as showed in the
drawing.
NOTE:
Keep the arm perfectly orthogonal to the pole when inserting the
extension arm rotation pin.
Do not release the scissors arm from their sealing packing.
3. Secure the arm tighten the two screws (1).
2
1

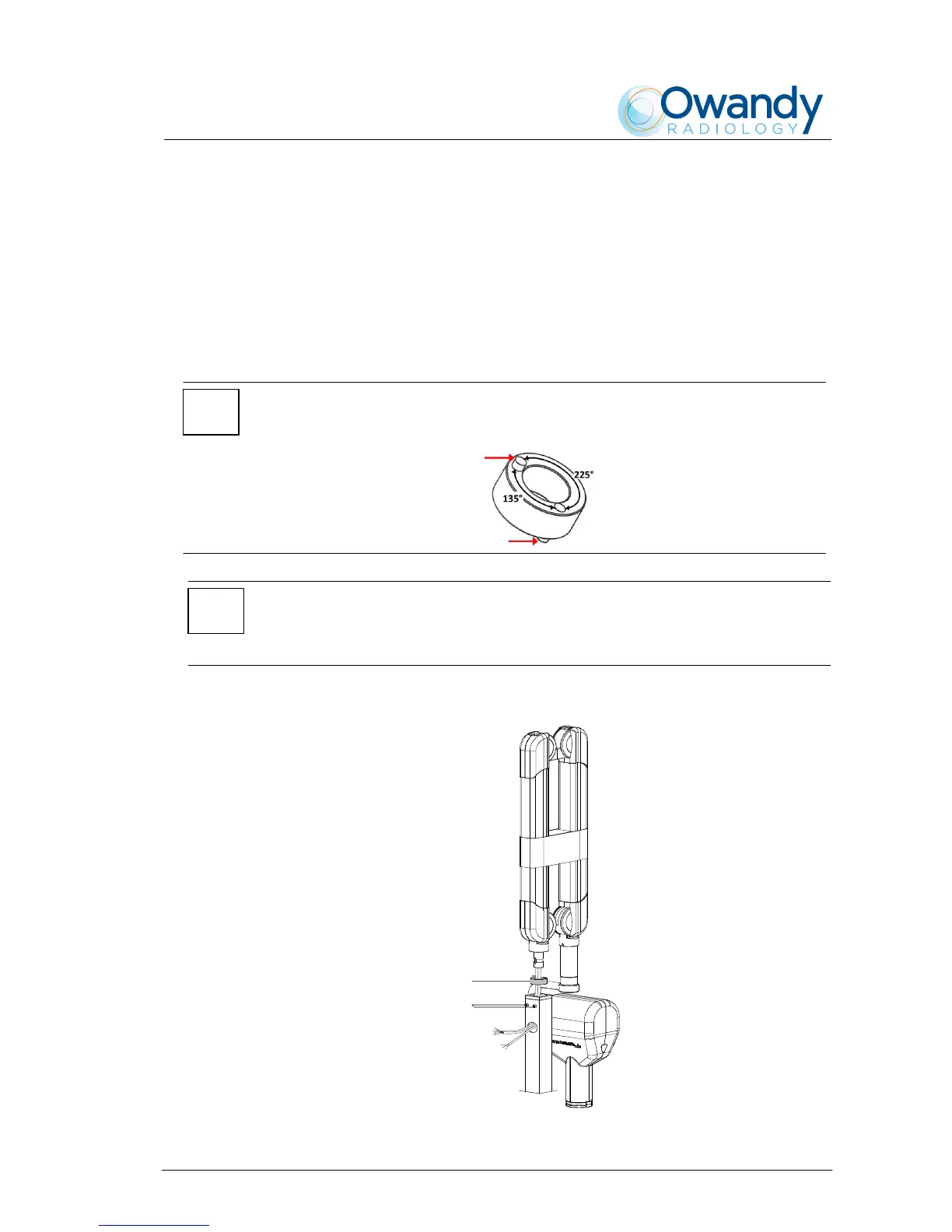

Figure 6-13
