6.2 Assembling the mobile stand and timer installation
1. Cross the two base tubes (1 - Figure 6-2) into the provided cut, fixing
them together with the screw (2 - Figure 6-2) and relevant nut (3 -
Figure 6-2). Do not tighten the screw completely.
2. Position the base plate (4 - Figure 6-2) and fix it with the four screws
(5 - Figure 6-2). If necessary, reposition the two base tubes (1 -
Figure 6-2) slightly in order to align the relevant holes on the plate.
3. Lock the nut (3 - Figure 6-2) in order to block the base tubes (1 -
Figure 6-2) permanently.
4. Assemble the stand column (6 - Figure 6-2) on the base plate (4 -
Figure 6-2) with the four screws (7 - Figure 6-2).
1
2
4
5
6
7
3

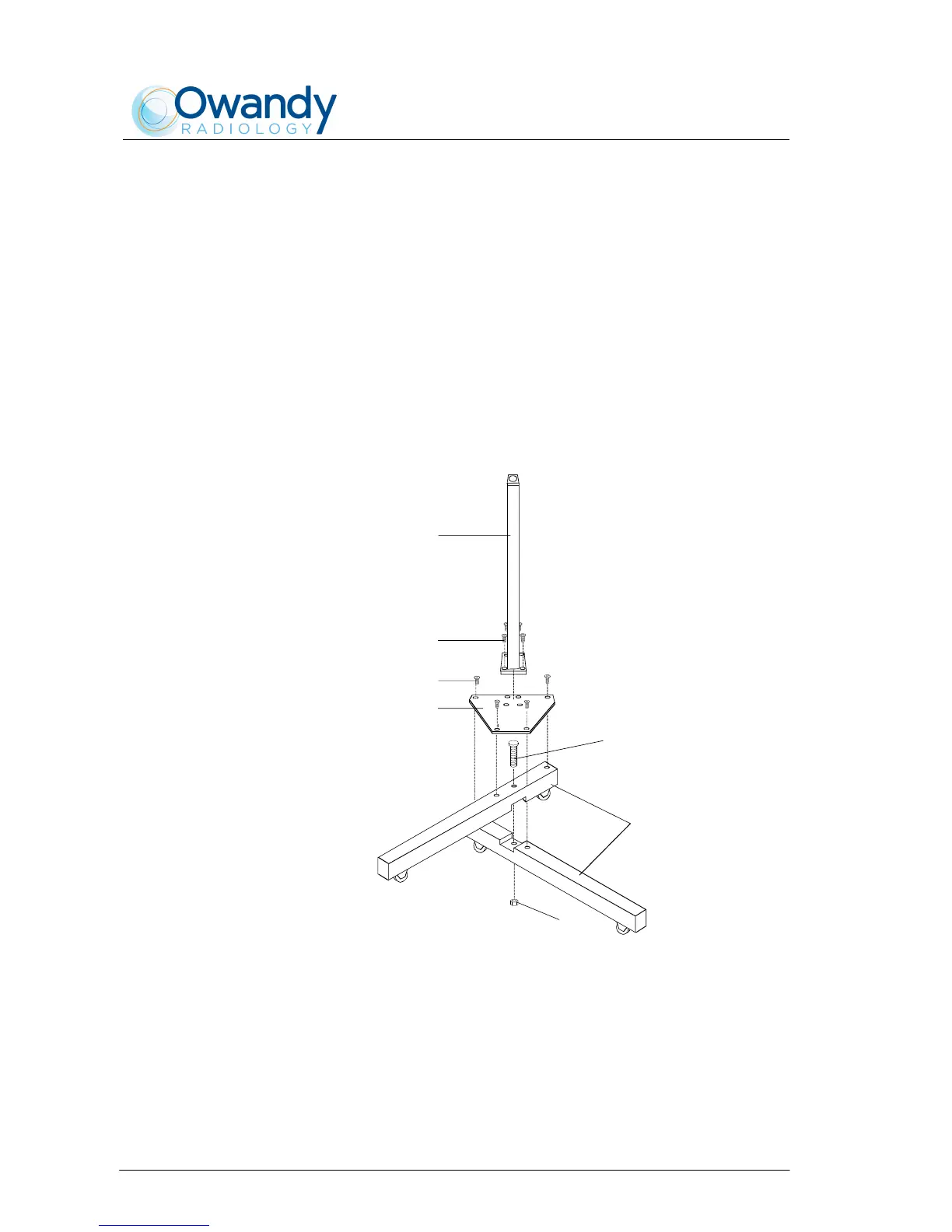

Figure 6-2
5. Assemble the timer support plate (8 - Figure 6-3) to the stand
column, fixing it with the two screws (9 - Figure 6-3) present on the
stand column.
