Owandy RX - Page 44

SERVICE MANUAL
Installation
(Rev. 1) Ow-RX
37

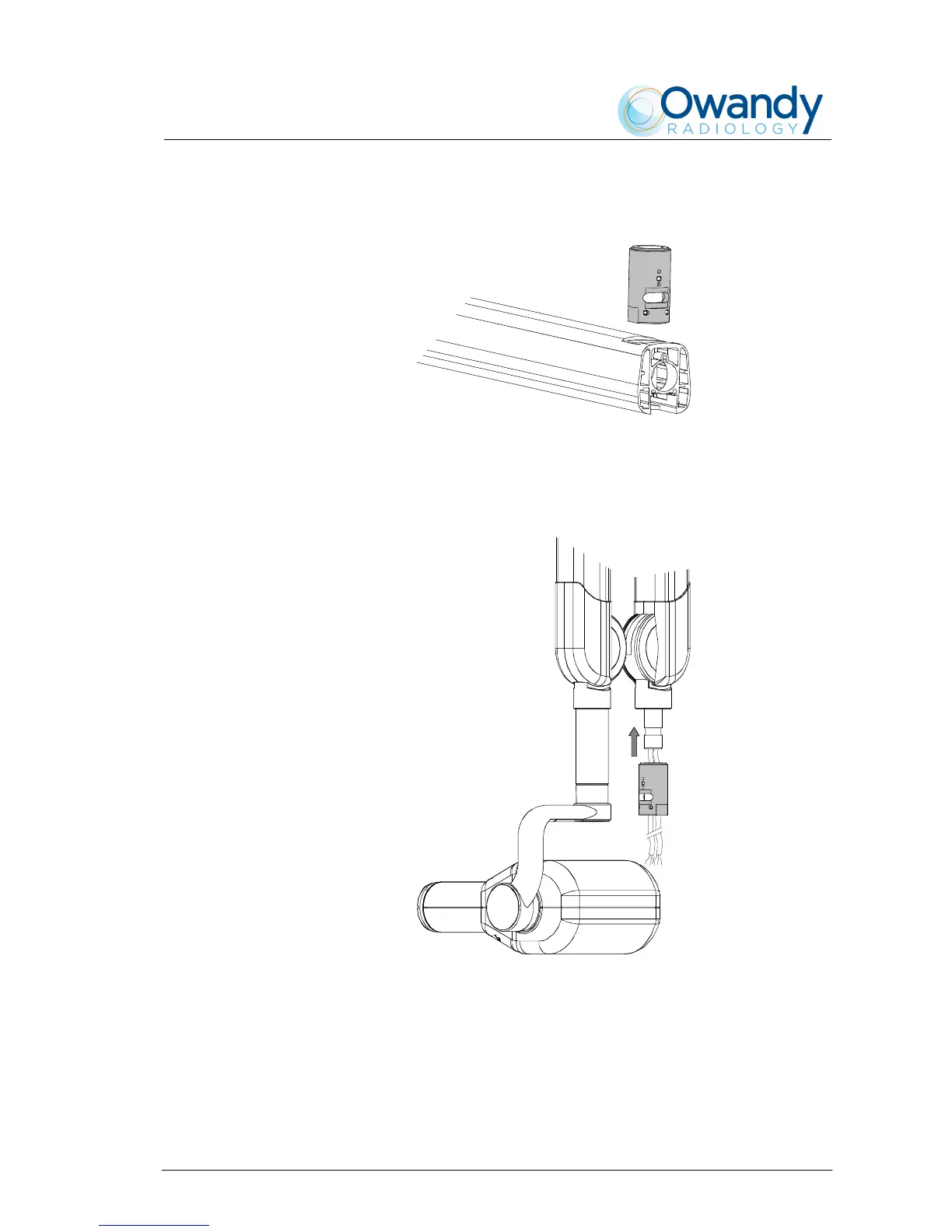

3. Remove the fixing bushing. This operation will permit an easier
insertion of the scissor arm group into the extension arm.
Figure 6-7
4. Insert the extension arm pin in the bushing; during insertion take
care to the O-Rings present in the bushing. The friction group fixing
holes must be toward tube head support.
Figure 6-8
