NOTE:
The following operations must be done with the scissors arm completely
open.

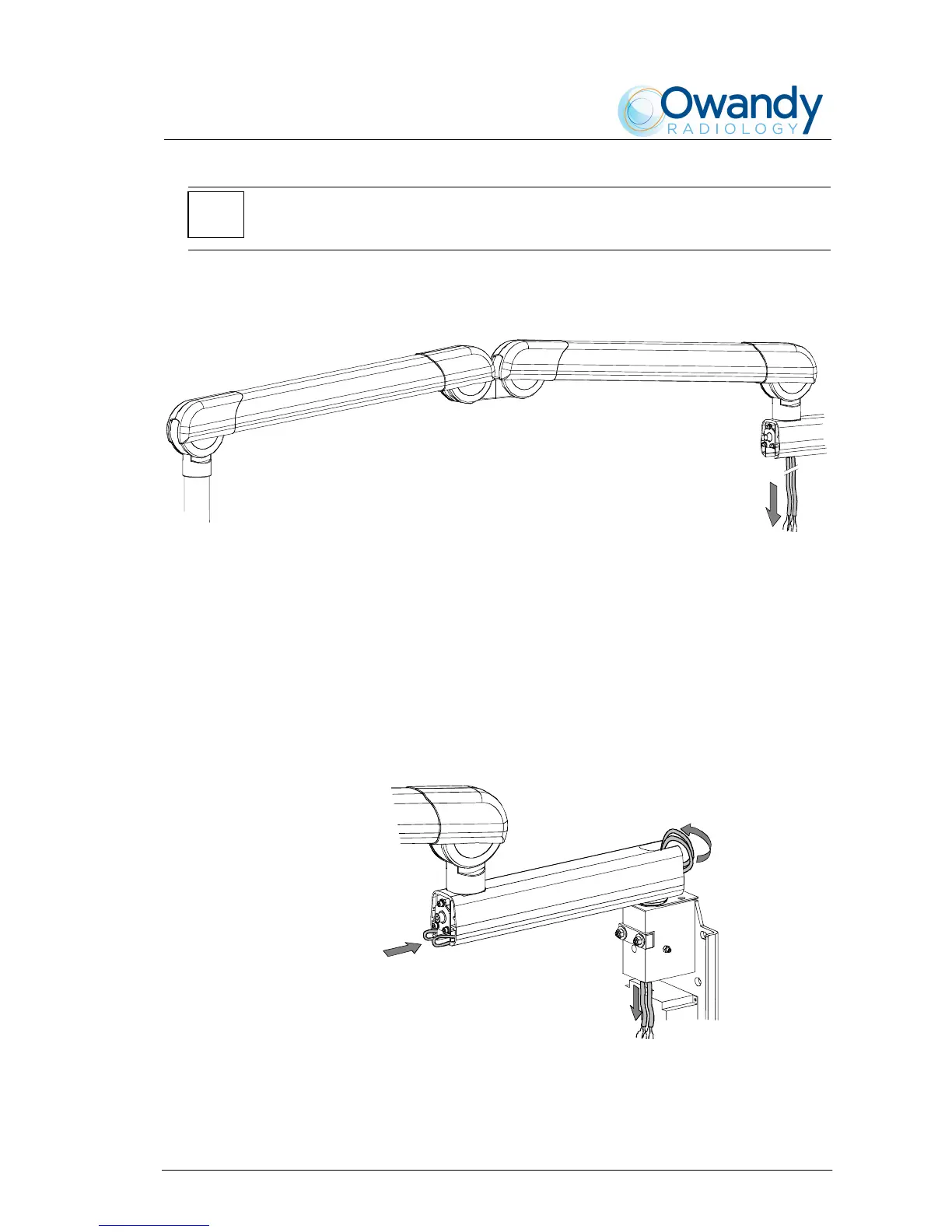

8. Holding this position, gently pull the cables coming from the scissors
arm down to avoid excess cable in the arms.
Figure 6-10
9. Insert the cables inside the extension arm (power cable on one side
and filament cable and the grounding cable on the other side)
following the drawing in Figure 6-11 (fase 1); this will make sure that
the cables are not tensioned during use. To make this easier, wrap
together the grounding and filament cables with tape.
10. Run the cables inside the extension arm until they come completely
out at the opposite end.
11. Insert the cables inside the rotation pin as shown in the following
figure (fase 2 and 3).
1
2
3
Figure 6-11
