3.Junior User Guidebook
5
Introduction to the Structure of the Oscilloscope
This chapter makes a simple description of the operation and function of the front
panel of the oscilloscope, enabling you to be familiar with the use of the
oscilloscope in the shortest time.
Front Panel
The front panel has knobs and function buttons. The 5 buttons in the column on
the right side of the display screen or in the row under the display screen are menu
selection buttons, through which, you can set the different options for the current
menu. The other buttons are function buttons, through which, you can enter
different function menus or obtain a specific function application directly.
10
3
5
4
9
8
1
6
2
7

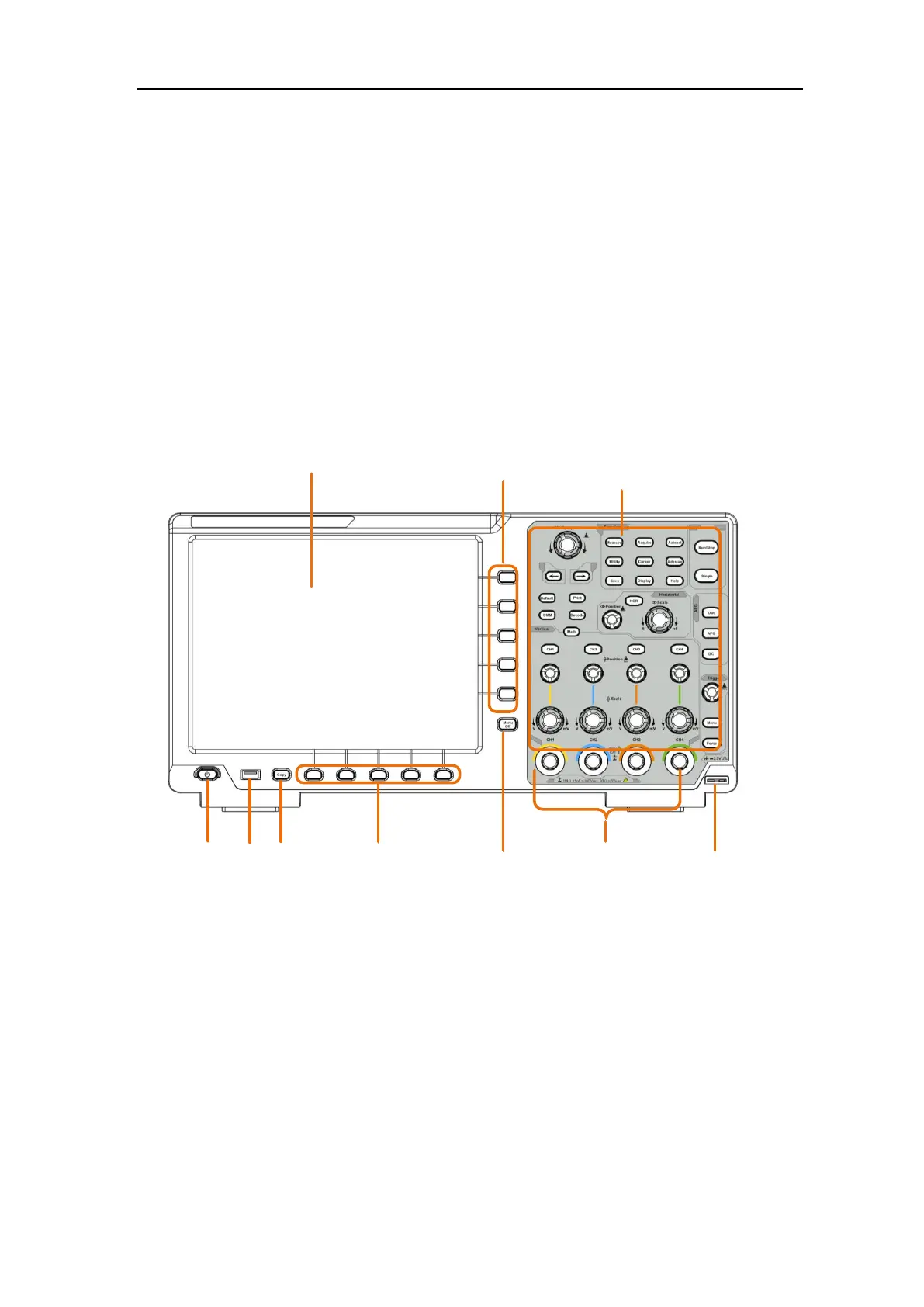

Figure 3-1 Front panel
1. Display area
2. Select the right menu item
3. Control (button and knob) area
4. Probe Compensation: Measurement signal (3.3V/1kHz) output.
5. Input connectors of four channels
6. Remove the left and right menu
7. Select the bottom menu item
8. Copy button: You can save the waveform by just pressing this button in any
user interface.
