4.Advanced User Guidebook
65
the horizontal scale and position.
◼ The Vertical Scale and the Vertical Position knobs are used to set the
vertical scale and position.
The following functions can not work in the XY Format:
◼ Reference or digital wave form
◼ Cursor
◼ Trigger control
◼ FFT
Operation steps:
1. Push the Display button.
2. Select XY Mode in the bottom menu. Select Enable as ON in the right
menu.
3. To make the XY view full screen, select Full Screen as ON in the right
menu.

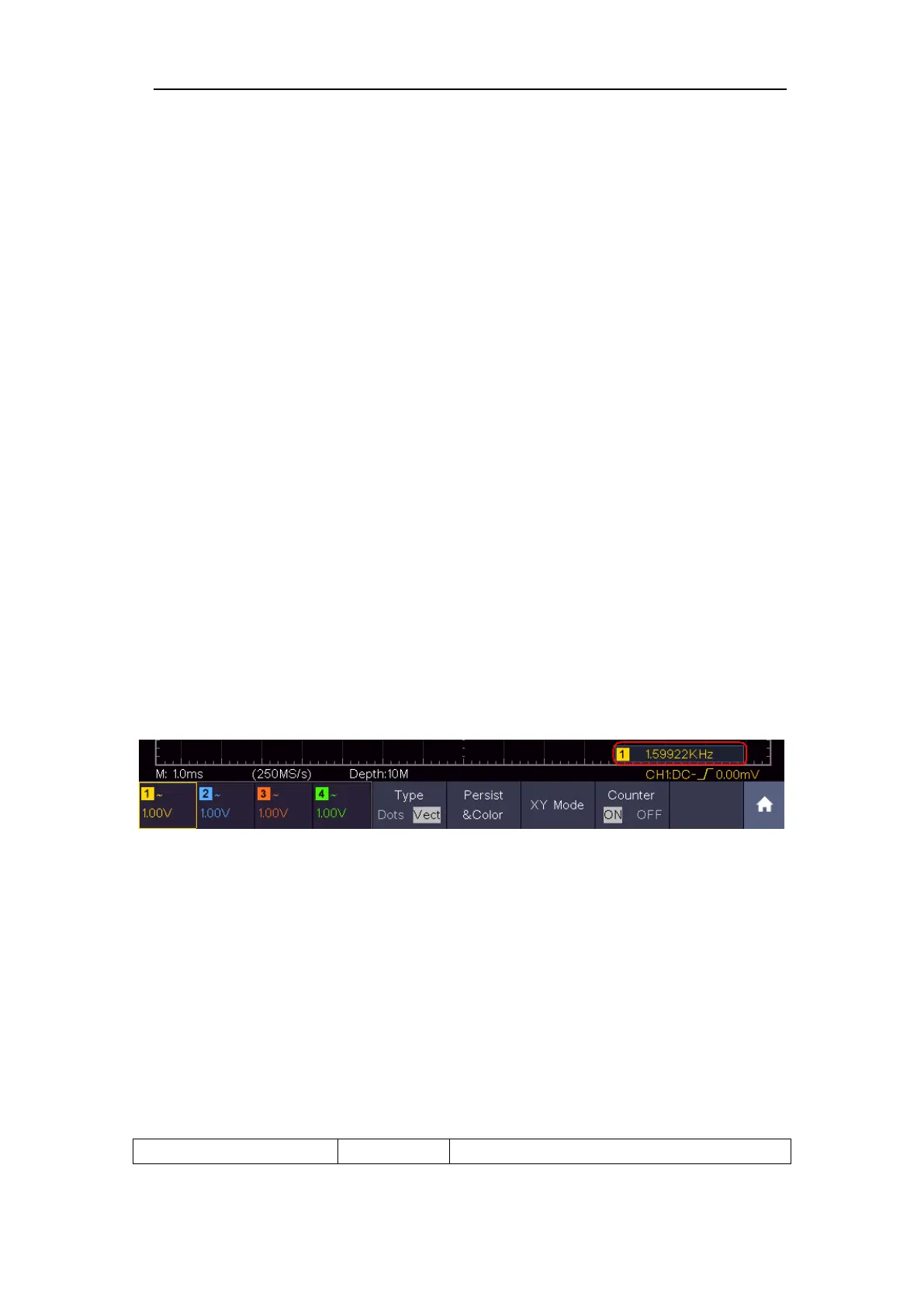

Counter
It is a 6-digit single-channel counter. The counter can only measure the
frequency of the triggering channel. The frequency range is from 2Hz to the full
bandwidth. Only if the measured channel is in Edge mode of Single trigger
type, the counter can be enabled. The counter is displayed at the right bottom
of the screen.
Operation steps:
1. Push Trigger Menu button, set the trigger type to Single, set the trigger
mode to Edge, select the signal source.
2. Push the Display button.
3. Select Counter as ON or OFF in the bottom menu.
How to Save and Recall a Waveform
Push the Save button, you can save the waveforms, configures, screen
images, record or clone the waveform.
The description of the Save Function Menu is shown as the following table:
Function Menu
Setting
Description
