9. USB Host port: It is used to transfer data when external USB equipment
connects to the oscilloscope regarded as "host device". For example: Saving
the waveform to USB flash disk needs to use this port.
10. Power on/off switch: With memory (self-locking) switch, it will automatically
remember the last shutdown operation. If the last time the power was turned off,
the power will be turned on next time without pressing the switch, and it will
automatically turn on. If the switch button was pressed last time, the next time
press the switch button to switch on.
Rear Panel

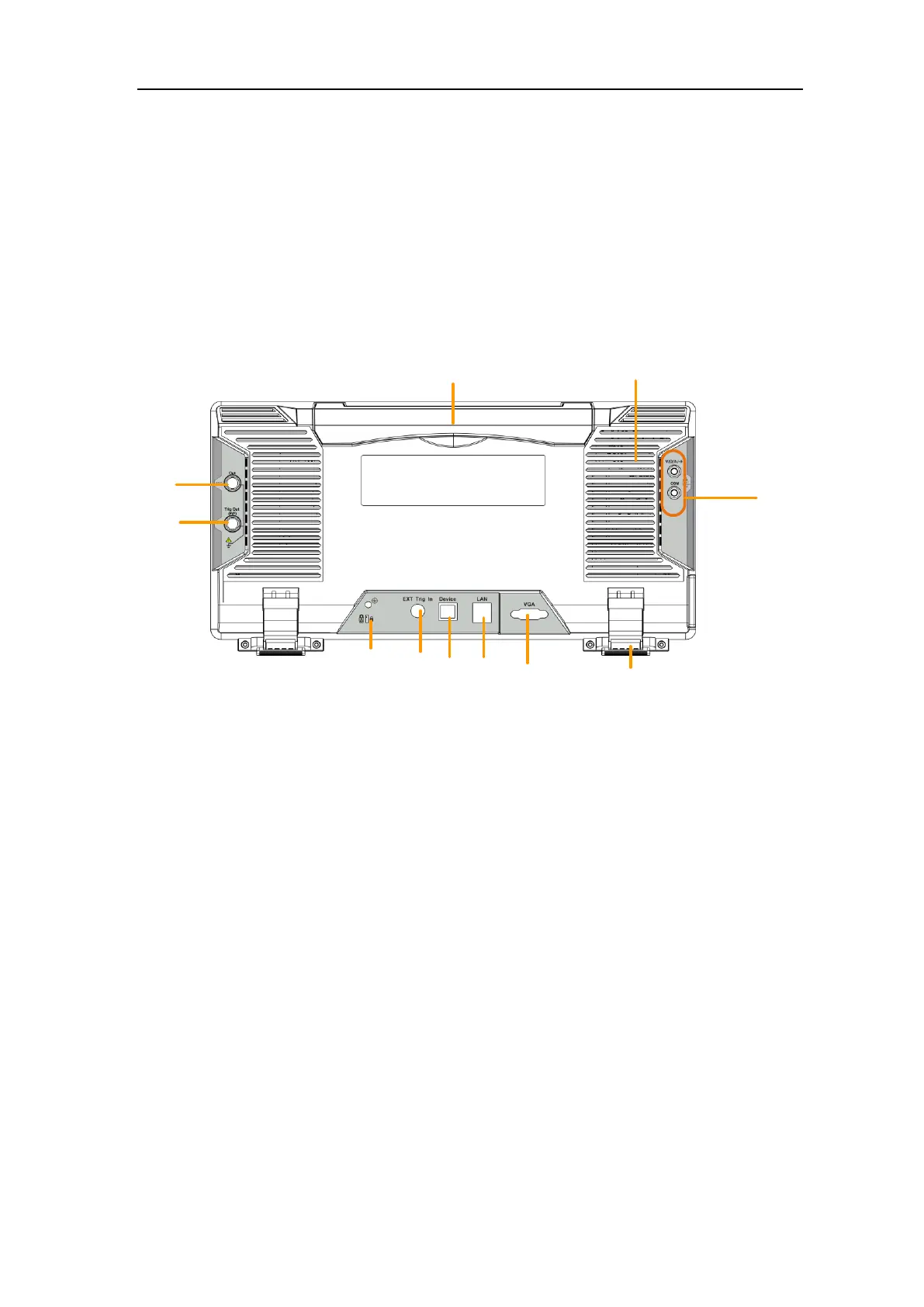

Figure 3-2 Rear Panel
1. Handle
2. Air vents
3. Input terminals of multimeter (optional)
4. Foot stool: Adjust the tilt angle of the oscilloscope.
5. VGA port: To connect the oscilloscope with a monitor or a projector as VGA
output.
6. LAN port: the network port which can be used to connect with PC.
7. USB Device port: It is used to transfer data when external USB equipment
connects to the oscilloscope regarded as "slave device". For example: to use
this port when connect PC to the oscilloscope by USB.
8. External trigger input port.
9. Lock Hole: You can lock the oscilloscope to a fixed location using the security
lock (please buy it yourself) to secure the oscilloscope.
10. Trig Out(P/F) port: Trigger signal output or Pass/Fail output. The output type
can be set on the menu (Utility menu→Output→Output).
11. Out port: Output port of the waveform generator.
