92
Instruments and controls

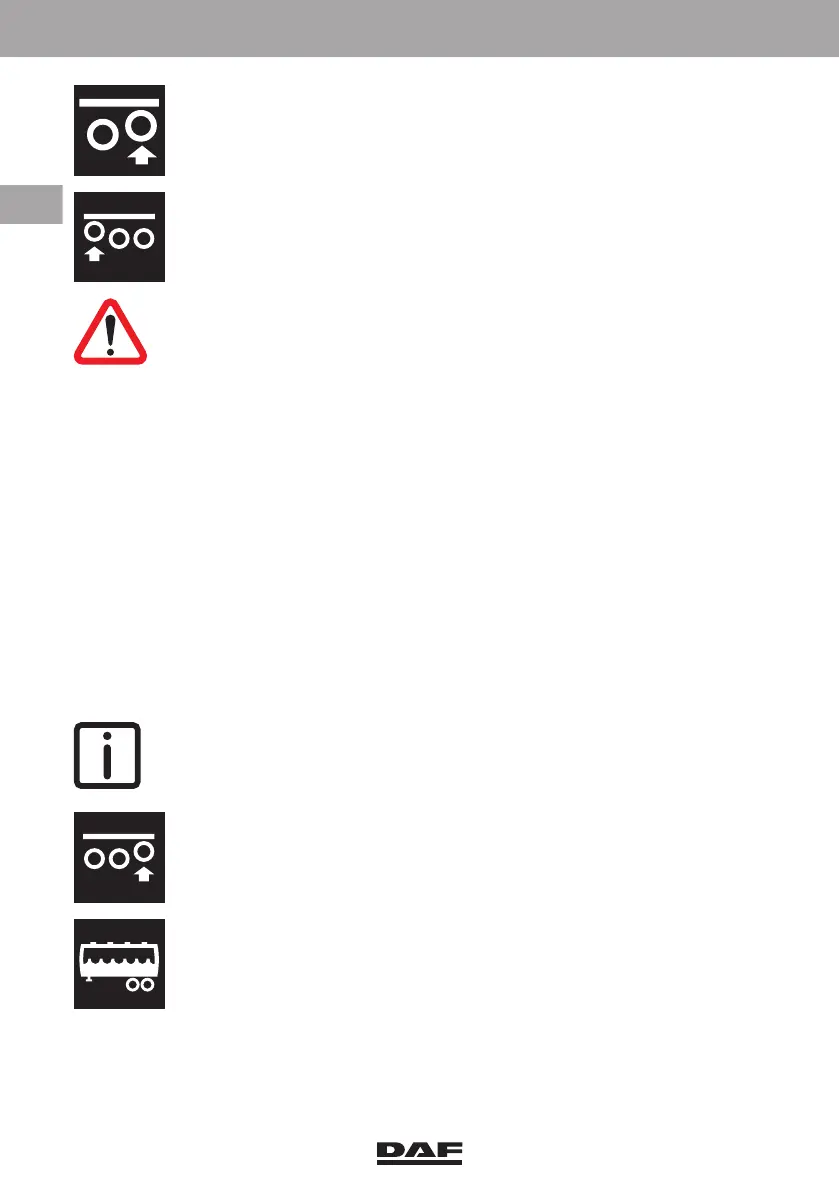

F.(2).Trailing axle lifting system switch
This switch operates the lifting system of the trailing axle.
F.(2). Steered leading rear axle lifting system switch
This switch operates the lifting system of the steered leading rear axle.
WARNING! Staying in the vicinity of a lifting or lowering axle can
catch the operator and cause serious injury.
– Make sure that no one is in the vicinity of the moving axle.
The switch has three positions:
Lifting - 0 - Lowering
Lifting
– Make sure that no one is in the vicinity of the moving axle.
– Press the upper part of the switch against the spring pressure.
– The air-suspended trailing axle is fully lifted automatically (with sufficient air
pressure).
– With a leaf-suspended trailing axle, press the switch and hold it until the trailing axle
is fully lifted.
Lowering
– Make sure that no one is in the vicinity of the moving axle.
– Press the lower part of the switch against the spring pressure.
– The trailing axle lowers automatically.
NOTE: For vehicles with an automated gearbox: the vehicle must be
stationary and the gearbox must be in the neutral (N) position.
F.(3). Trailing axle lifting system switch
This switch operates the lifting system of the trailing axle.
F.(3). Liquid transport switch
Use this switch to engage or disengage the TraXon shifting programm
for liquid transport.
See section 'Liquid transport application' in the chapter 'TraXon
gearbox'.
