PACOM PDR960H-8HD - Connector Pin Outs; I;O Connector Pin Outs; RS485 Connector Pin Outs

User’s Manual
84

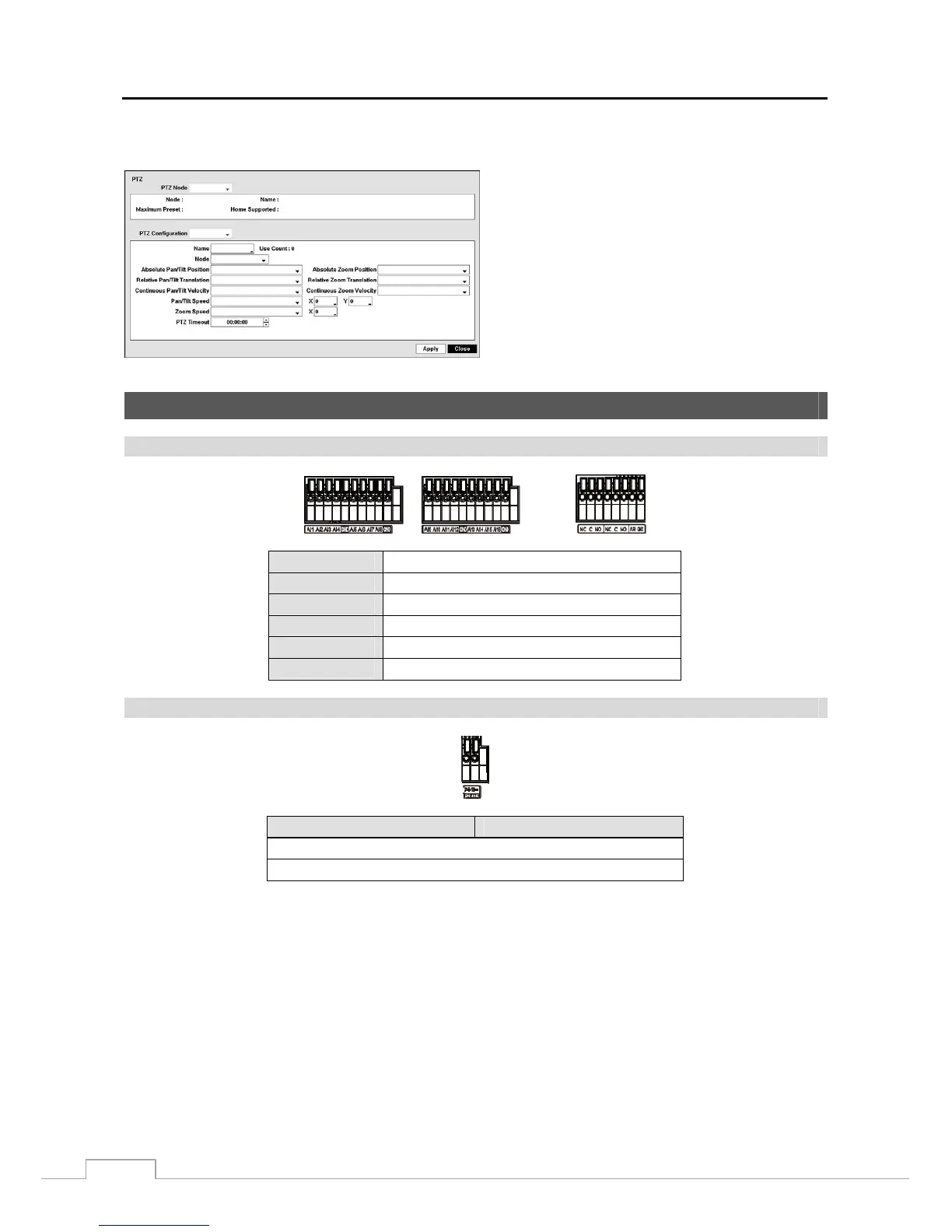

PTZ Setup
 PTZ: Sets up the PTZ.
Connector Pin Outs
I/O Connector Pin Outs
AI (1 to 16)
Alarm Inputs 1 to 16
GND
Chassis Ground (5 connectors)
NC
Relay Alarm Output (Normally Closed)
C
Relay Common
NO
Relay Alarm Output (Normally Open)
ARI
Alarm Reset In
RS485 Connector Pin Outs
Master Unit Slave Unit
+  To  TX+/ RX+
−  To 
TX-/ RX-
