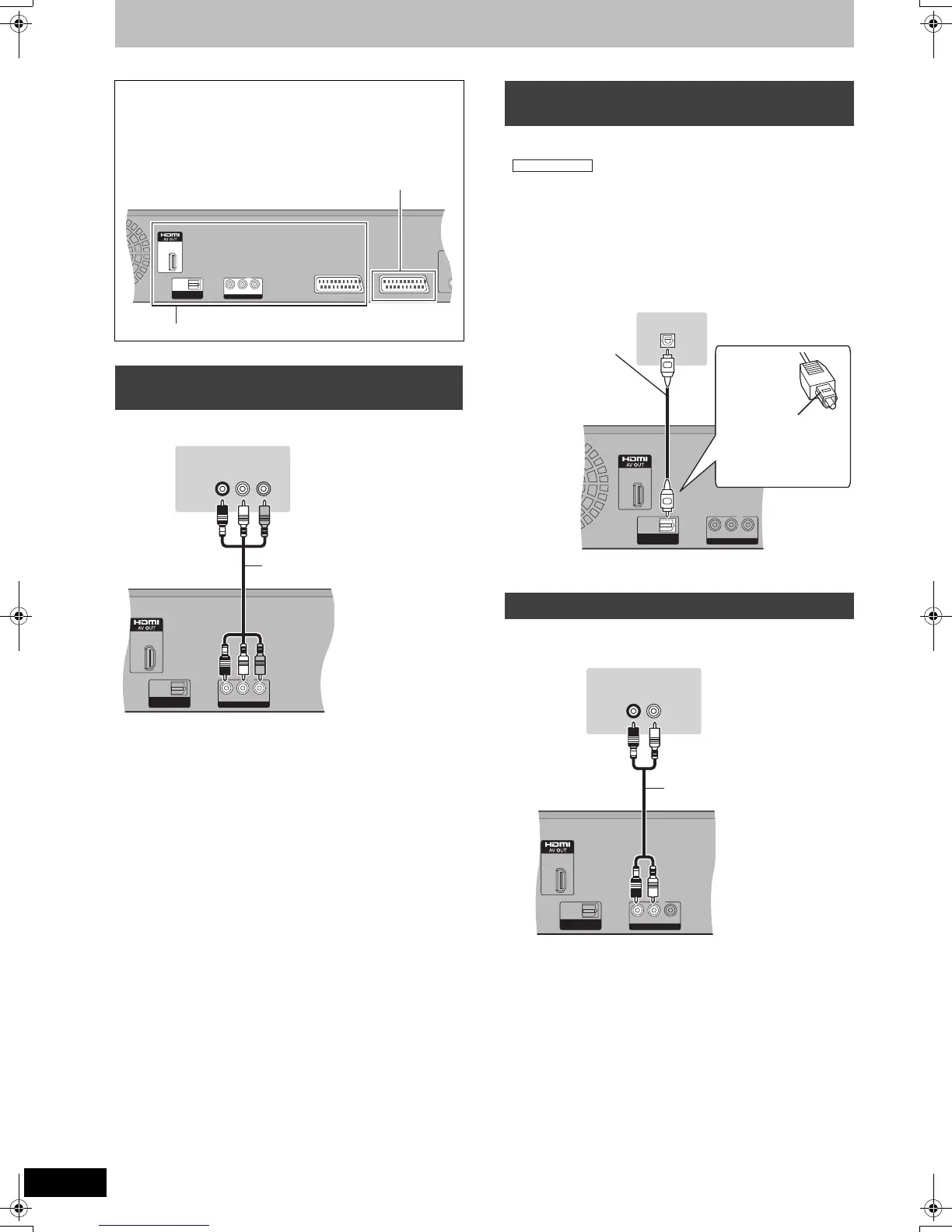

Additional connections
≥Connect to terminals of the same colour.
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
“Digital Audio Output” in the Setup menu (> 65)
≥
When this unit is connected to an amplifier with an optical digital
audio cable and connected to a television with an HDMI cable, you
can enjoy the highest quality of audio from the disc by setting
“Digital Audio Output” to “Optical Only” in the Setup menu (
>
66).
In this case audio is only output from the amplifier not the television.
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
≥Connect to terminals of the same colour.
DVD output and DVD/VHS output
The unit has DVD/VHS common out terminals and DVD priority out
terminals.
≥The DVD priority out terminals can also output the VHS signal.
However this is not possible during DVD recording or DVD timer
recording.
DVD/VHS common out
DVD priority out
Connecting a television with AUDIO/
VIDEO
RFRF
ININ
RFRF
OUTOUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM) OUT
VIDEO
AV2 (EXIT) AV1 (TV)
R- AUDIO-L
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM) OUT
VIDEO
R- AUDIO-L
AUDIO IN
R L
VIDEO
IN
This unit’s rear panel
Audio/Video cable
Television’s rear panel
Connecting an amplifier with a digital
input terminal
Connecting a stereo amplifier
Required setting
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM) OUT
VIDEO
R- AUDIO-L
OPTICAL IN
Optical digital
audio cable
Do not bend
sharply when
connecting.
This unit’s rear panel
Insert fully, with this
side facing up.
Amplifier’s rear panel
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM) OUT
VIDEO
R- AUDIO-L
AUDIO IN
R L
Audio cable
This unit’s rear panel
Amplifier’s rear panel
