Getting started
VQT2J58
7

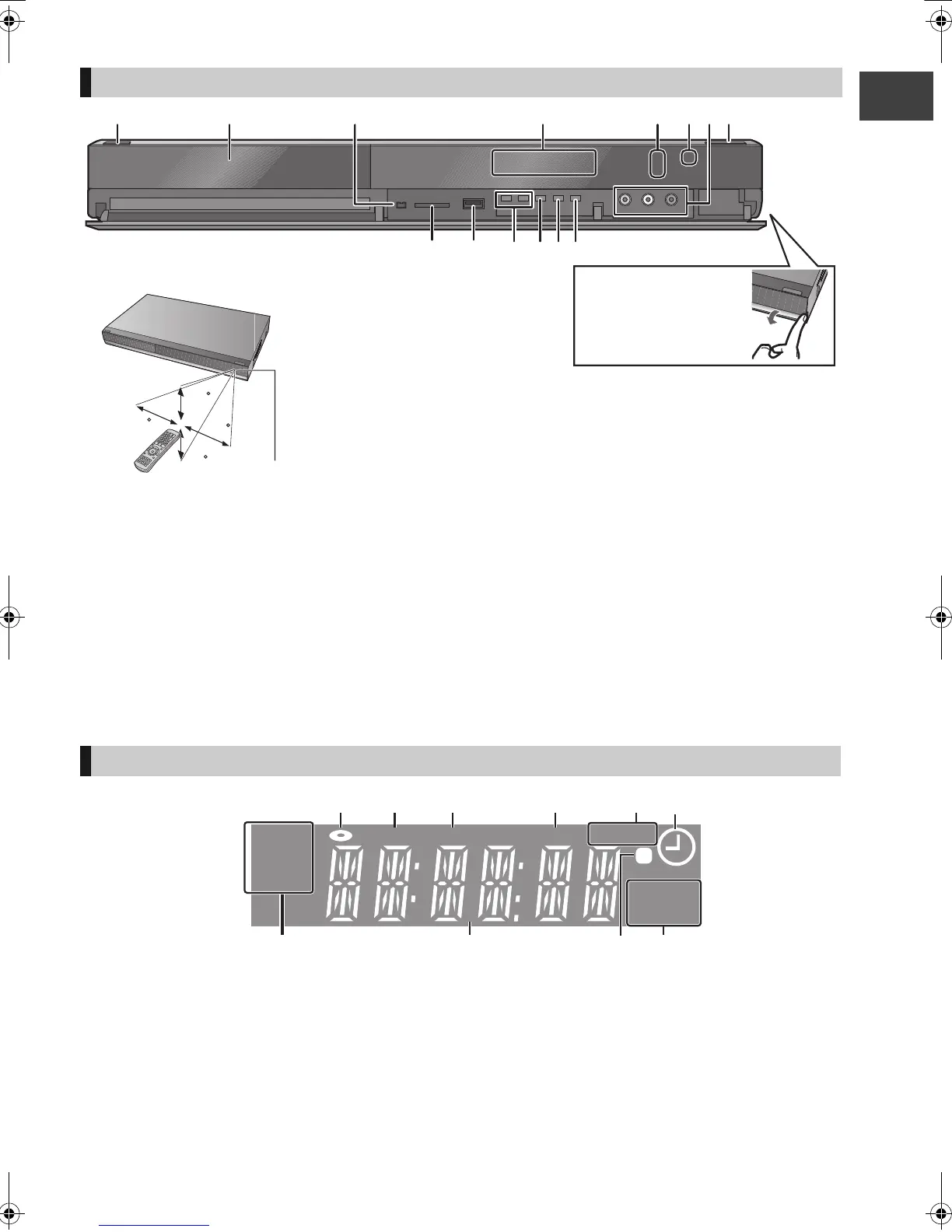

1 Standby/on switch (Í/I) (> 11, 14)
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power.
2 Disc tray (> 14)
3 Connection for digital video (DV) camcorder
(> 62)
4 Display (> below)
5 Recording indicator
6 Remote control signal sensor (> above)
7 Connection for VCR, Panasonic’s video camera,
etc. (> 62)
8 Open/close disc tray (> 14)
9 SD card slot (> 14)
: USB port (> 14)
; Channel select (> 16)
< Start recording (> 21)/Specify a time to stop
recording (> 21)
= Stop
> Start play
Rear panel terminals (> 8, 9, 10, 89)
1 Disc indicator
2 Copying indicator
3 USB port indicator
4 SD card slot indicator
5 EXT LINK indicator
6 Timer recording indicator
This indicator lights up when the timer recording
standby is activated.
7 Drive (HDD, DVD or SD) indicator
8 Main display section indicator
Current time/playback counter, various messages
9 Remote control signal indicator
: Playback indicator
Main unit
30
30
20
20
Pull to flip down the
front panel.
Distance: Within approx. 7 m in front of the unit
∫ Remote Control signal sensor
The unit’s display
HDD
DVD
PLAY
COPY
USB
SD
EXT
-L
