Convenient functions
VQT2J58
89

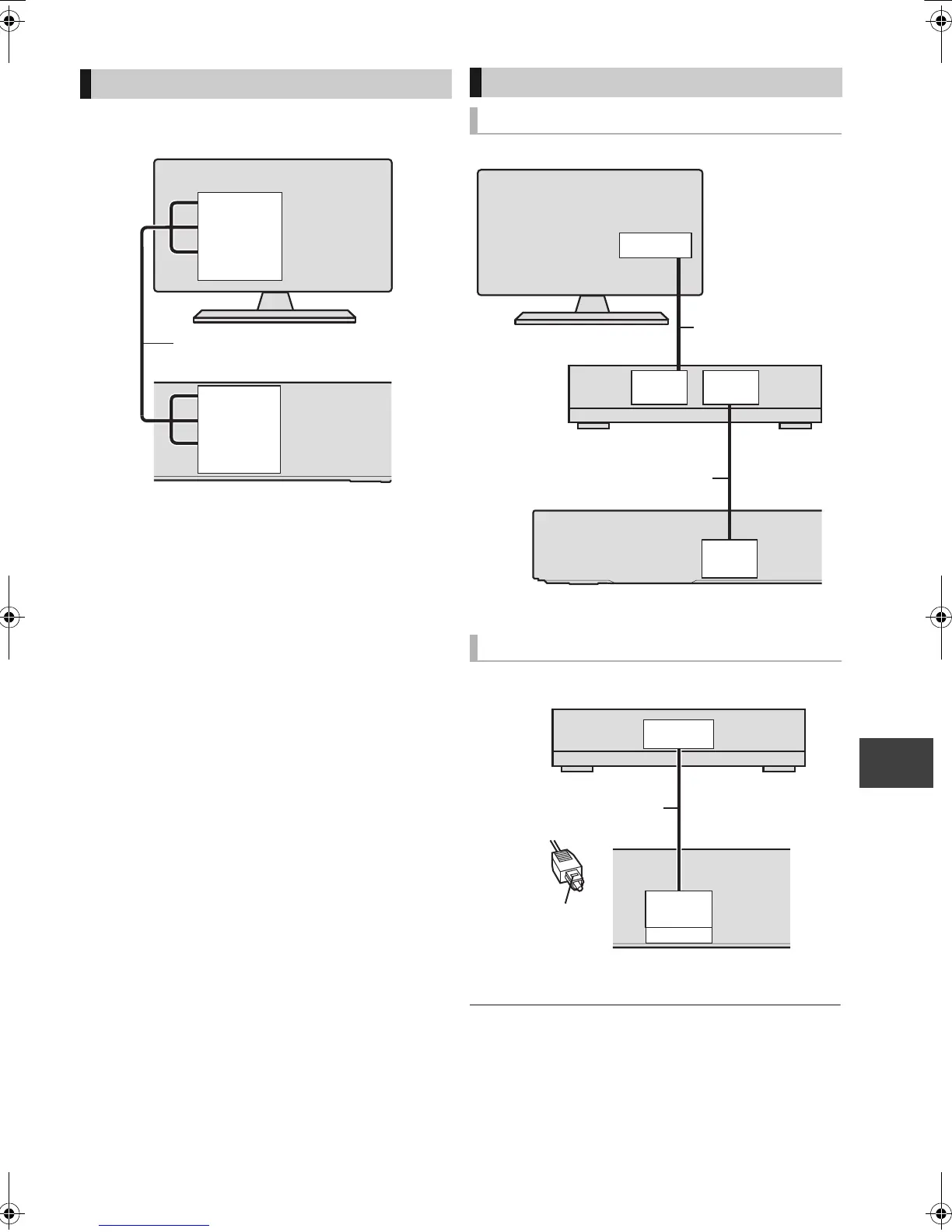

Other Connections
≥Connect to terminals of the same colour.

≥ When connecting a TV with an HDMI OUT terminal, set
“HDMI Audio Output” to “Off” (> 83).
≥ When you use the optical digital audio cable, insert the tip
correctly into the terminal.
Other TV connections
AUDIO
OUT
VIDEO
L
R
AUDIO IN
VIDEO
L
R
This unit’s rear panel
Audio/Video cable
TV’s rear panel
Amplifier connections
HDMI AV OUT terminal
DIGITAL AUDIO OUT terminal
HDMI
AV OUT
HDMI IN
HDMI
AV OUT
HDMI
IN
This unit’s rear panel
Amplifier’s
rear panel
TV’s rear panel
HDMI cable
HDMI cable
OPTICAL
IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
OPTICAL
This unit’s rear panel
Amplifier’s rear panel
Optical digital
audio cable
Insert fully with this
side up. Do not
bend cable sharply.
