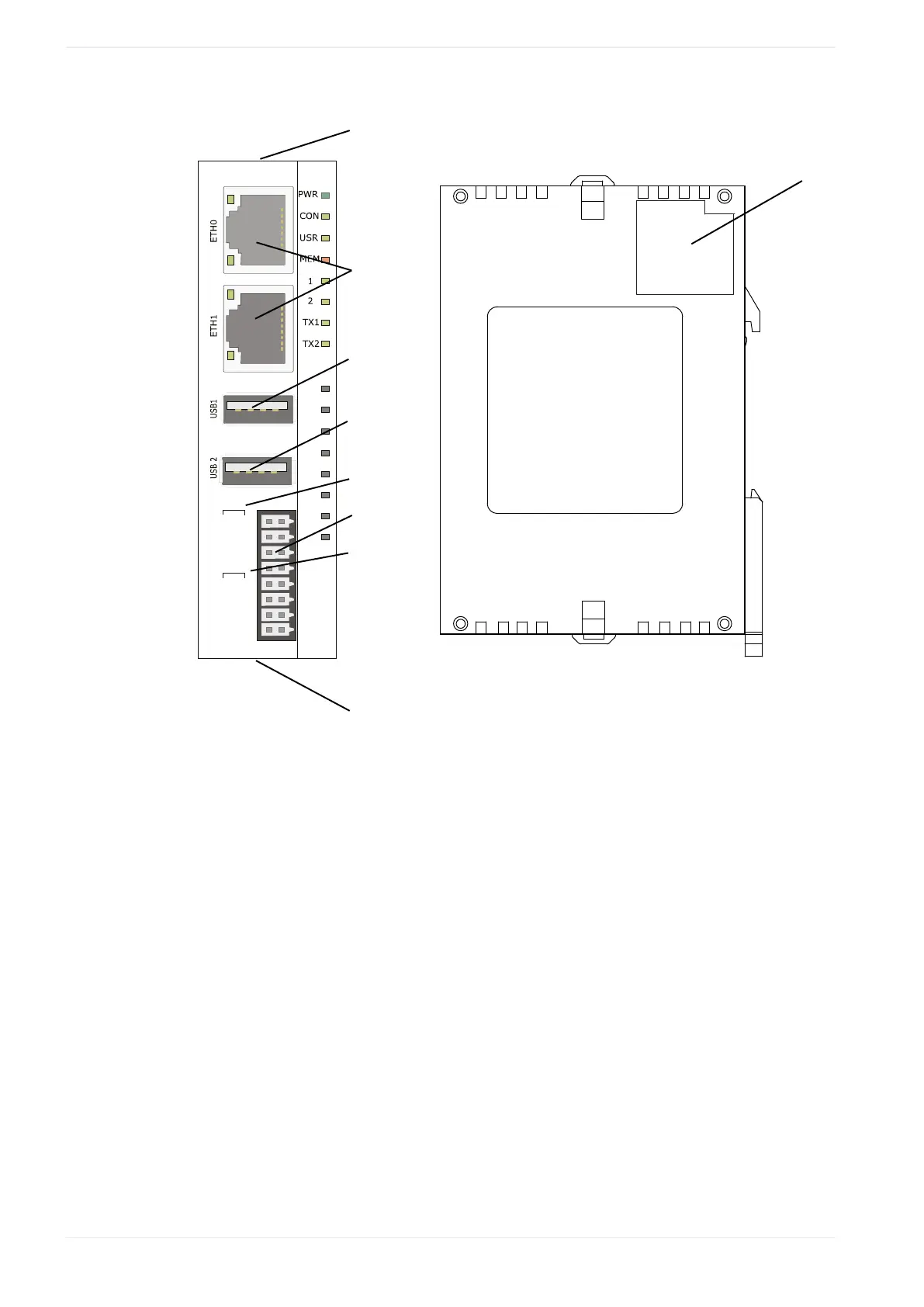

3 Hardware description
FP-I4C
S R
G1
F1 F2
S/- R/+
S/- R/+
S/- E
G2 G2
G1
RS232RS232/RS485
COM1
COM2
(2)
(3)
(4)
(5)
(1)
(7)
(6)
(8)
(9)
(1)
Reset tact switch
(2)
2x Ethernet connectors: 10-Base-T / 100-Base-Tx (RJ45)
(3)
USB connection 1
USB2.0 host port (for unit load up to 500mA)
(4)
USB connection 2
USB2.0 host port (for unit load up to 100mA)
(5)
COM1 RS232C:
Spring force plug that connects to the PLC. Non-isolated, without handshake.
(6)
F1, F2: Function inputs
Binary inputs as optional unit functions. Pull-up design (leave it open or wire a short to the GND
pins)
(7)
COM2 RS232/RS485: used for PLC communication or transparent redirect services
(8)
24V DC, use Panasonic power cable (AFPG805)
Brown = +24V DC
Blue = GND
Green = framing ground
(9)
Connector for FP0/FP0R expansion units only
16-pin expansion connector
Note
The expansion connector is for the FP0/FP0R expansion units only.
12 FP-I4C
