4 Installation
60.0 mm
AFP0804
(3)
(2)
(1)
(1)
FP0 slim type mounting plate AFP0803
(2)
Screw
(3) Mounting panel
4.3.5 Installation using FP0 flat type mounting plate

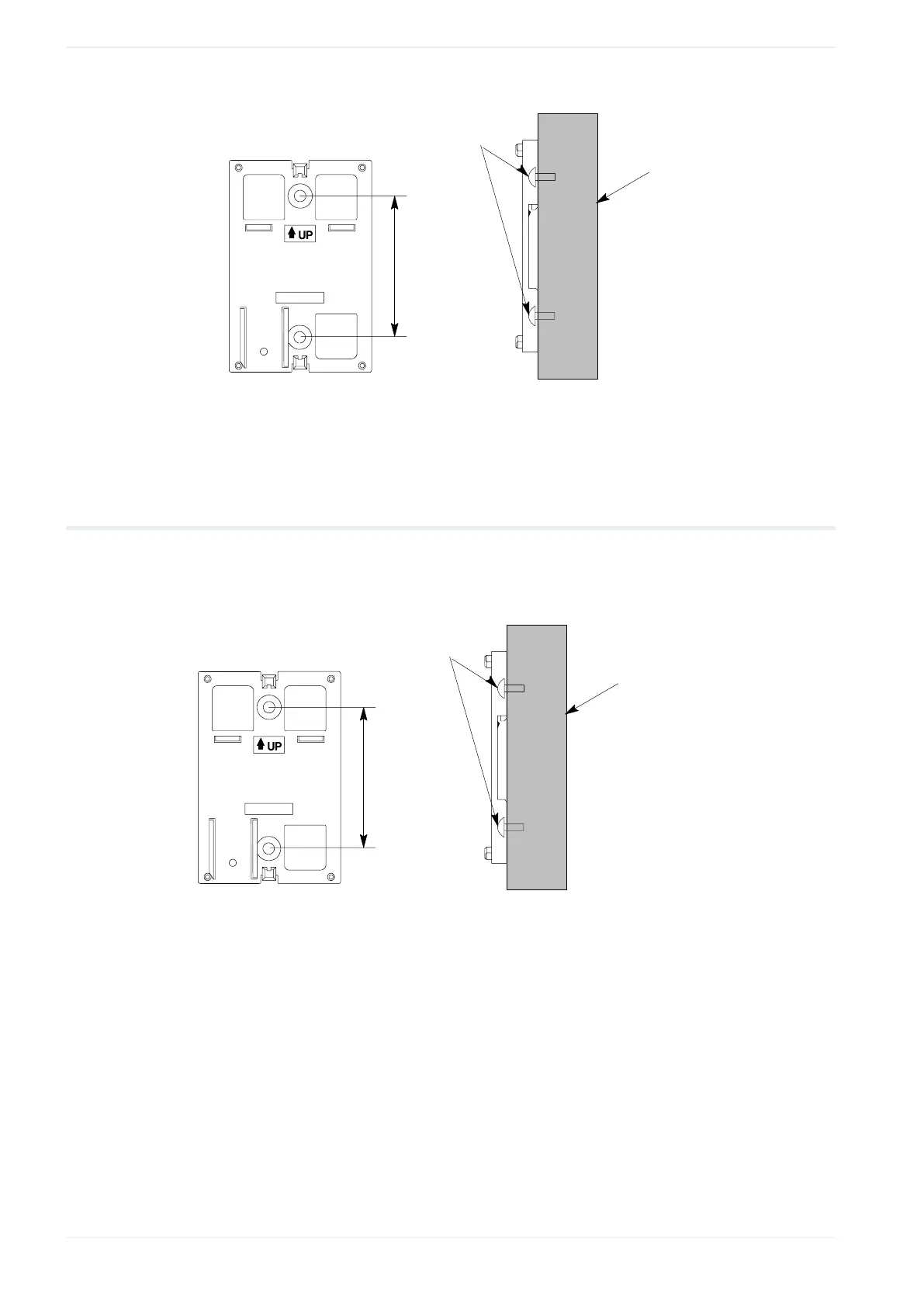

Use M4 size pan-head screws to attach the FP0 flat type mounting plate (AFP0804) and
install according to the dimensions shown below.
60.0 mm
AFP0804
(3)
(2)
(1)
(1)
FP0 flat type mounting plate AFP0804
(2)
Screw
(3) Mounting panel
1. Raise the expansion hooks on the top and bottom of the unit.
2. Install the FP-I4C on the FP0 flat type mounting plate
26 FP-I4C
