4 Installation

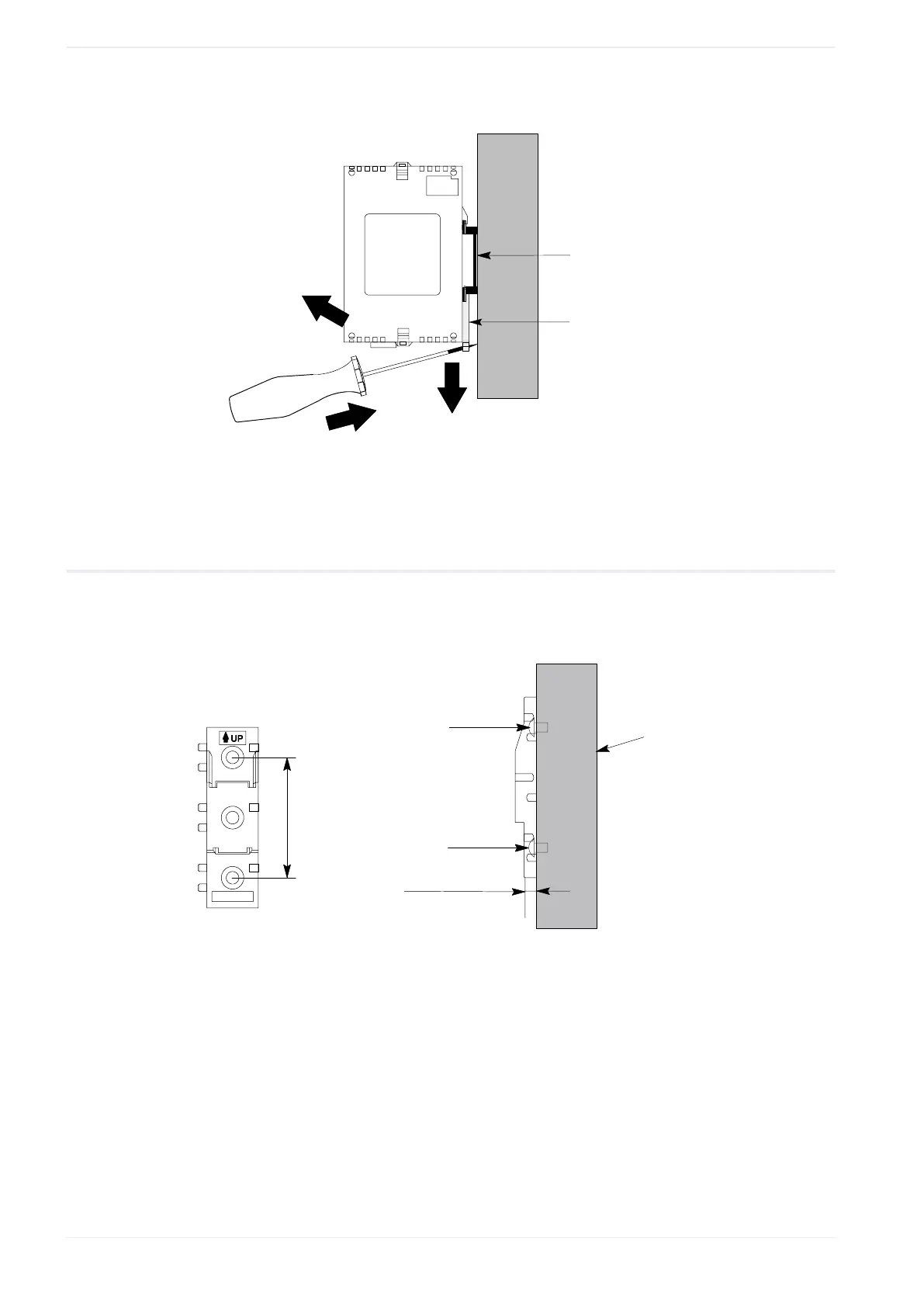

3. Lift up the FP-I4C unit and remove it from the rail.
1
2
3
(2)
(1)
(1) DIN rail
(2) DIN rail attachment lever
4.3.4 Installation using FP0 slim type mounting plate
Use M4 size pan-head screws to attach the FP0 slim type mounting plate (AFP0803) to the
mounting panel.
6.0 mm
AFP0803
60.0 mm
(3)
(2)
(1)
(2)
(1)
FP0 slim type mounting plate AFP0803
(2)
Screw
(3) Mounting panel
