3.3 Parts and functions
Related topics
Reset tact switch (page 13)
Connecting the power supply (page 27)
LEDs (page 13)

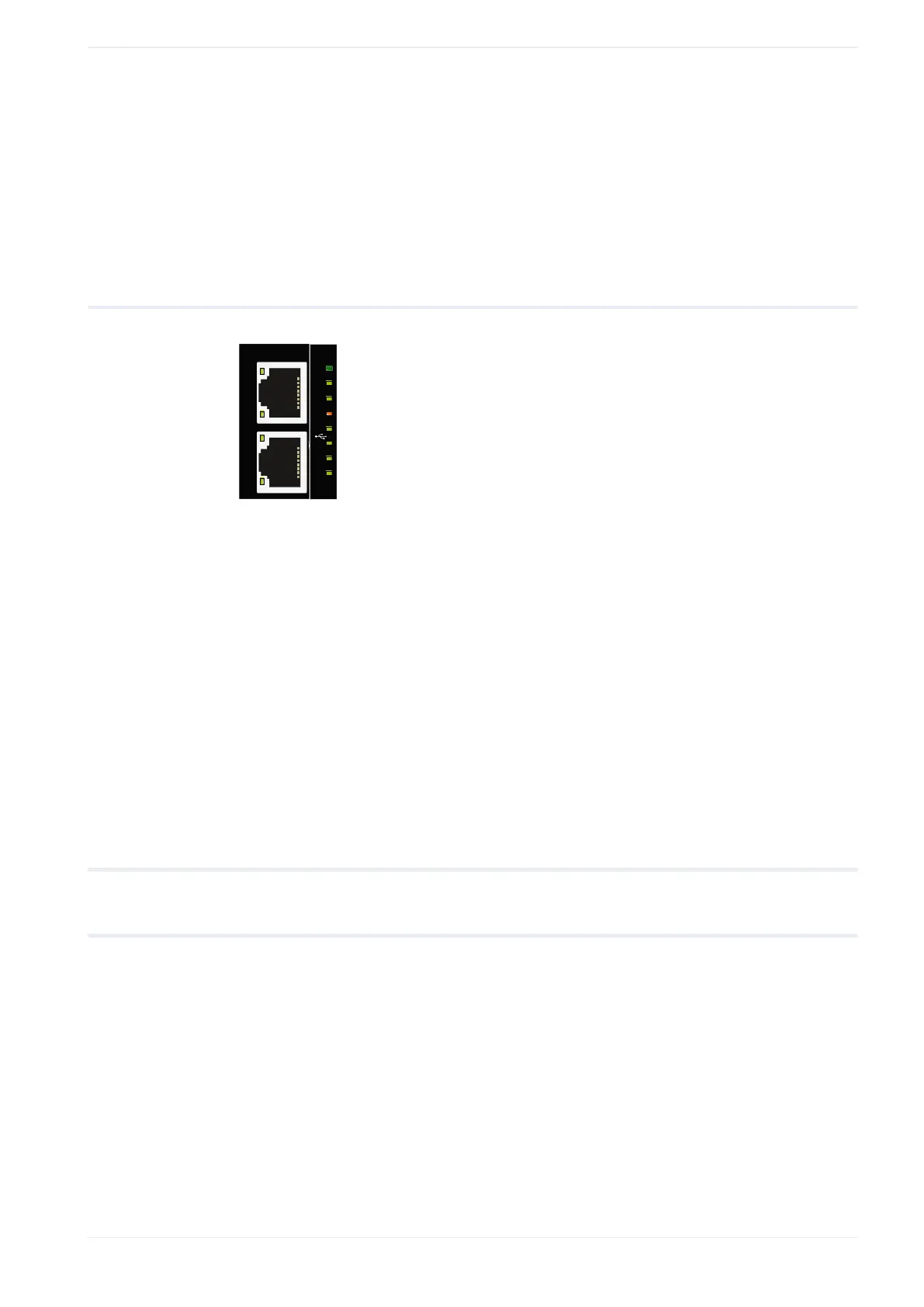

3.3.1 LEDs
PWR
CON
2
COM
USR
ETH0ETH1
MEM
1
2
1
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(1)
PWR: Power LED
Indicates if the unit is working correctly. After a power-cycle the unit starts and checks the correct
operation. If the startup check was successful, the Power LED flashes.
(2)
CON: Connection
Used by some internal features to indicate an established connection.
(3)
USR: User
Can be set by a PLC program to indicate something special.
(4)
MEM: Memory access
Indicates a writing operation to an USB stick.
(5)
USB 1 and USB 2
Indicate activity at the USB ports
(6)
TX1
Indicates data transmission via the RS232 interface (COM1)
(7)
TX2
Indicates data transmission via the RS232/RS485 interface (COM2)
3.3.2 Reset tact switch
3.3.2.1 Restart the unit
Within the housing on the top side you can find a small tact switch. You can use a flat/dulled
spike or a paperclip to operate the tact switch.
The reset tact switch can be used to restart the unit.
FP-I4C 13
