DT90240
PC(PLC)
link
Unit
(station)
No. 6 or 14
System regis-
ter 40 and 41

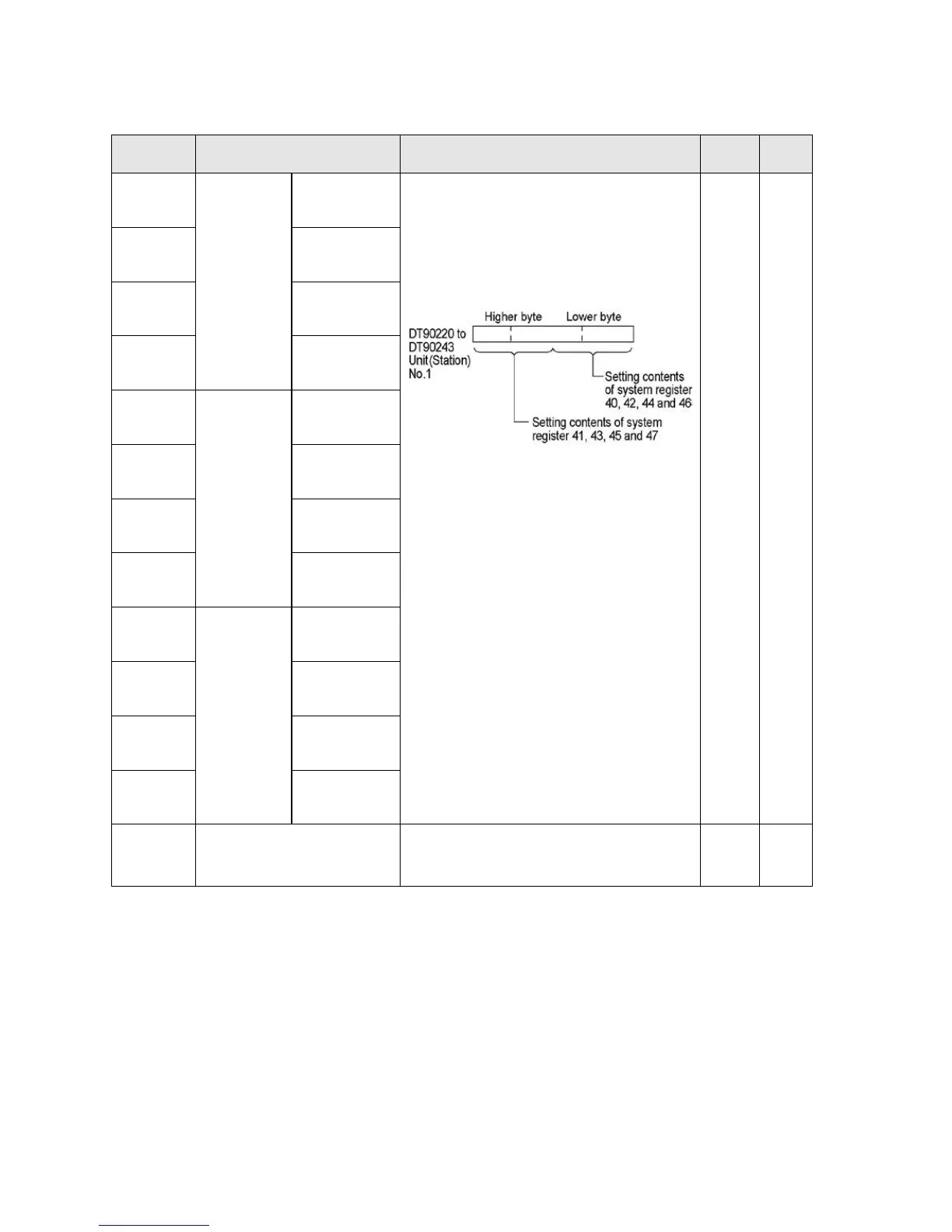

The contents of the system register
settings partaining to the PLC inter-link
function for the various unit numbers are
stored as shown below.
<Example> when DT90219 is 0.
• When the system register 46 in the
home unit is in the standard setting, the
values in the home unit are copied in the
system registers 46 and 47.
When the system register 46 in the
home unit is in the reverse setting, the
registers 40 to 45 and 47 corresponding
to the home unit mentioned in the left
column will be changed to 50 to 55 and
57, and the system register 46 will be
set as it is.
Also, the system registers 40 to 45
corresponding to other units will be
changed to the values which the
received values are corrected, and the
registers 46 and 57 in the home unit are
set for the registers 46 and 47.
A N/A
DT90241
System regis-
ter 42 and 43
DT90242
System regis-
ter 44 and 45
DT90243
System regis-
ter 46 and 47
DT90244
PC(PLC)
link
Unit (sta-
tion) No. 7
or 15
System regis-
ter 40 and 41
DT90245
System regis-
ter 42 and 43
DT90246
System regis-
ter 44 and 45
DT90247
System regis-
ter 46 and 47
DT90248
PC(PLC)
link
Unit (sta-
tion) No. 8
or 16
System regis-
ter 40 and 41
DT90249
System regis-
ter 42 and 43
DT90250
System regis-
ter 44 and 45
DT90251
System regis-
ter 46 and 47
DT90252
to
To Next Page
