8.2.10 Hopper Unit

TOP PREVIOUS NEXT

1. Remove the Switch Panel and the Side /Panel (L). (See 8.2.3 and 8.2.7)

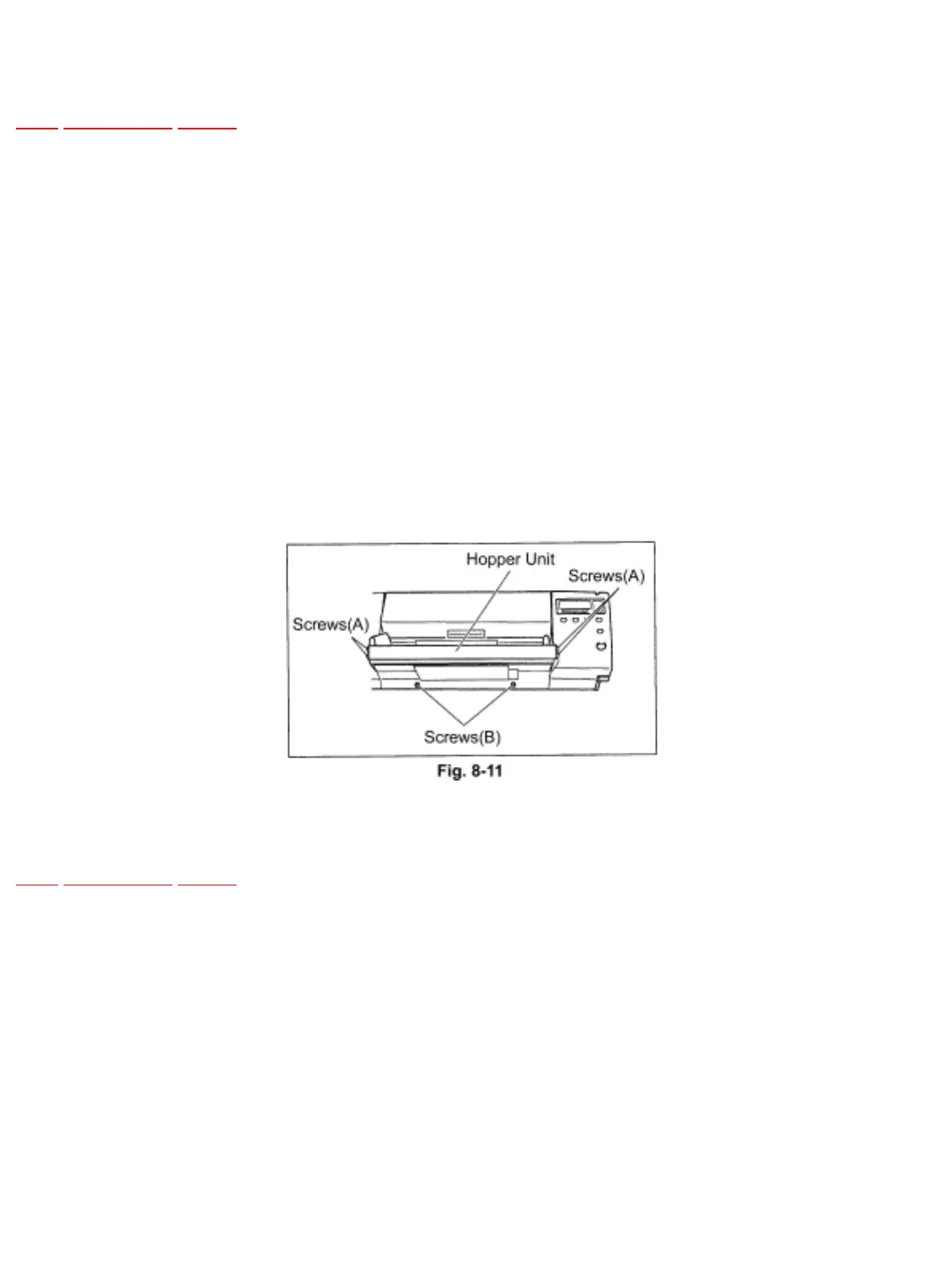

2. Remove 4 screws (A).

3. Remove 2 screws (B).

4. Disconnect connector CN512.

Note:

When assembling, cable connected to CN512 should be inserted, while white base side of the

cable (without character) is located to the upper.
