Panasonic KX-TDA600

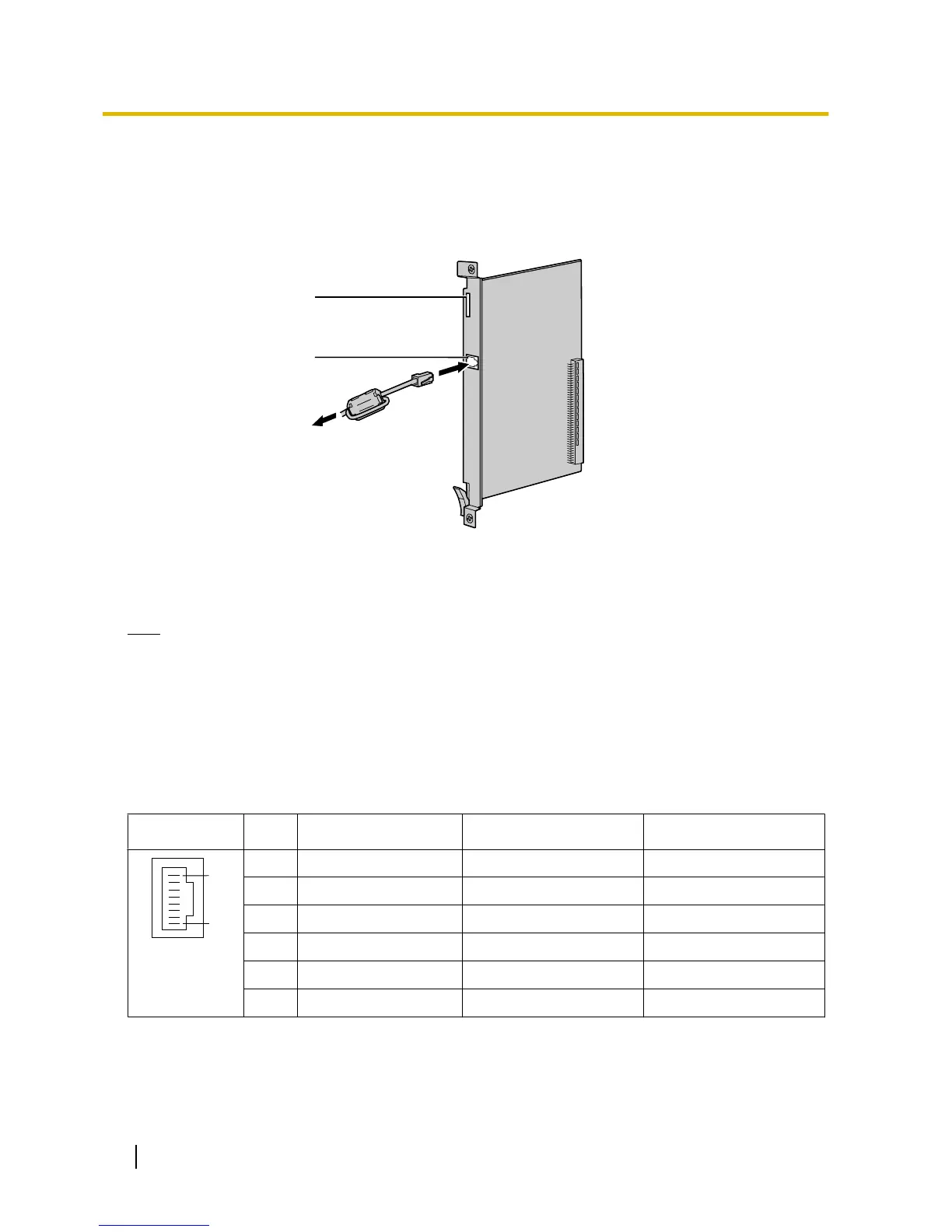

2.7.8 IP-EXT16 Card (KX-TDA0470)
Function
16-channel VoIP extension
card. Compliant with Panasonic proprietary protocol, and ITU-T G.729a and G.711
CODEC methods.
LEDs
RJ45
(10BASE-T/100BASE-TX
Full Duplex)
To LAN
Accessories and User-supplied Items
Accessories (included): Ferrite core ´ 1
User-supplied (not included): RJ45 connector
Note
• The maximum length of the cable to be connected to this optional service card is 100 m.
• When connecting the RJ45 connector, attach the included ferrite core. Refer to "2.2.15 Attaching a
Ferrite Core".
• Portions of this product contains software of Datalight, Inc. Copyright 1993–2000 Datalight,Inc., All
Rights Reserved.
Pin Assignments
RJ45 Connector (10BASE-T/100BASE-TX)
No. Signal Name Input (I)/Output (O)
Function
8
1
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3 TPI+ I Receive data+
4-5 Reserved – –
6 TPI- I Receive data-
7-8 Reserved – –
