Panasonic KX-TDA600

2.8.2 DPH4 Card (KX-TDA0161)
Function

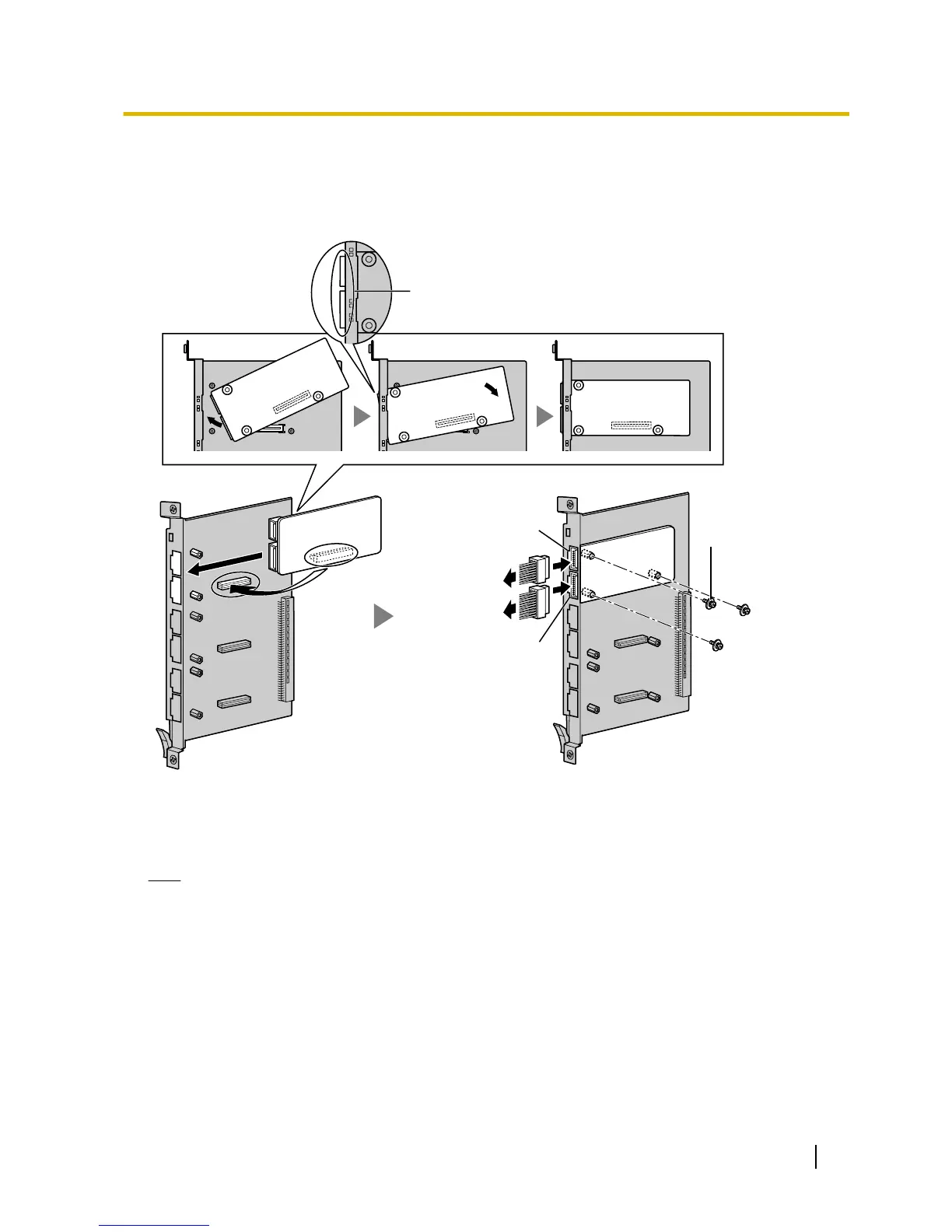

4-port doorphone card for 4 doorphones and 4 door openers. To be mounted on the OPB3 card.
Screw
DPH4 Card
OPB3 Card
Fully insert the connectors through
the panel openings.
To door opene
rs
To doorphones
10-pin
8-pin
Accessories and User-supplied Items
Accessories (included): Screws ´ 3, 10-pin terminal block ´ 1, 8-pin terminal block ´ 1
User-supplied (not included): Copper wire
Note
For details about connection to doorphones and door openers, refer to "2.13.1 Connection of Doorphones,
Door Openers, External Sensors, and External Relays".
