2.11.7 Connecting a Cell Station to the PBX
Using a CSIF Card

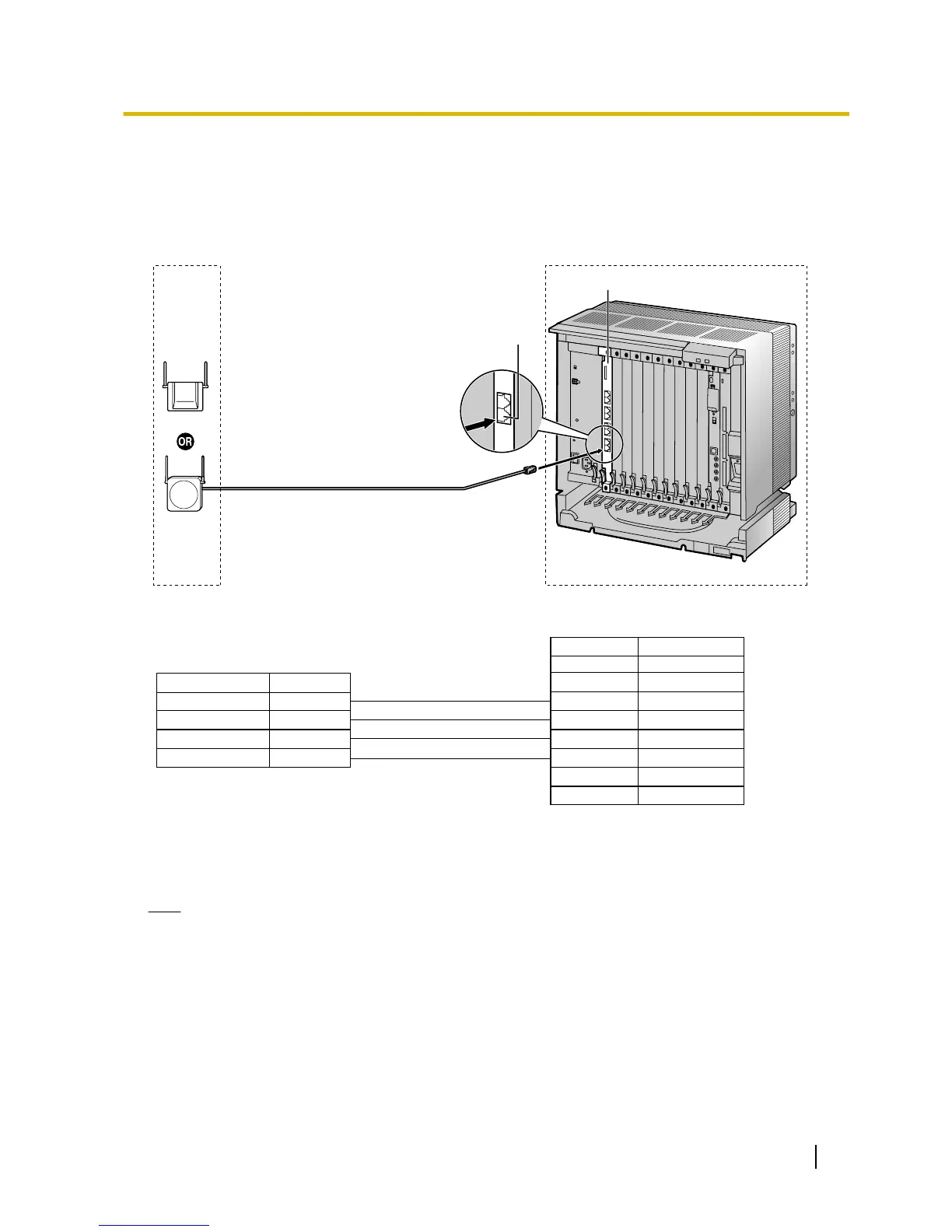

Refer to the following example to connect a CS to the PBX.
KX-TDA0152/KX-TDA0142
1
2
3
4
D1
POWH
POWL
D2
D1
POWH
POWL
D2
1
2
3
4
5
6
7
8
Signal Name
Signal Name
Pin No.
Pin No.
CSIF card (RJ45)
CS (RJ11)
Cable Maximum Distance
ø 0.4 mm: 444 m
ø 0.5 mm: 694 m
ø 0.6 mm: 1000 m
CAT 5: 694 m
CSIF8 Card
Port 1
Accessories and User-supplied Items for the CS
Accessories (included): Screws ´ 2, Washers ´ 2
User-supplied (not included): RJ11 connector
Note
For details about CSIF card, refer to "2.7.1 CSIF4 Card (KX-TDA0143) and CSIF8 Card (KX-TDA0144)".
