Panasonic KX-TDA600

2.8.3 DPH2 Card (KX-TDA0162)
Function
2-port doorphone card
for 2 German-type doorphones and 2 door openers. To be mounted on the OPB3 card.

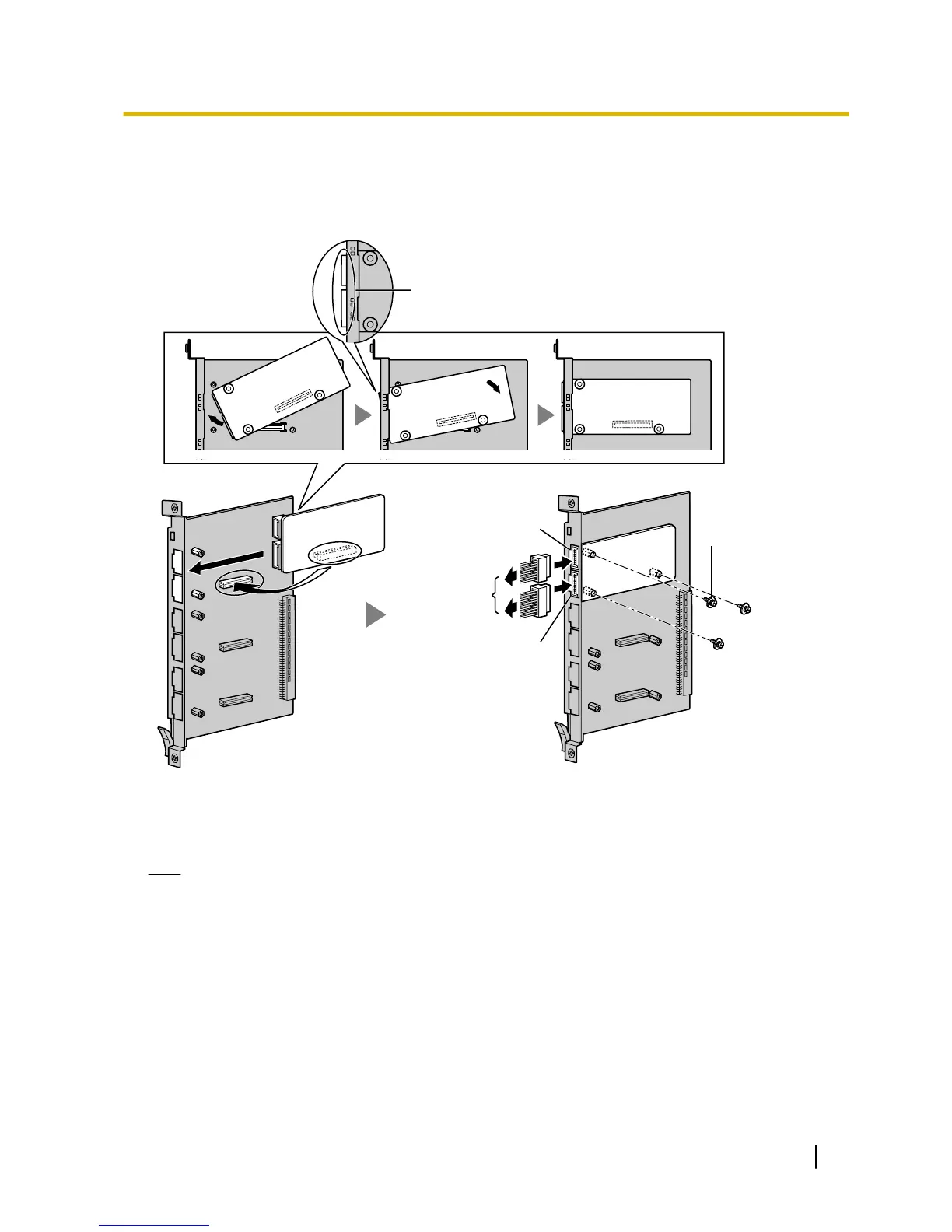

Screw
DPH2 Card
OPB3 Card
Fully insert the connectors through
the panel openings.
To doorphones/
door openers
10-pin
8-pin
Accessories and User-supplied Items
Accessories (included): Screws ´ 3, 10-pin terminal block ´ 1, 8-pin terminal block ´ 1
User-supplied (not included): Copper wire
Note
For details about
connection to doorphones and door openers, refer to "2.13.1 Connection of Doorphones,
Door Openers, External Sensors, and External Relays".
Installation Manual 181
