When loosening/tightening the screw, do not scratch the cabinet wall with the driver shaft.
Cabinet Wall

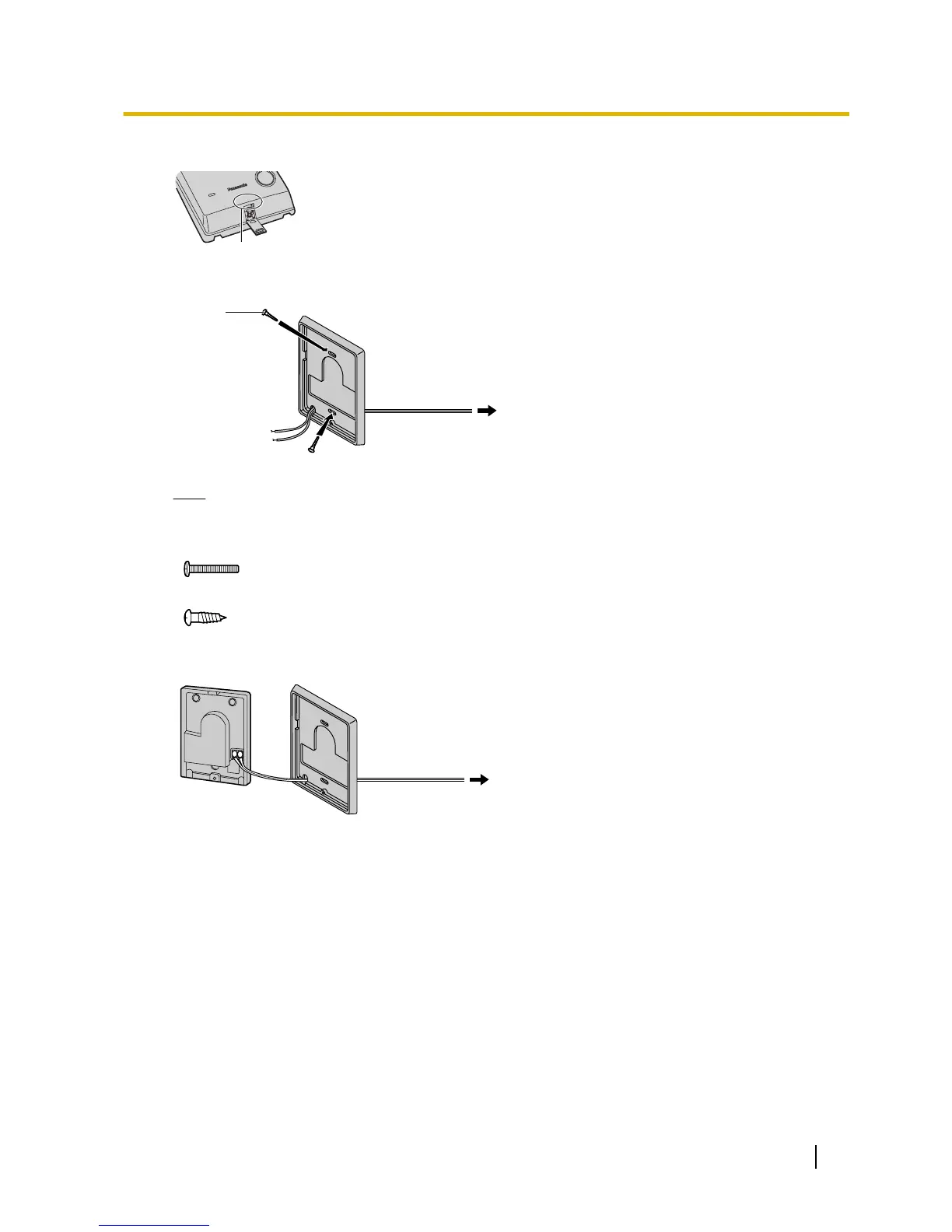

2. Pass the wires through the hole in the base cover, and attach the base cover to a wall using 2 screws.
Screw
To 8-pin terminal block
Note
Two kinds of
screws are included with the doorphone. Please choose the appropriate kind for your wall
type.
: when a doorphone plate has been fixed to the wall
: when you wish to install the doorphone directly onto the wall
3. Connect the wires to the screws located in the back cover.
To 8-pin terminal block
4. Re-attach the 2 halves and re-insert the screw.
