Location of Controls

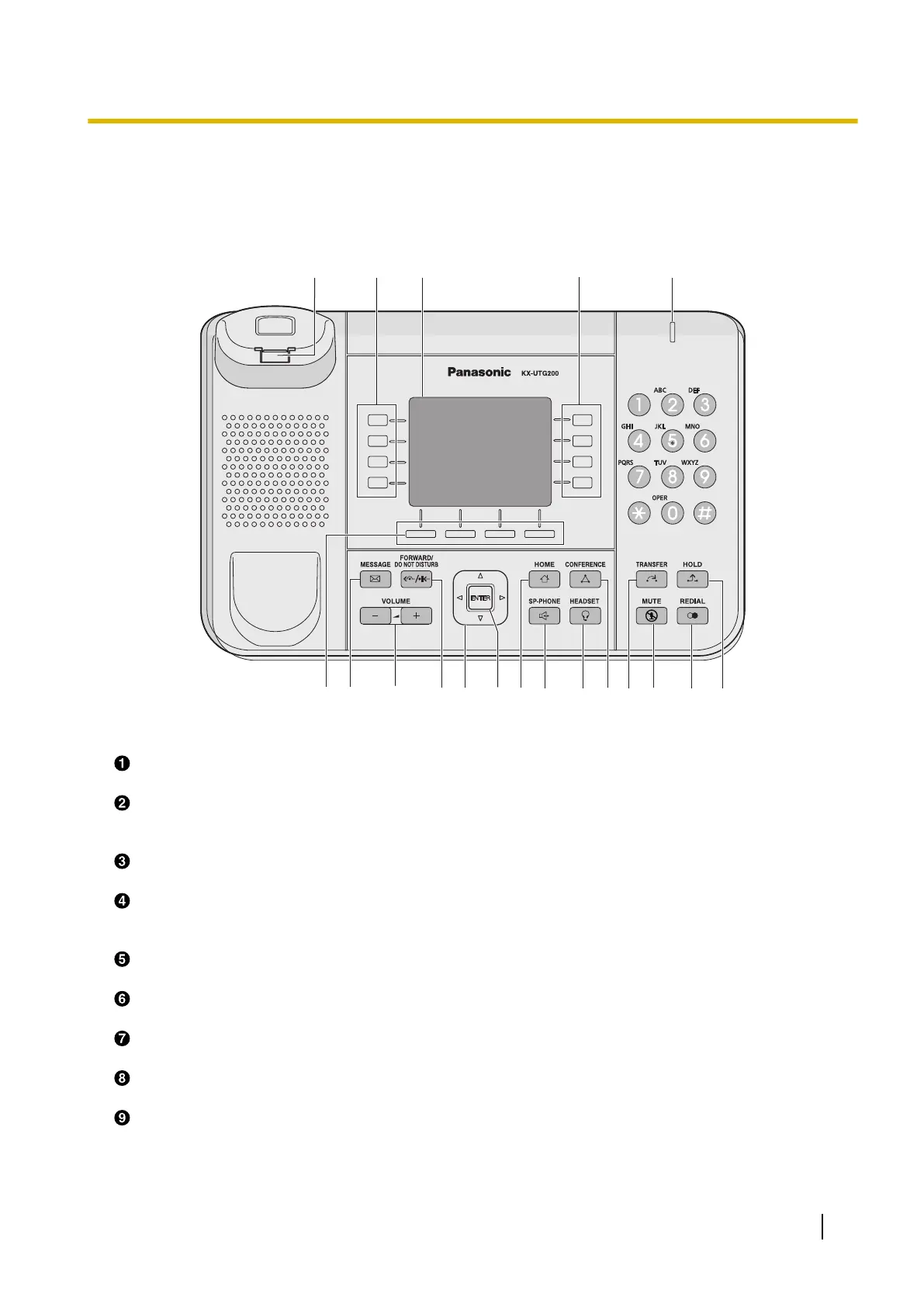

Front View
BABCD
EF G HI JKL MNOP Q R
Handset Hook
Keeps the handset stable when the unit is mounted on a wall.
Flexible Buttons/Flexible Button Lamps
Used to make or receive calls, or perform the feature that has been assigned to the button. The flexible
button lamp shows the status of each flexible button.
LCD (Liquid Crystal Display)
The unit is equipped with a 3.5-inch color LCD and LCD backlight.
Message/Ringer Lamp
When you receive a call, the lamp flashes red.
When someone has left you a message, the lamp stays on red.
Soft Buttons (S1 to S4)
S1 to S4 (located below the display) are used to select the item displayed on the bottom line of the display.
MESSAGE
Used to access your voice mailbox.
VOLUME
Used to adjust the volume.
FORWARD/DO NOT DISTURB
Used to set Call Forwarding or Do Not Disturb on your extension.
Navigator Key
Used to select desired items.
Document Version 2014-11 Operating Instructions 11
