Before Use

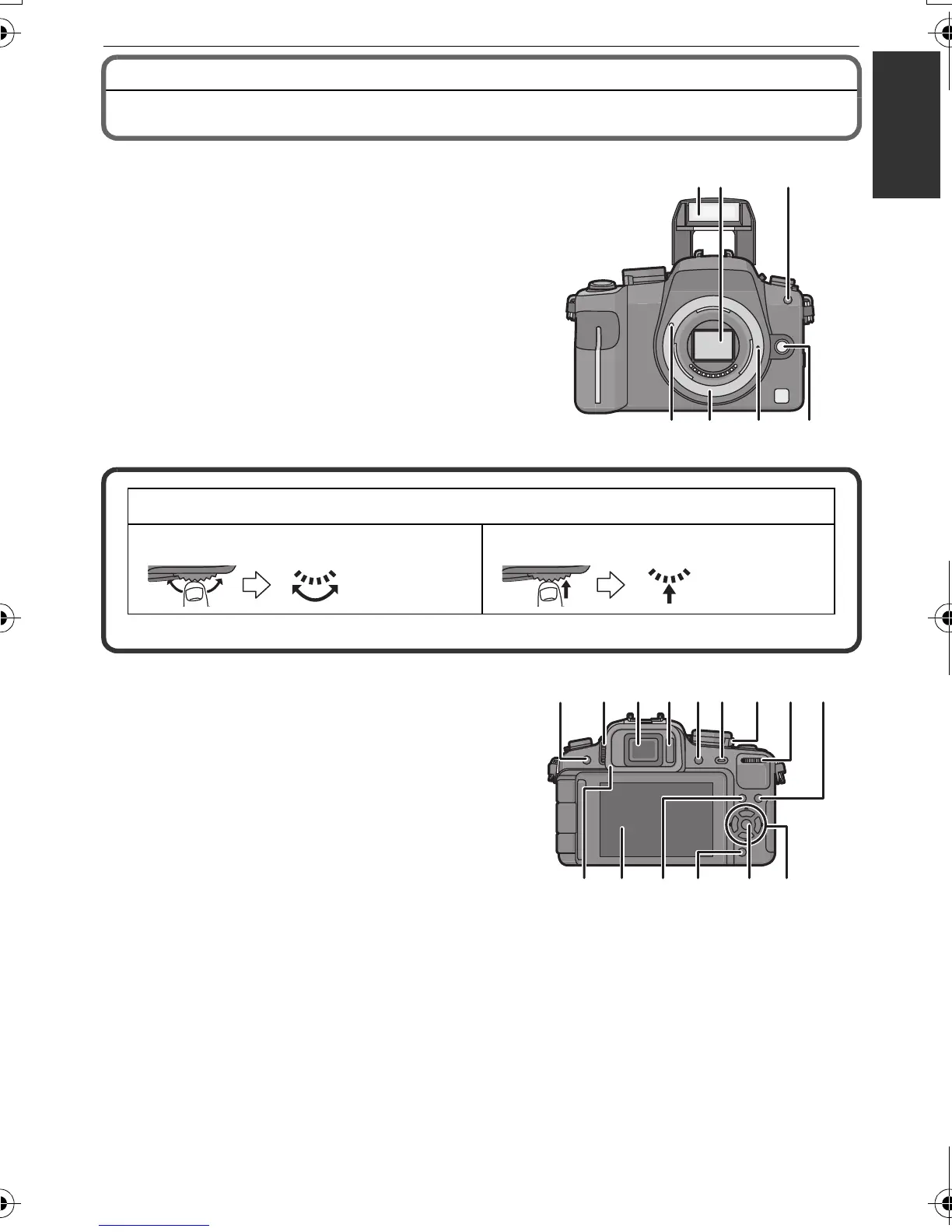

Names of the Components
∫ Camera body
1 Flash (P66)
2 Sensor
3 Self-timer indicator (P77)
AF Assist Lamp (P138)
4 Lens release button (P21)
5 Lens lock pin
6 Mount
7 Lens fitting mark (P20)
•
Refer to P17 for operation of the rear dial.
8 [LVF/LCD] button (P42)
9 Diopter adjustment dial (P42)
10 Viewfinder (P42, 64, 182)
11 Eye sensor (P42)
12 Playback button (P57, 61, 145, 162, 163,
165)
13 [AF/AE LOCK] button (P85)
14 Camera ON/OFF switch (P30)
15 Rear dial (P54, 58, 59, 72, 94, 95, 115, 147,
155)
16 [DISPLAY] button (P58, 63, 97)
17 Eye Cup (P186)
18 Touch panel/LCD monitor (P15, 40, 58, 63, 182)
19 [Q.MENU] button (P33, 48, 78, 83)
20 Delete button (P61)/
Preview button (P97)/
Flicker Reduction Function (P116)
21 [MENU/SET] button (P30)
22 Cursor buttons
3/ISO (P89)
2/Film Mode (P91)
4/Function button (P136)
Rear dial is described as follows in these operating instructions.
e.g.: Rotating left or right e.g.: Pressing the rear dial
10 12
18 19
89
11 13 14
22
15 16
17 20 21
