Before Use

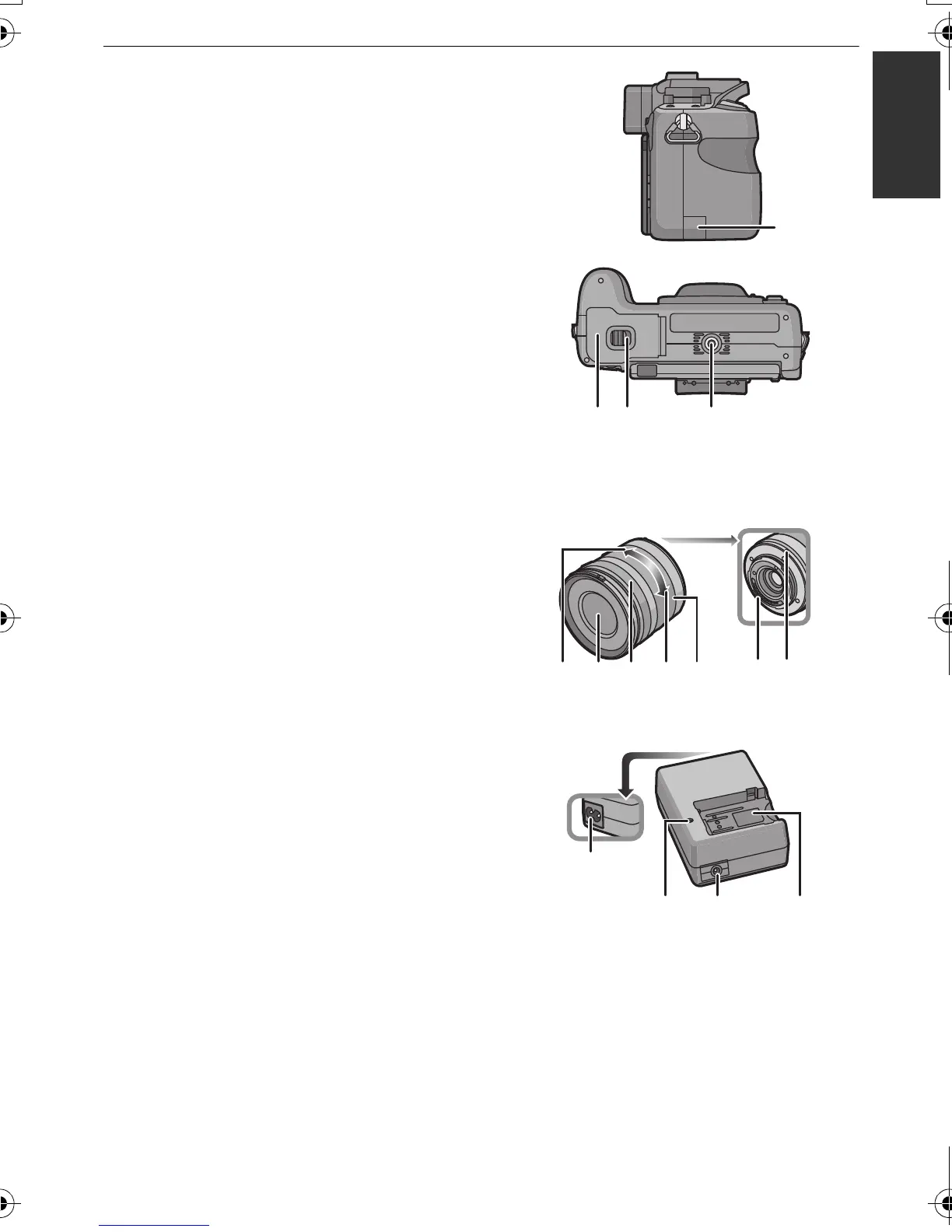

39 DC cable cover (P181)
40 Card/Battery door (P28)
41 Release lever (P28)
42 Tripod receptacle (P189)
•
When you use a tripod, make sure the tripod
is stable when the camera is attached to it.
∫ Lens
H-FS014042 (LUMIX G VARIO 14–42 mm/F3.5–5.6 ASPH./MEGA O.I.S.)
43 Tele
44 Lens surface
45 Focus ring (P83)
46 Wide
47 Zoom ring (P55)
48 Contact point
49 Lens fitting mark (P20)
∫ Battery charger/AC adaptor (P24, 181)
50 Power input socket [AC IN]
51 [CHARGE] indicator
52 Power output socket [DC OUT]
53 Battery holder
39
424140
43 44 45 46 47 48 49

5251
50
53
