AC
Power
UPS
USB Cable
USB
Port
AC Cable
1. AC power is lost.
3. The UPS notifies that AC power is
lost and it’s remaining battery life.
4. KX-NS1000 executes
self shutdown at pre-
programmed battery threshold.
2. The UPS supplies power to
the PBX (Using its battery).
NS1000 Power requirements (from the nameplate ratings)
Peak – 138VA (Watts)
RMS – 98VA (Watts)
RS232C is not supported for UPS
1.2 System Shutdown with UPS
The UPS Provides a Safe Shutdown Process during AC Power Failure
Because the NS1000 system uses a Linux Based OS, the KX-NS1000 must be powered down using the
Shutdown process to avoid possible damage to the systems File Structure.

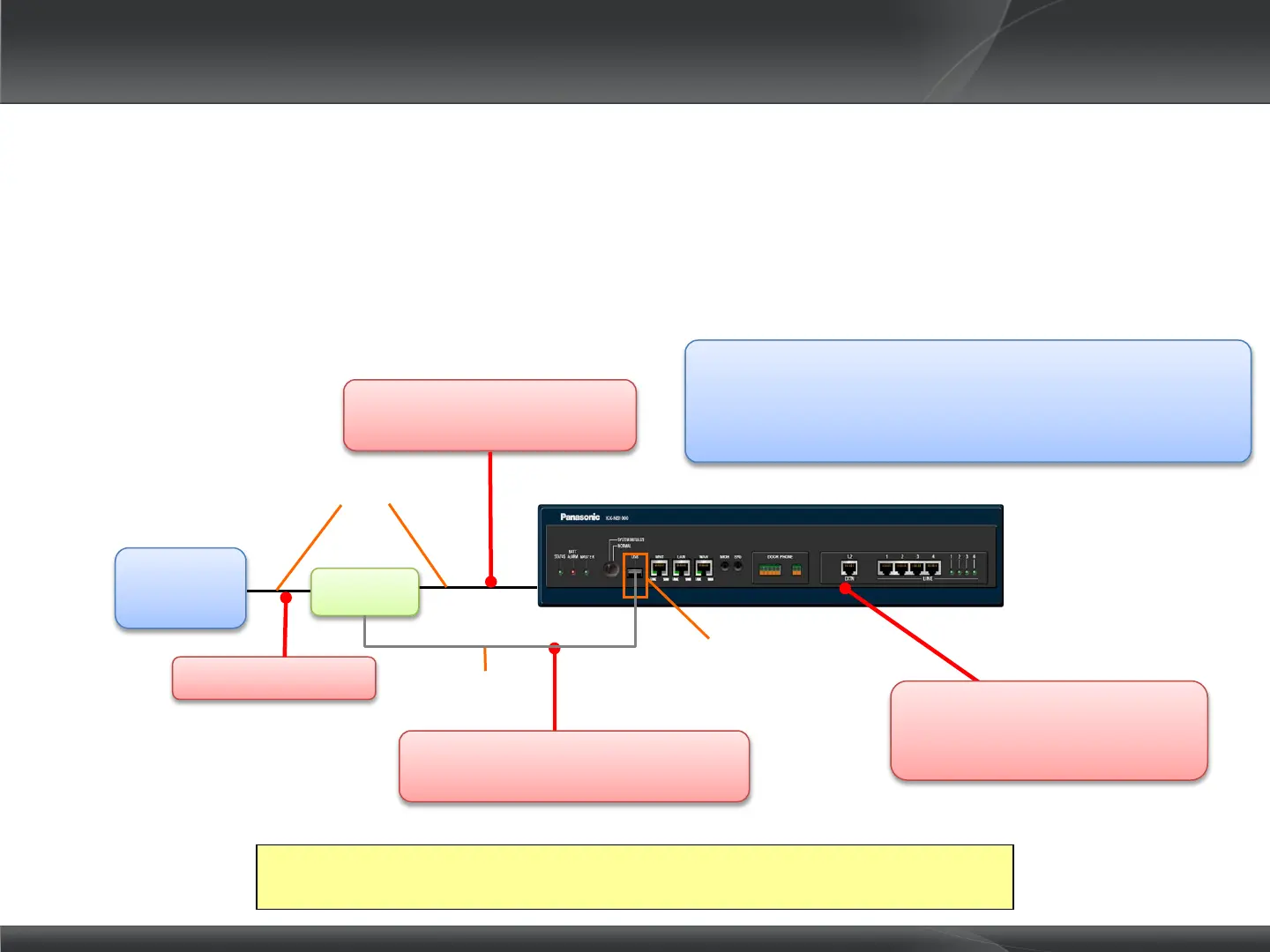

UPS Connection diagram and automatic shutdown process
NB: When NS1000 is ‘Shutdown’, it will not power back on automatically when
power is restored – the AC Switch needs to be switched OFF/ON
