About your projector
26 - ENGLISH
Preparation

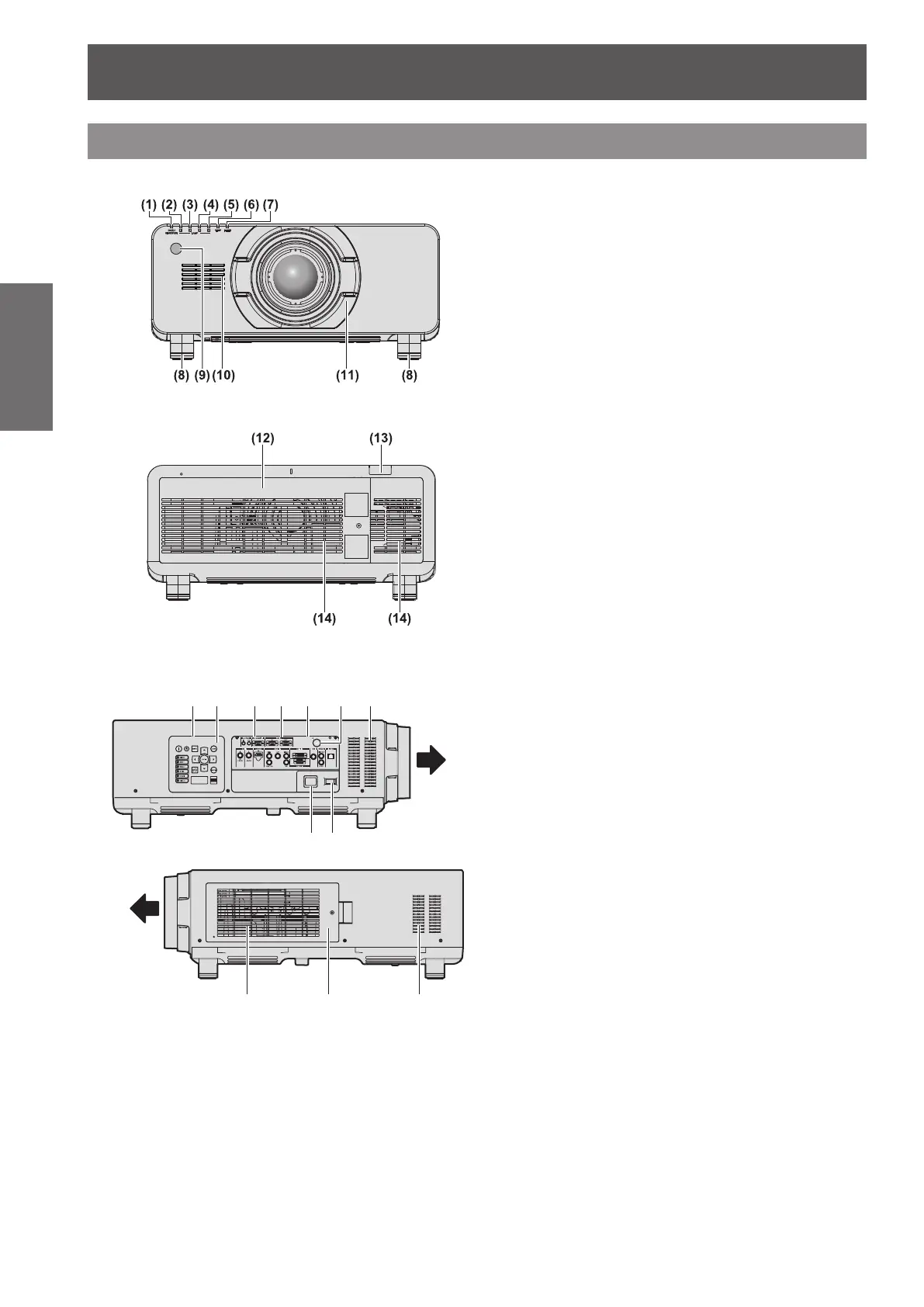

Projector body
■
Front
■
Rear
■
Side
 
   
)URQW
 
)URQW
(1) Power indicator <ON (G)/STANDBY (R)>
The power indicator displays power status.
(2) Lamp indicator <LAMP1>
Displays the status of lamp 1.
(3) Lamp indicator <LAMP2>
Displays the status of lamp 2.
(4) Lamp indicator <LAMP3>
Displays the status of lamp 3.
(5) Lamp indicator <LAMP4>
Displays the status of lamp 4.
(6) Temperature indicator <TEMP>
Displays the internal temperature status.
(7) Filter indicator <FILTER>
Displays the status of the air lter unit.
(8) Adjustable feet
Adjusts the projection angle.
(9) Remote control signal receiver (front)
(10) Air intake port
(11) Projection lens cover
(12) Lamp unit cover (

page 152)
(13) Remote control signal receiver (rear)
(14) Air exhaust port
(15) Control panel and connecting terminals lights
(16) Control panel (

page 27)
(17) Connecting terminals (

page 28)
(18) Security slot
This security slot is compatible with the Kensington
security cables.
(19) <AC IN> terminal
Connect the supplied power cord.
(20) <MAIN POWER> switch
Turns on/off the main power.
(21) Air lter cover
The air lter unit is inside. (

page 148)
