Setting up
ENGLISH - 31
Getting Started
Note
z
During portrait setting, the on-screen menu will be displayed horizontally.
Parts for ceiling mount (optional)
You can install the projector on the ceiling using the optional ceiling mount bracket (Model No.: ET-PKD510H (for
high ceilings), or ET-PKD510S (for low ceilings).
z
Use only the ceiling mount brackets specied for this projector.
z
Refer to the installation manual for the ceiling mount bracket when installing the bracket and the projector.
Attention
z
To ensure projector performance and security, installation of the ceiling mount bracket must be carried out by
your dealer or a qualied technician.

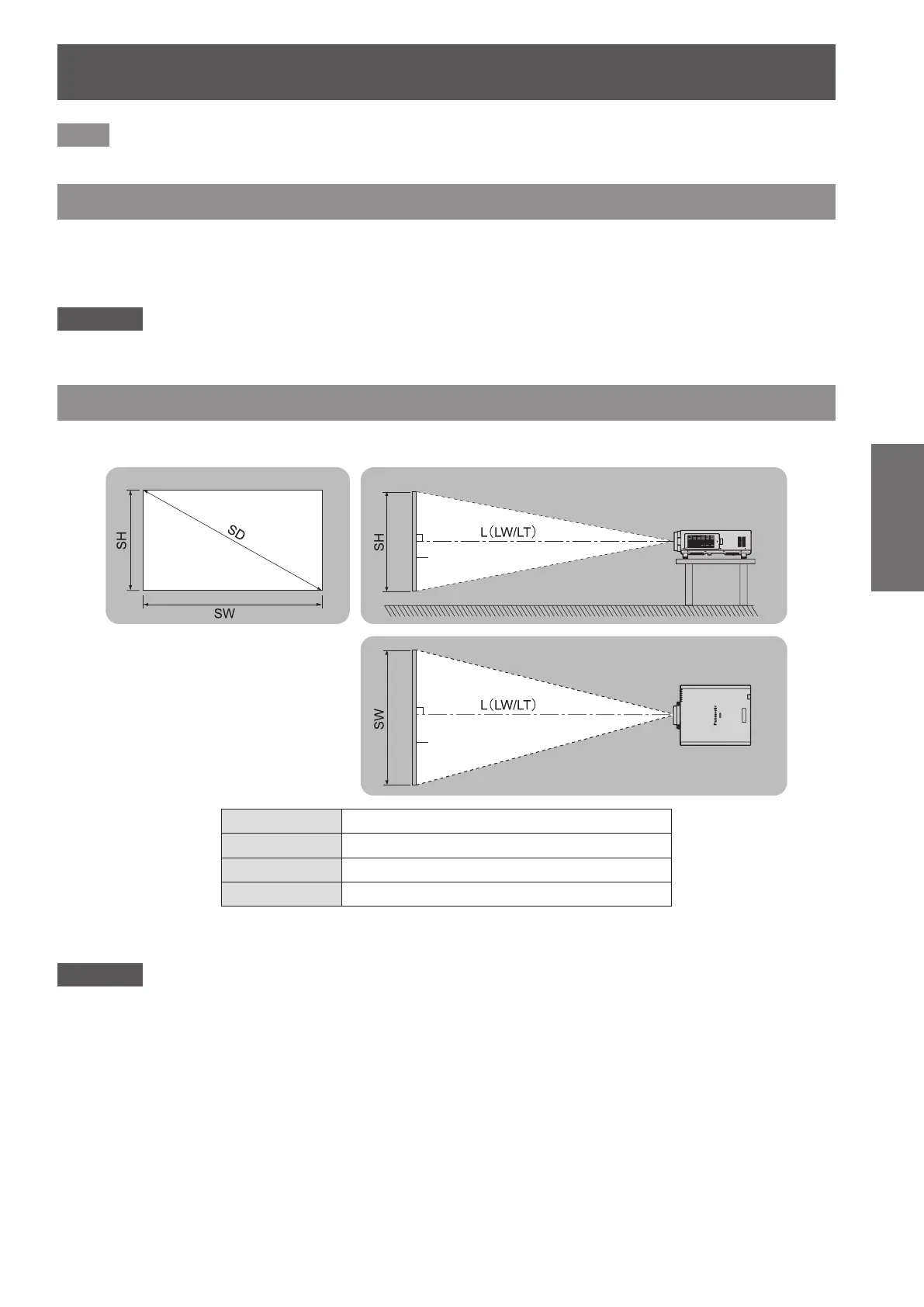

Screen size and throw distance
Refer to the following gures and table describing projection distances to install the projector. Image size and
image position can be adjusted in accordance with the screen size and screen position.
Projection screen
Screen
Screen
L (LW/LT)
*1
Projection distance (m)
SH Image height (m)
SW Image width (m)
SD Image diagonal size (m)
*1: LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used
Attention
z
Before installing, read “Precautions for use” (

pages 15 to 21).
z
Do not use the projector and the high-powered laser equipment in the same room.
Hitting of a laser beam on to the lens can damage the DLP chips.
