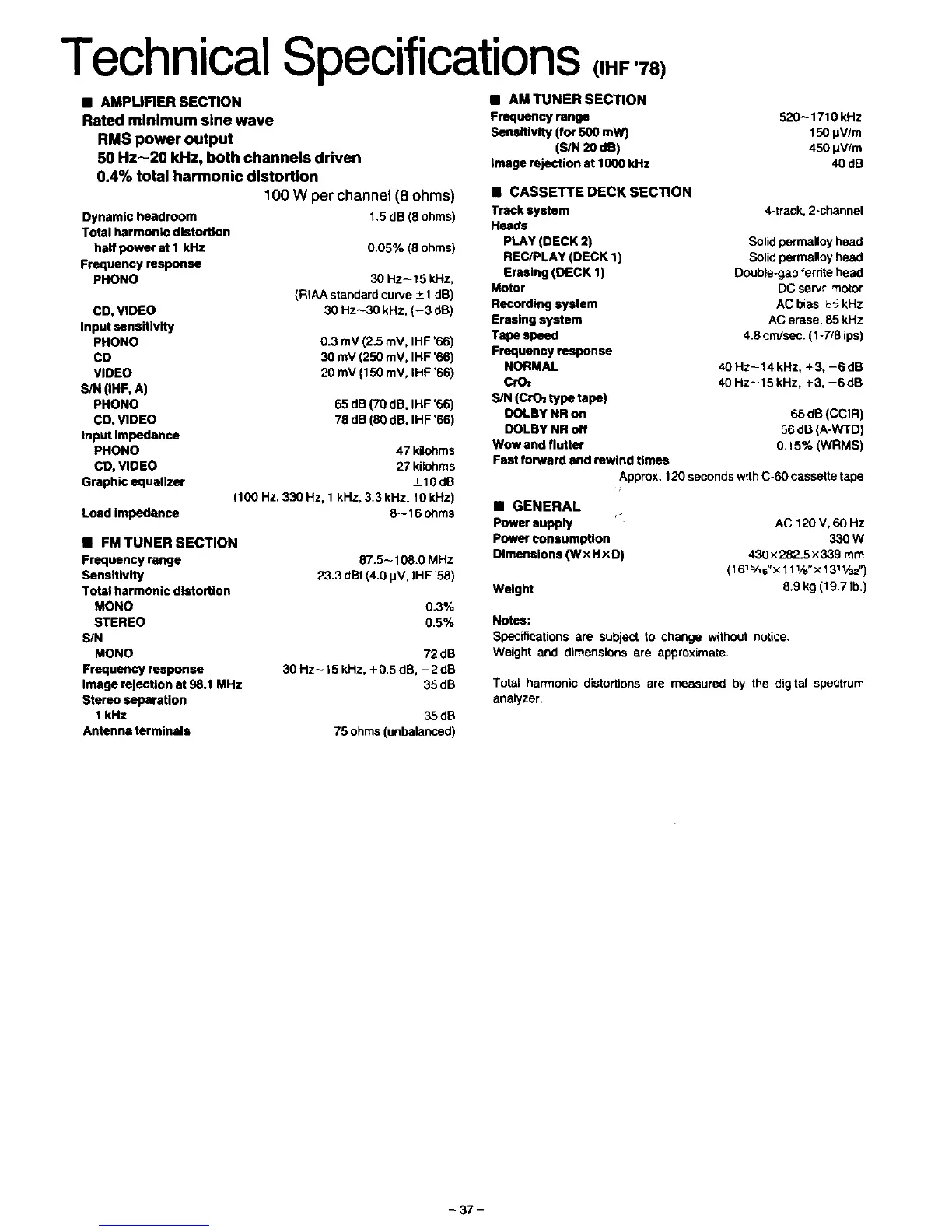

Technical Specifications ,,..,..)
• AMPLIFIERSECTION
Rated minimum sine wave
RMS power output
50 Hz-20 kHz, both channels driven
0.4% total harmonic distortion
100 W per channel (8 ohms)
Dynamic headroom
Total harmonic distortion
half power at I kHz
Frequency response
PHONO
CD, VIDEO
Input sensitivity
PHONO
CD
VIDEO
S/N (IHF, A)
PHONO
CD, VIDEO
input impedance
PHONO
CD, VIDEO
Graphic equalizer
Loadlmpedance
t.5 dB (8 ohms)
0.05% (8 ohms)
30 Hz--15 kHz,
(RIAA standard curve +_1 dB)
30 Hz_30 kHz, (-3 dB)
0.3 mV (2.5 mV, IHF '66)
30 mV (250 mV, IHF '66)
20 mV {150 mV, IHF '66)
65 dB (70 dB, IHF '66)
78 dB (80 dB, IHF '66)
47 kilohms
27 kilohms
_+10dE
(100 Hz, 330 Hz, 1 kHz, 3.3 kHz, 10 kHz)
8--16 ohms
• FMTUNER SECTION
Frequency range
Sensitivity
Total harmonic distortion
MONO
STEREO
SIN
MONO
Frequency response
Image rejection at 98.1 MHz
Stereo separation
1 kHz
Antenna terminals
87.5_ 108.0 MHz
23.3 dBf (4.0 IJV, IHF '58)
0.3%
0.5%
72dB
30 Hz--15 kHz, + 0.5 dB, - 2 dE
35 dB
35dE
75 ohms (unbalanced)
• AM TUNER SECTION
Frequency range
Sensitivity (for 500 mW)
(S/N 20 dB)
image rejection at 1000 kHz
• CASSETTE DECK SECTION
Track system
Heads
PLAY (DECK 2)
REC/PLAY (DECK 1)
Erasing (DECK 1)
Motor
Recording system
Erasing system
Tape speed
Frequency response
NORMAL
CrO=
S/N (CrO= type tape)
DOLBY NR on
DOLBY NR off
Wow and flutter
Fast forward and rewind times
520-- 1710 kHz
150 gV/m
450 IJV/m
40dB
4-track, 2-channel
Solid permalloy head
Solid permslloy head
Double-gap ferrite head
DO serv¢ "notor
AC bias, b5 kHz
AC erase, 85 kHz
4.8 cm/sec. (1-7/8 ips)
40 Hz-14 kHz, -_3, -6 dB
40 Hz_l 5 kHz, +3, -6 dB
65 dS (CCIR)
56 dB (A-WTD)
0.15% (WRMS)
Approx, 120 seconds with C-60 cassette tape
AC 120 V,60 Hz
330W
430x282.5x339 mm
(161s/16"x111/a"x1311/_2")
0.9 kg(19.7 lb,)
• GENERAL
Power supply
Power consumption
Dimensions {WXHxD)
Weight
Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
Total harmonic distortions are measured by the digital spectrum
analyzer.
