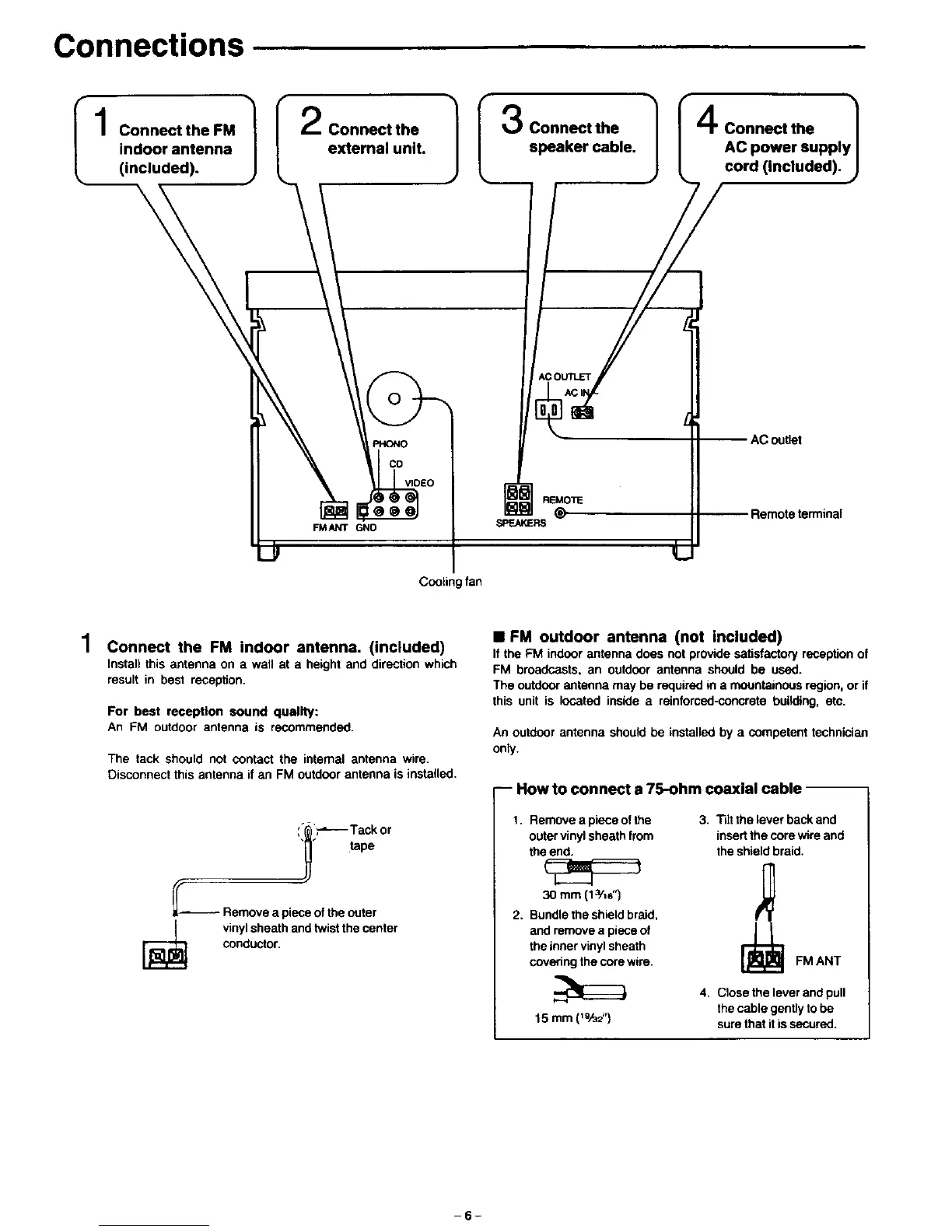

Connections
IlconnethI 2 Â3Con--tth°Conn..
indoor antenna external unit. speaker cable. AC power suppl!
(included). cord (included).
\
PHOflO
CO
FMANT GND
REMOTE
@
SPEAKERS
Cooling fan
1
Connect the FM indoor antenna. (included)
Install this antenna on a wall at a height and direction which
result in best reception.
For best reception sound quality:
An FM outdoor antenna is recommended.
The tack should not contact the internal antenna wire.
Disconnect this antenna if an FM outdoor antenna is installed.
','_','-"---- Tack or
"_" tape
_--_ Remove a piece of the outer
r_ vinyl sheath and twist the canter
conductor.
• FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception of
FM broadcasts, an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region, or if
this unit is located inside a reinforced-concrete building, etc.
An outdoor antenna should be installed by a competent technician
only.
-- How to connect a 75-ohm coaxial cable
1. Remove a piece of the
outer vinyl sheath from
the end.
30 mm (13/_e")
2. Bundle the shield braid,
and remove a piece of
the inner vinyl sheath
covering the core wire.
15 mm (1%2")
3. "nitthe lever back and
insertthe core wire and
the shield braid.
r_ FM ANT
4. Close the lever and pull
the cable gently to be
sure that itis secured.
-6-
