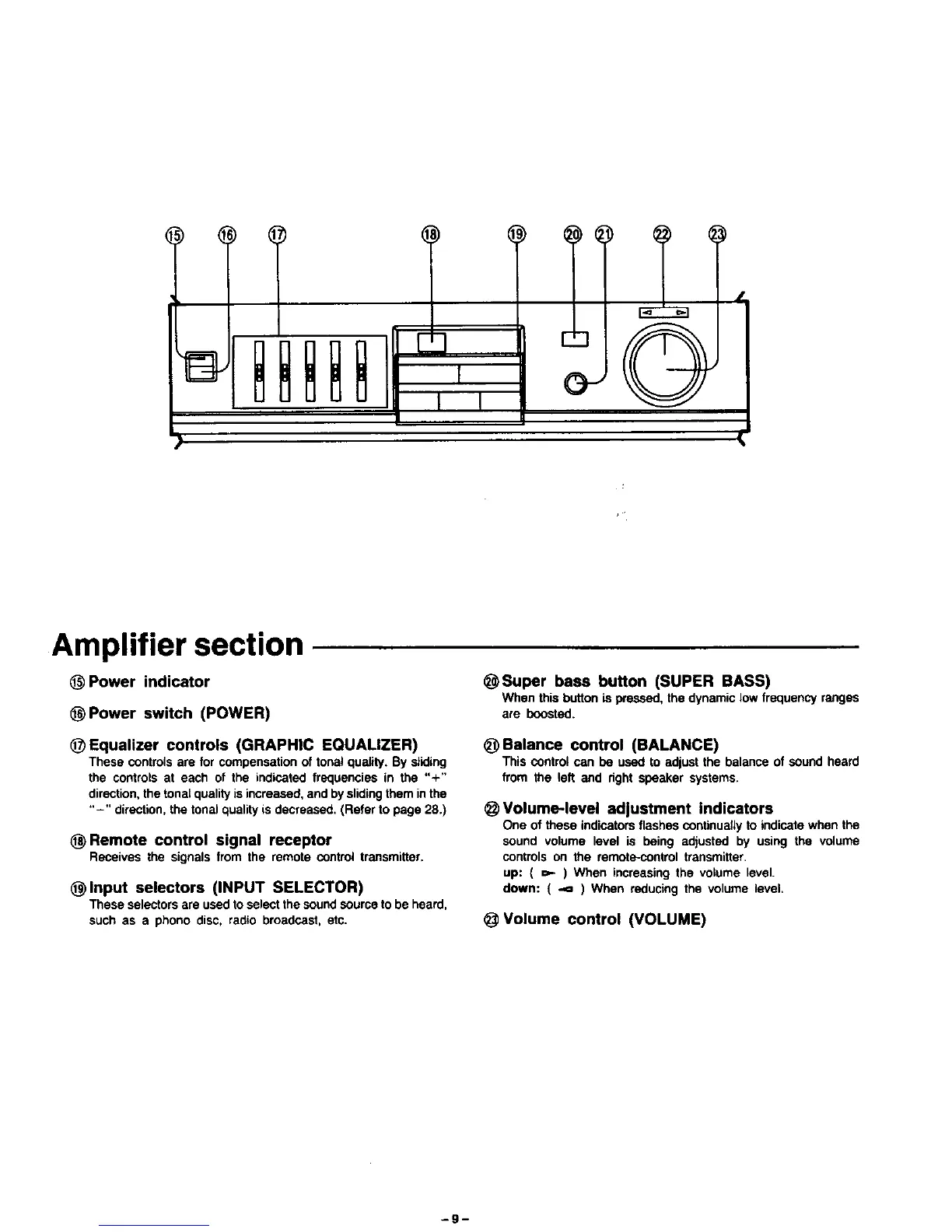

Amplifier section
(_ Power indicator
_) Power switch (POWER)
Equalizer controls (GRAPHIC EQUALIZER)
These controls are for compensation of tonal quality. By s_iding
the controls at each of the indicated frequencies in the "+"
direction, the tonal quality is increased, and by sliding them in the
"-" direction, the tonal quality is decreased, (Refer to page 28.)
Remote control signal receptor
Receivesthe signals from the remote control transmitter,
_)lnput selectors (INPUT SELECTOR)
These selectorsare usedtoselectthesoundsourcetobe heard,
such as a phono disc, radio broadcast,etc.
_Super bass button (SUPER BASS)
When thisbuttonis pressed,the dynamiclowfrequencyranges
are boosted.
(_ Balance control (BALANCE)
This controlcan be used to adjust the balanceof soundheard
from the left and right speaker systems.
Volume-level adjustment indicators
One of these indicators flashes conUnuafly to indicate when the
sound volume level is being adiusted by using the volume
controls on the remote-control transmitter.
up: ( €-- ) When increasing the volume level.
down: ( _ ) When reducing the volume level
Volume control (VOLUME)
-9-
