Panasonic SA-PM31PC - Disassembly of Side Panel L & R; Disassembly of Top Cabinet Unit; Disassembly of Deck P.C.B. and Tape Eject

9.2. Disassembly of Side Panel L &
R

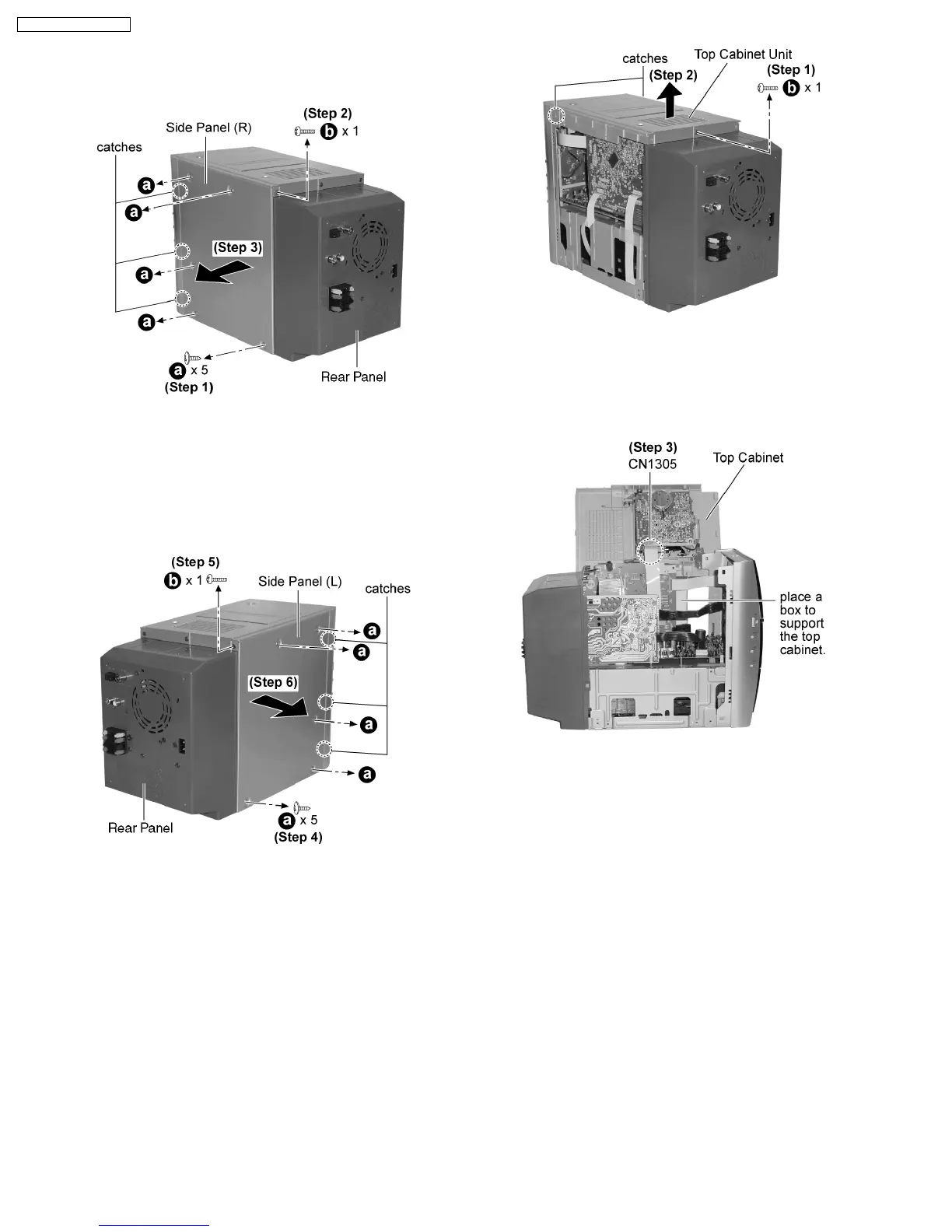

Step 1 : Remove 5 screws.
Step 2 : Remove 1 screw.
Step 3 : Remove the side panel as arrow shown (Be careful of
the catches).
Step 4 : Remove 5 screws.
Step 5 : Remove 1 screw.
Step 6 : Remove the side panel as arrow shown (Be careful of
the catches).
9.3. Disassembly of Top Cabinet
Unit
· Follow the (Step 1) - (Step 6) of Item 9.2.
Step 1 : Remove 1 screw.
Step 2 : Lift up the top Cabinet as arrow shown (be careful of
the catches).
Step 3 : Place the top cabinet as shown and detach the
connector CN1305.
9.4. Disassembly of Deck P.C.B.
and Tape Eject P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
