Panasonic SA-PM31PC - Disassembly of Transformer; Disassembly of Tuner Pack

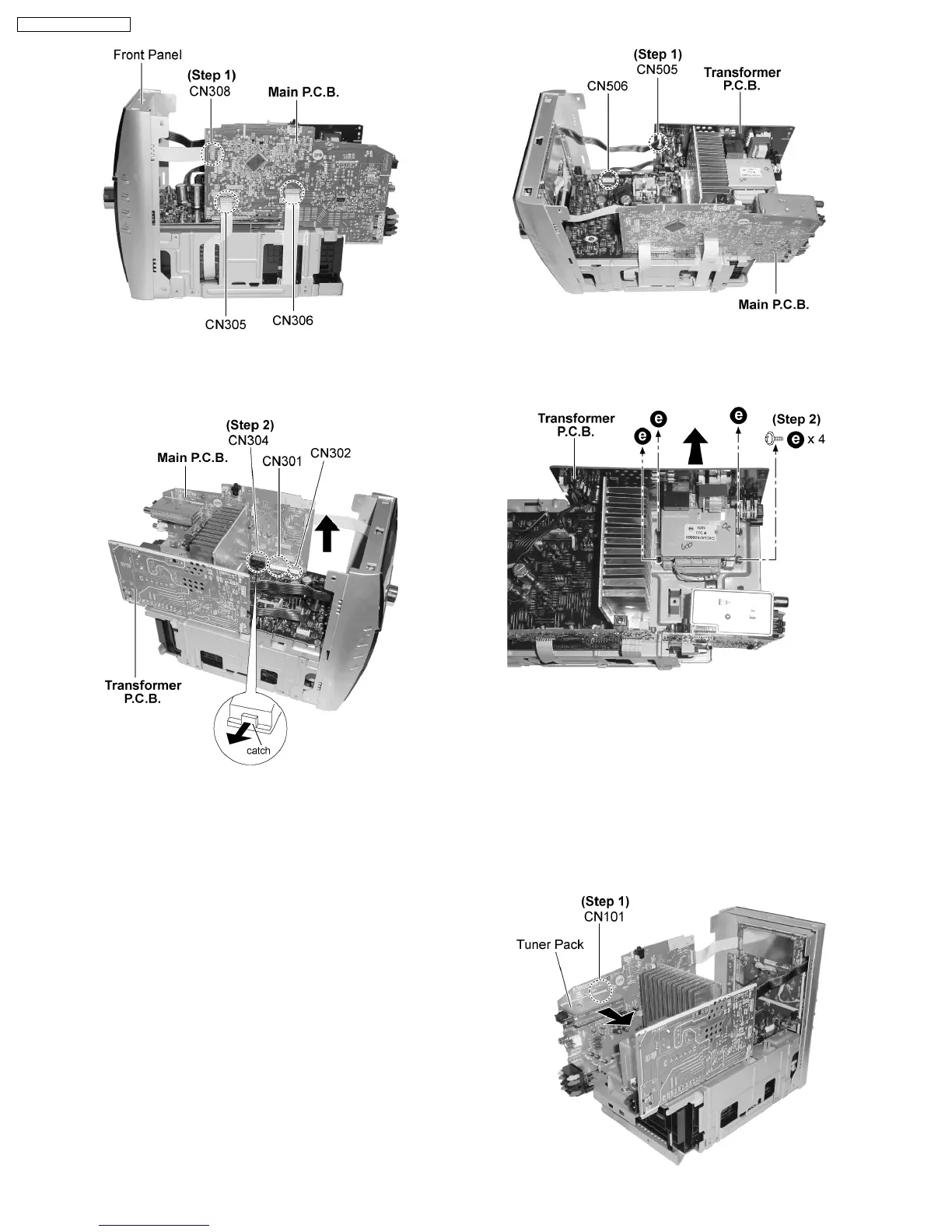

Step 1 : Detach the connectors CN308, CN305 and CN306 .
Step 2 : Detach the connectors CN304 (pull the catch as arrow
shown), CN301 and CN302 and pull out the Main P.C.B as
arrow shown.
9.10. Disassembly of Transformer
P.C.B.
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
· Follow the (Step 1) - (Step 3) of Item 9.8.
Step 1 : Detach the connectors CN505 and CN506.
Step 2 : Remove 4 screws and pull out the Transformer P.C.B.
as arrow shown.
9.11. Disassembly of Tuner Pack
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
· Follow the (Step 1) - (Step 3) of Item 9.8.
