Panasonic SA-PM31PC - Procedure for Removing CD Loading Mechanism; CR16 Mechanism Disassembly Procedure

1. Turn off by pressing power SW in the body.
2. Unplug AC power cord after the indication of [GOOD-BYE],
then disassemble the body.
9.24.1. Gear for servicing information
· This unit has a gear which used for checking items
(open/close of disc tray, up/down operation of traverse unit
by manually) when servicing. (For gear information, that is
described on the items for disassembly procedures.)
· For preparation of gear (for servicing), perform the
procedures as follows.
· In case of re-servicing the same set, the “ gear for servicing”
3. Disassemble the body, and take out CD loading
mechanism.
4. Perform disassembly according to the following procedure
for disassembly.
may be took off because it had been used. So, the “gear for
servicing” must be stored.
1. Remove the gear attached to top cover of CD loading
mechanism.

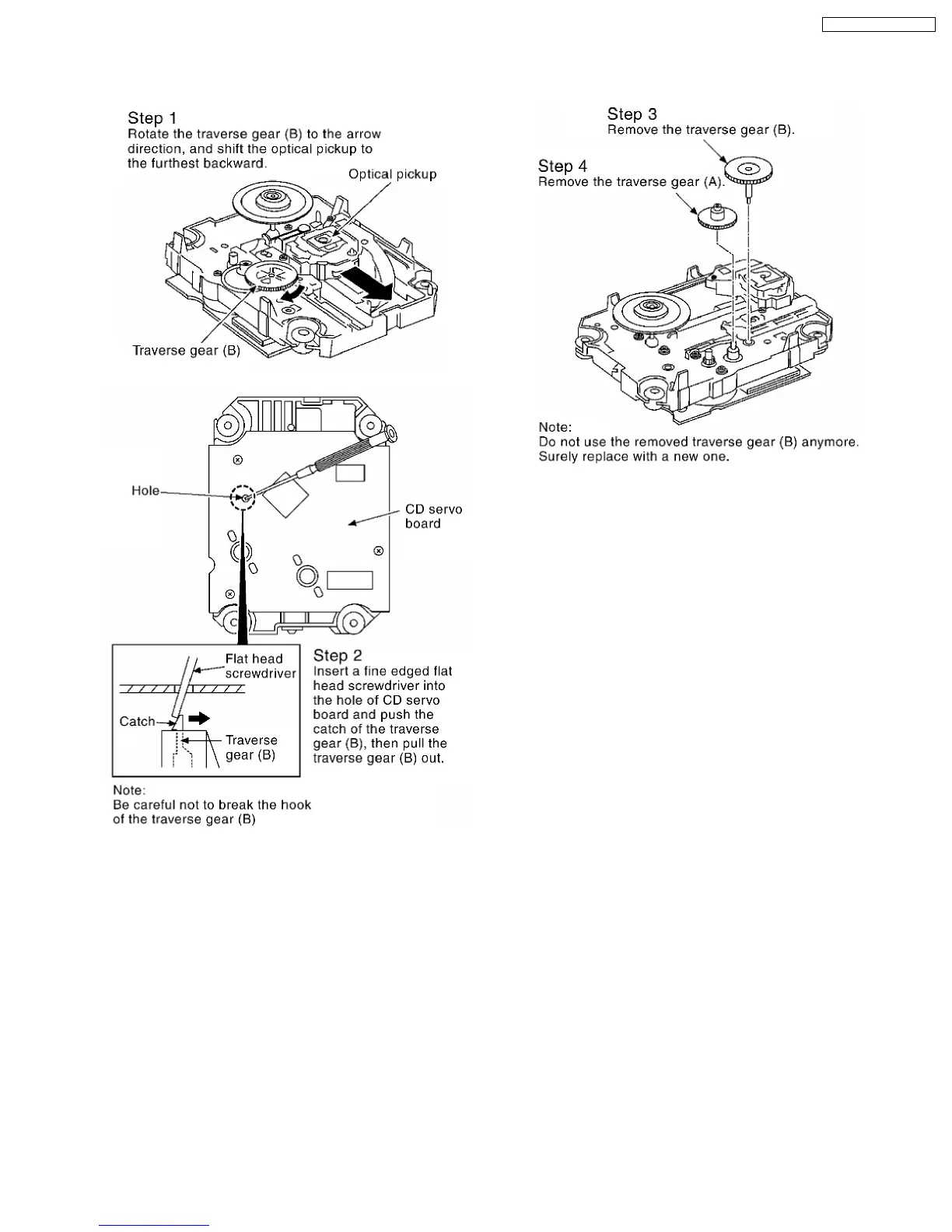

· Follow the (Step 1) - (Step 5) of Item 9.13.
· Follow the (Step 1) - (Step 2) of Item 9.20.
· Follow the (Step 1) - (Step 12) of Item 9.21.
9.23. Procedure for removing CD loading mechanism
9.24. CR16 mechanism disassembly procedure
