Panasonic SA-PM31PC - Disassembly of Power P.C.B; Disassembly of CR16 Mechanism

Step 1 : Detach the connector CN101 and remove the tuner
pack as arrow shown.
9.12. Disassembly of Power P.C.B
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
· Follow the (Step 1) - (Step 4) of Item 9.5.
· Follow the (Step 1) - (Step 3) of Item 9.8.
· Follow the (Step 1) - (Step 2) of Item 9.9.
· Follow the (Step 1) - (Step 2) of Item 9.10.

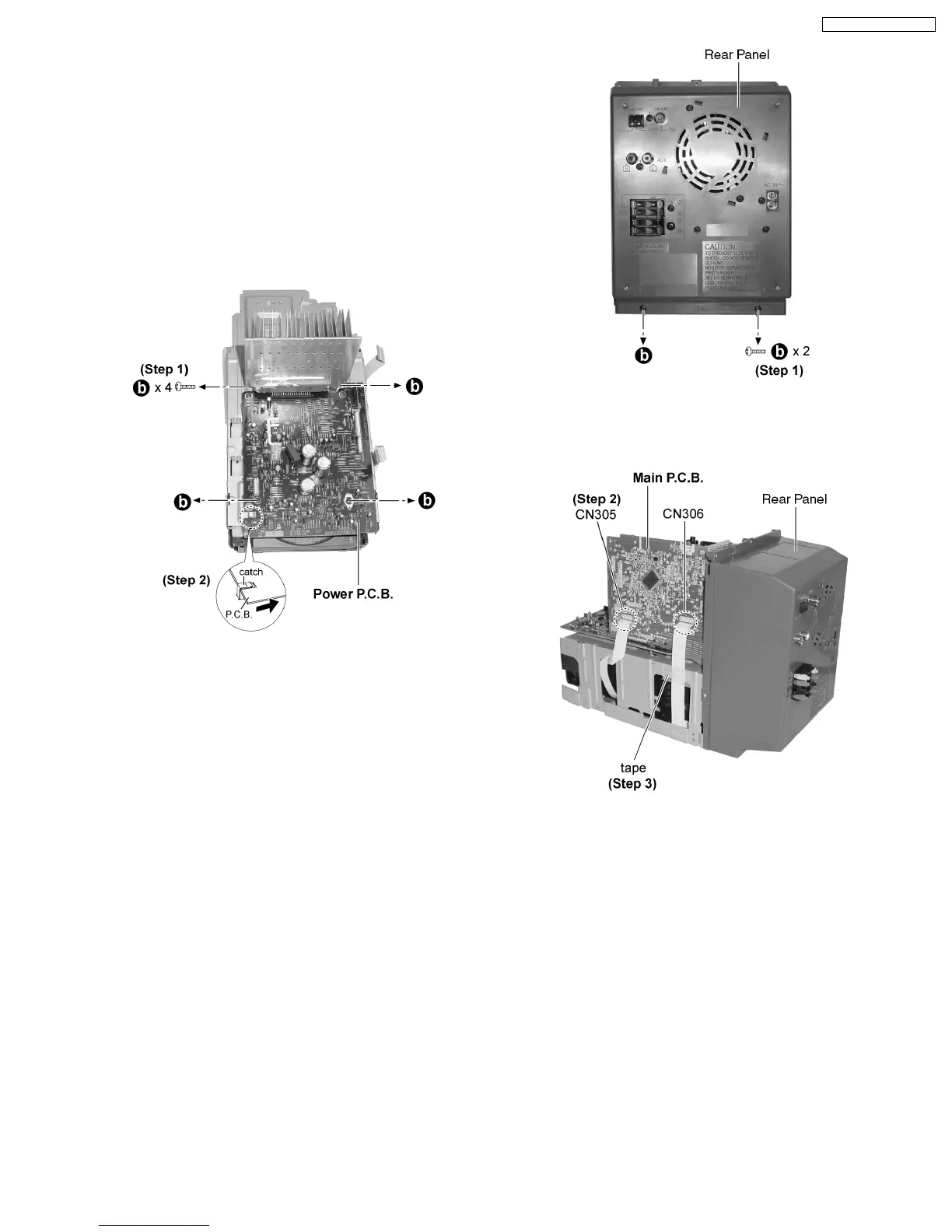

Step 1 : Remove 4 screws.
Step 2 : Remove the Power P.C.B. as arrow shown (be careful
of the catch).
9.13. Disassembly of CR16
Mechanism
· Follow the (Step 1) - (Step 6) of Item 9.2.
· Follow the (Step 1) - (Step 3) of Item 9.3.
· Follow the (Step 1) - (Step 4) of Item 9.5.
Step 1 : Remove 2 screws.
Step 2 : Detach the connectors CN305 and CN306.
Step 3 : Remove the tape which used to secure the FFC
connectors.
