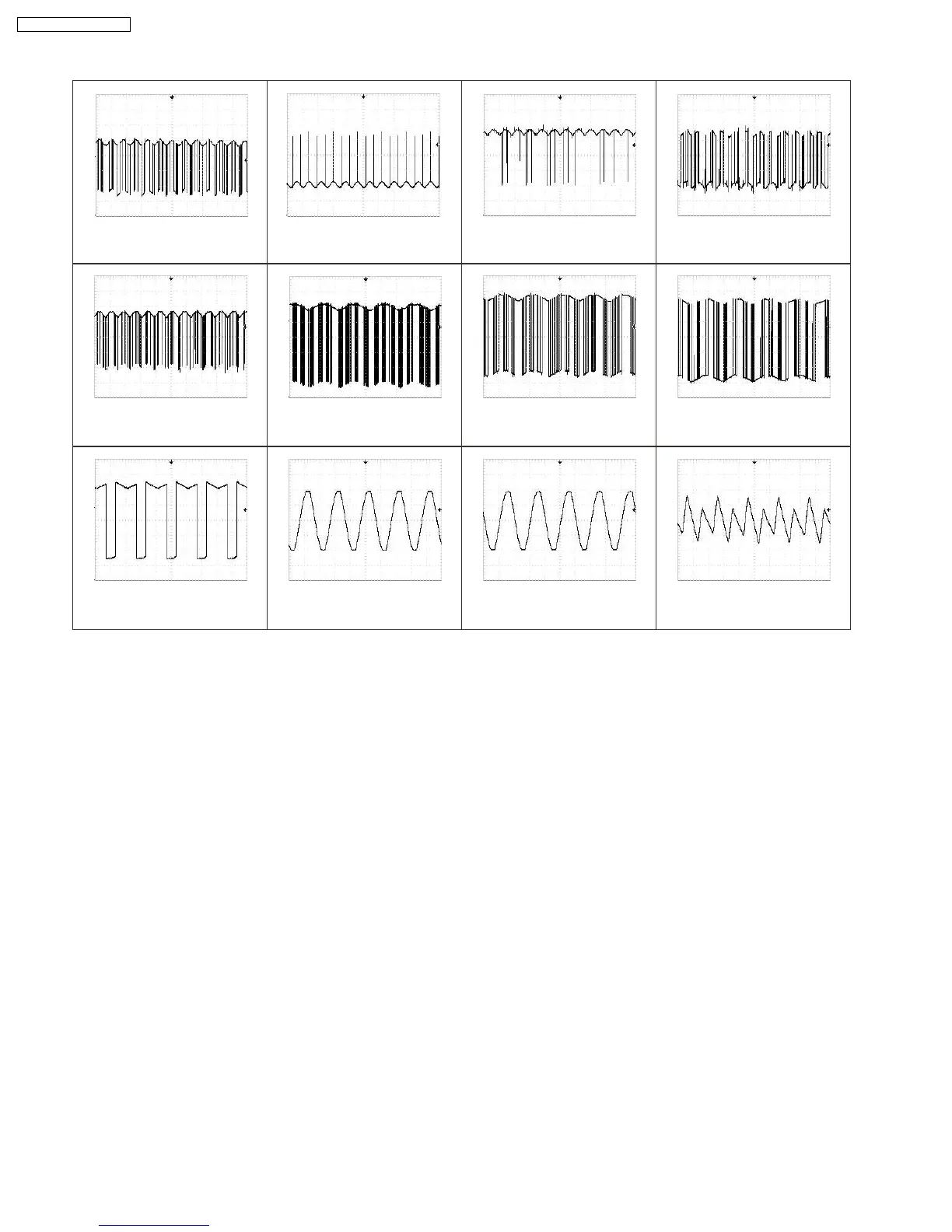

14.1. Waveform
CN306 PIN 4
CD PLAY
3.84Vp-p (25msec.div)
CN306 PIN 5
CD PLAY
3.64Vp-p (25msec.div)
CN306 PIN 7
CD PLAY
4.48Vp-p (25msec.div)
CN306 PIN 8
CD PLAY
4.12Vp-p (25msec.div)
CN308 PIN 10
CD PLAY
5.68Vp-p (10msec.div)
CN308 PIN 11
CD PLAY
5.56Vp-p (10msec.div)
CN308 PIN 12
CD PLAY
5.60Vp-p (10msec.div)
CN308 PIN 15
CD PLAY
5.12Vp-p (10msec.div)
CN506 PIN 1
CD PLAY
78.4Vp-p (10msec.div)
CN506 PIN 2
CD PLAY
78.4Vp-p (10msec.div)
CN506 PIN 6
CD PLAY
1.56Vp-p (10msec.div)
CN306 PIN 6
CD PLAY
4.04Vp-p (25msec.div)
